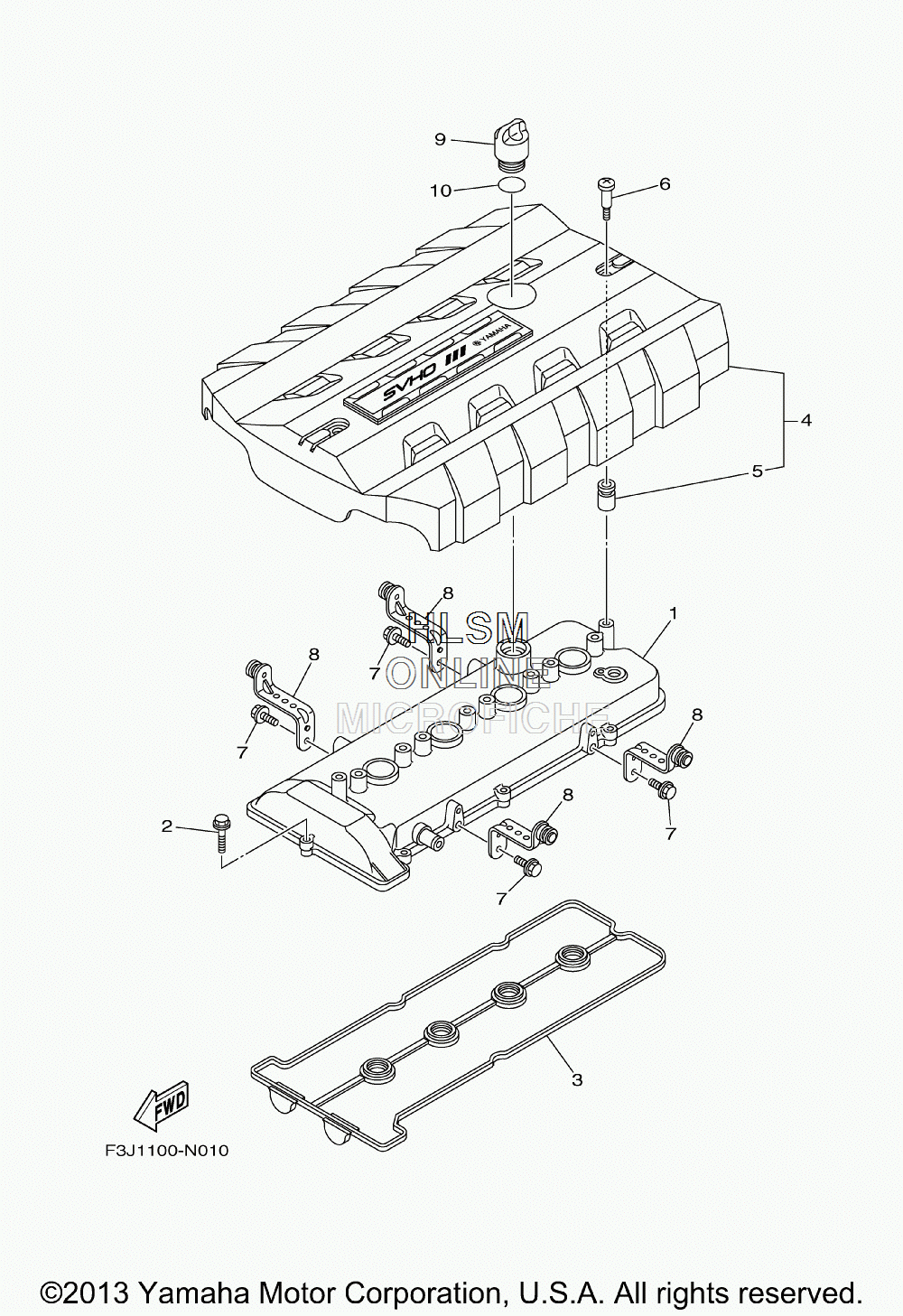

CYLINDER HEAD COVER ASSY. для Yamaha FX SVHO - 2014 года выпуска`
-
№АртикулНазвание
-
16S5-11191-20-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
290105-06028-00 BOLT, FLANGEBOLT, FLANGE
-
36BH-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
46ET-E110M-00-00 COVER ASSY 1COVER ASSY 1
-
56S5-E1328-00-00 ...GROMMET, ANODE...GROMMET, ANODE
-
66S5-E118E-00-00 BOLT, COVER MOUNTINGBOLT, COVER MOUNTING
-
795814-06012-00 BOLT, FLANGEBOLT, FLANGE
-
86S5-11941-10-00 STAYSTAY
-
96S5-15363-00-00 PLUG, OILPLUG, OIL
-
1093210-24M79-00 O-RINGO-RING
