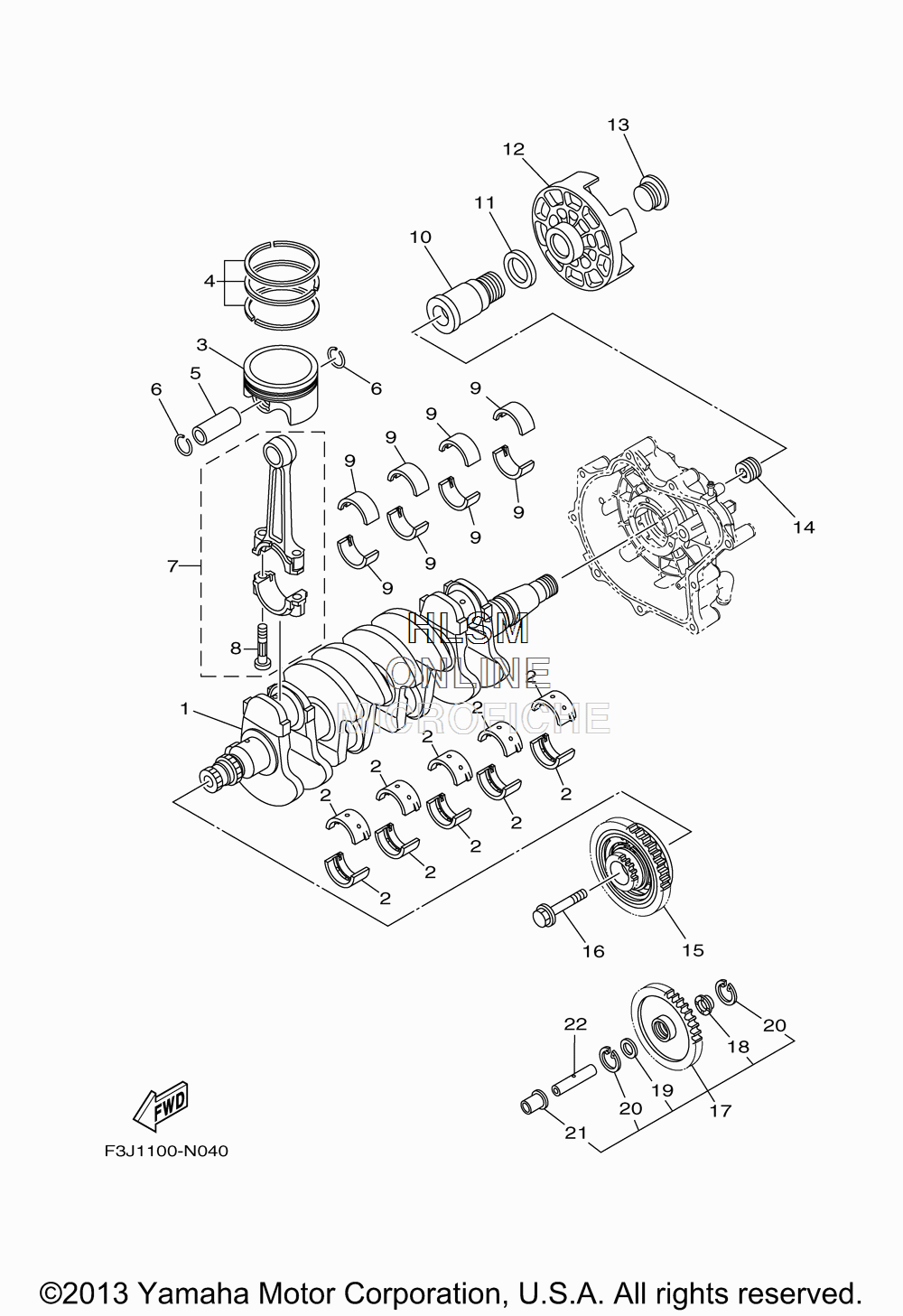

CRANKSHAFT W/ PISTON для Yamaha FX SVHO - 2014 года выпуска`
-
№АртикулНазвание
-
16S5-11411-00-00 CRANKSHAFTCRANKSHAFT
-
26S5-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)
-
26S5-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)
-
26S5-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)
-
26S5-11416-40-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)
-
26S5-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)
-
36ET-11631-00-B0 PISTON (STD)PISTON (STD)
-
46S5-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
56ET-11633-00-00 PIN, PISTONPIN, PISTON
-
693450-24028-00 CIRCLIPCIRCLIP
-
76S5-11650-10-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
86S5-11654-10-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
96S5-11656-60-00 PLANE BEARING, CONNECTING ROD (OPT) (BROWN)PLANE BEARING, CONNECTING ROD (OPT) (BROWN)
-
96S5-11656-70-00 PLANE BEARING, CONNECTING ROD (OPT) (GREEN)PLANE BEARING, CONNECTING ROD (OPT) (GREEN)
-
96S5-11656-50-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)PLANE BEARING, CONNECTING ROD (OPT) (BLACK)
-
96S5-11656-40-00 PLANE BEARING, CONNECTING ROD (OPT) (BLUE)PLANE BEARING, CONNECTING ROD (OPT) (BLUE)
-
106S5-17572-01-00 SHAFT, TRANSFERSHAFT, TRANSFER
-
116S5-12289-00-00 WASHERWASHER
-
126S5-45813-01-94 FLANGE, COUPLINGFLANGE, COUPLING
-
136S5-17525-01-00 HOLDER 2HOLDER 2
-
146S5-11459-01-00 NUT, SPECIALNUT, SPECIAL
-
156ET-17800-00-00 GEAR UNIT ASSYGEAR UNIT ASSY
-
166S5-17031-00-00 BOLTBOLT
-
176S5-W1783-20-00 DRIVE GEAR & COLLAR SET (18T)DRIVE GEAR & COLLAR SET (18T)
-
186S5-17529-00-00 ...WASHER, THRUST...WASHER, THRUST
-
1990201-132G5-00 ...WASHER, PLATE...WASHER, PLATE
-
2099009-24700-00 ...CIRCLIP...CIRCLIP
-
216S5-17585-10-00 ...COLLAR, GEAR...COLLAR, GEAR
-
226S5-17553-00-00 SHAFT, MIDDLE DRIVENSHAFT, MIDDLE DRIVEN
