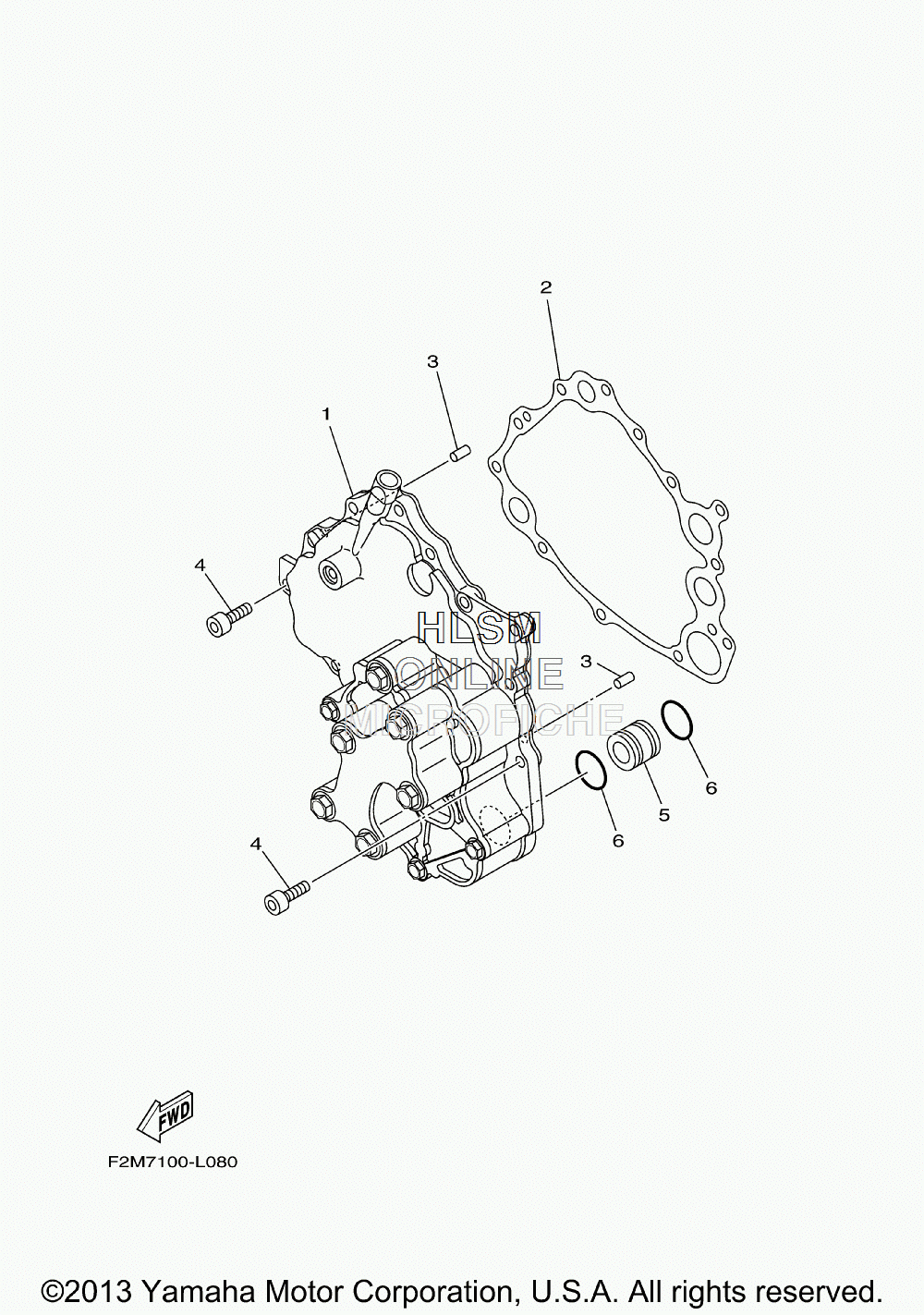

OIL PUMP для Yamaha WAVERUNNER VXR [VX1800AL] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    6BH-13300-00-00 OIL PUMP ASSY (E/N 6CN-1005701 - 6CN-1005800)
    OIL PUMP ASSY (E/N 6CN-1005701 - 6CN-1005800)
  • 1
    6BH-13300-10-00 OIL PUMP ASSY (E/N 6CN-1005801 & UP)
    OIL PUMP ASSY (E/N 6CN-1005801 & UP)
  • 2
    6S5-13563-00-00 GASKET
    GASKET
  • 3
    93606-12019-00 PIN, DOWEL
    PIN, DOWEL
  • 4
    91314-06020-00 BOLT, HEXAGON SOCKET HEAD
    BOLT, HEXAGON SOCKET HEAD
  • 5
    6S5-13446-00-00 CONNECTOR (E/N 6CN-1005701 - 6CN-1005800)
    CONNECTOR (E/N 6CN-1005701 - 6CN-1005800)
  • 5
    6S5-13446-10-00 CONNECTOR (E/N 6CN-1005801 & UP)
    CONNECTOR (E/N 6CN-1005801 & UP)
  • 6
    93210-21631-00 O-RING (E/N 6CN-1005801 & UP)
    O-RING (E/N 6CN-1005801 & UP)
  • 6
    93210-21631-00 O-RING (E/N 6CN-1005701 - 6CN-1005800)
    O-RING (E/N 6CN-1005701 - 6CN-1005800)
