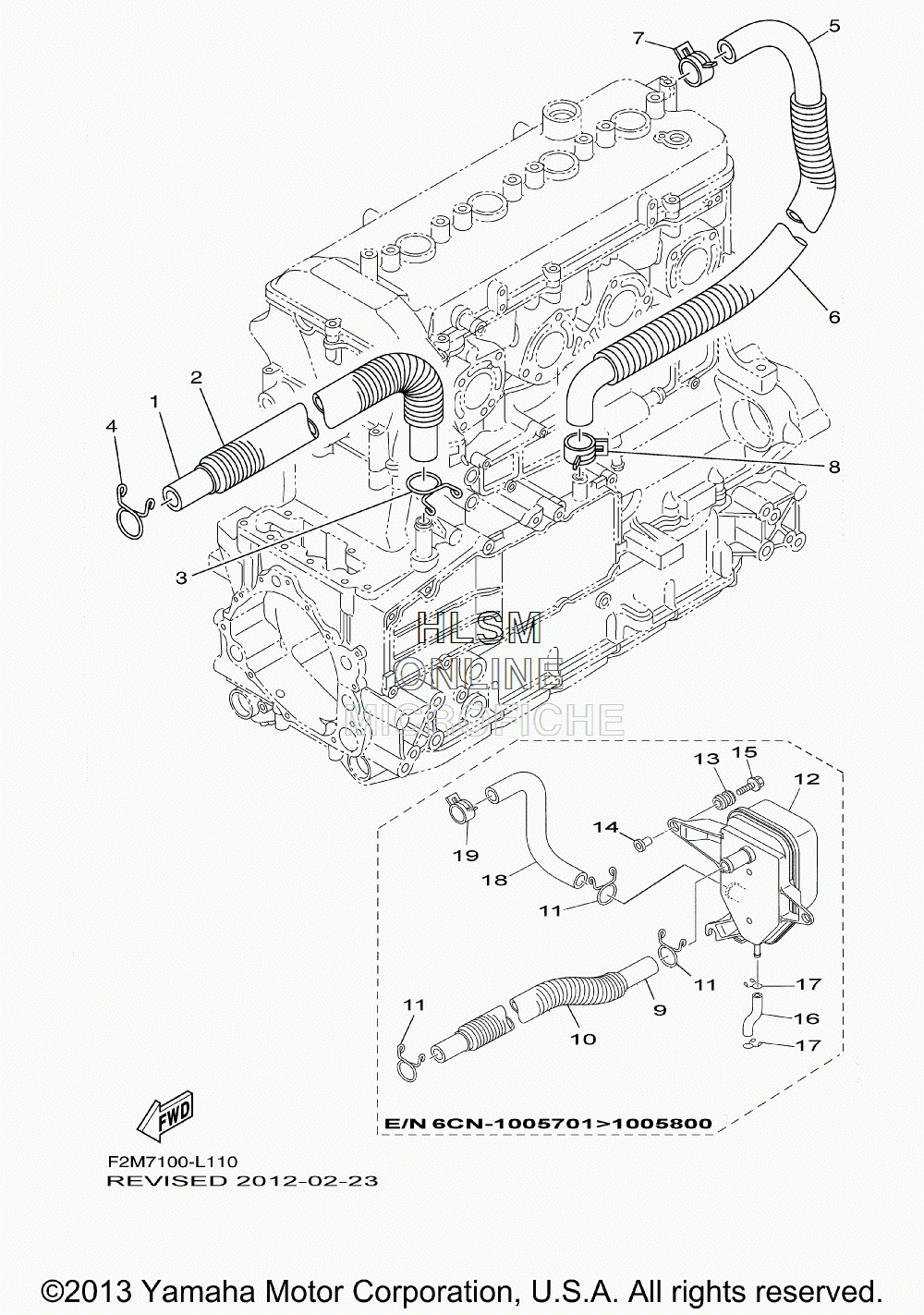

OIL BREATHER ASSY. для Yamaha WAVERUNNER VXR [VX1800AL] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    6S5-11166-10-00 PIPE, BREATHER 1
    PIPE, BREATHER 1
  • 2
    90447-22015-00 TUBE (L410)
    TUBE (L410)
  • 3
    90467-190A0-00 CLIP
    CLIP
  • 4
    90467-190A0-00 CLIP
    CLIP
  • 5
    6S5-11167-10-00 PIPE, BREATHER 2
    PIPE, BREATHER 2
  • 6
    90447-22016-00 TUBE (L490)
    TUBE (L490)
  • 7
    90467-240A0-00 CLIP
    CLIP
  • 8
    90467-200A3-00 CLIP
    CLIP
  • 9
    6S5-111666-00-00 PIPE, BREATHER 1 (E/N 6CN-1005701 - 6CN-1005800)
    PIPE, BREATHER 1 (E/N 6CN-1005701 - 6CN-1005800)
  • 10
    90446-30MF1-00 HOSE (L600) (E/N 6CN-1005701 - 6CN-1005800)
    HOSE (L600) (E/N 6CN-1005701 - 6CN-1005800)
  • 11
    90467-200A2-00 CLIP (E/N 6CN-1005701 - 6CN-1005800)
    CLIP (E/N 6CN-1005701 - 6CN-1005800)
  • 12
    6BH-11160-00-00 BREATHER ASSY (E/N 6CN-1005701 - 6CN-1005800)
    BREATHER ASSY (E/N 6CN-1005701 - 6CN-1005800)
  • 13
    61N-82317-00-00 DAMPER, IGNITION COIL (E/N 6CN-1005701 - 6CN-1005800)
    DAMPER, IGNITION COIL (E/N 6CN-1005701 - 6CN-1005800)
  • 14
    90387-06119-00 COLLAR (E/N 6CN-1005701 - 6CN-1005800)
    COLLAR (E/N 6CN-1005701 - 6CN-1005800)
  • 15
    95824-06030-00 BOLT, FLANGE (E/N 6CN-1005701 - 6CN-1005800)
    BOLT, FLANGE (E/N 6CN-1005701 - 6CN-1005800)
  • 16
    6S5-11125-00-00 PIPE, BREATHER 4 (E/N 6CN-1005701 - 6CN-1005800)
    PIPE, BREATHER 4 (E/N 6CN-1005701 - 6CN-1005800)
  • 17
    90467-11019-00 CLIP (E/N 6CN-1005701 - 6CN-1005800)
    CLIP (E/N 6CN-1005701 - 6CN-1005800)
  • 18
    6S5-11167-00-00 PIPE, BREATHER 2 (E/N 6CN-1005701 - 6CN-1005800)
    PIPE, BREATHER 2 (E/N 6CN-1005701 - 6CN-1005800)
  • 19
    90467-240A0-00 CLIP (E/N 6CN-1005701 - 6CN-1005800)
    CLIP (E/N 6CN-1005701 - 6CN-1005800)
