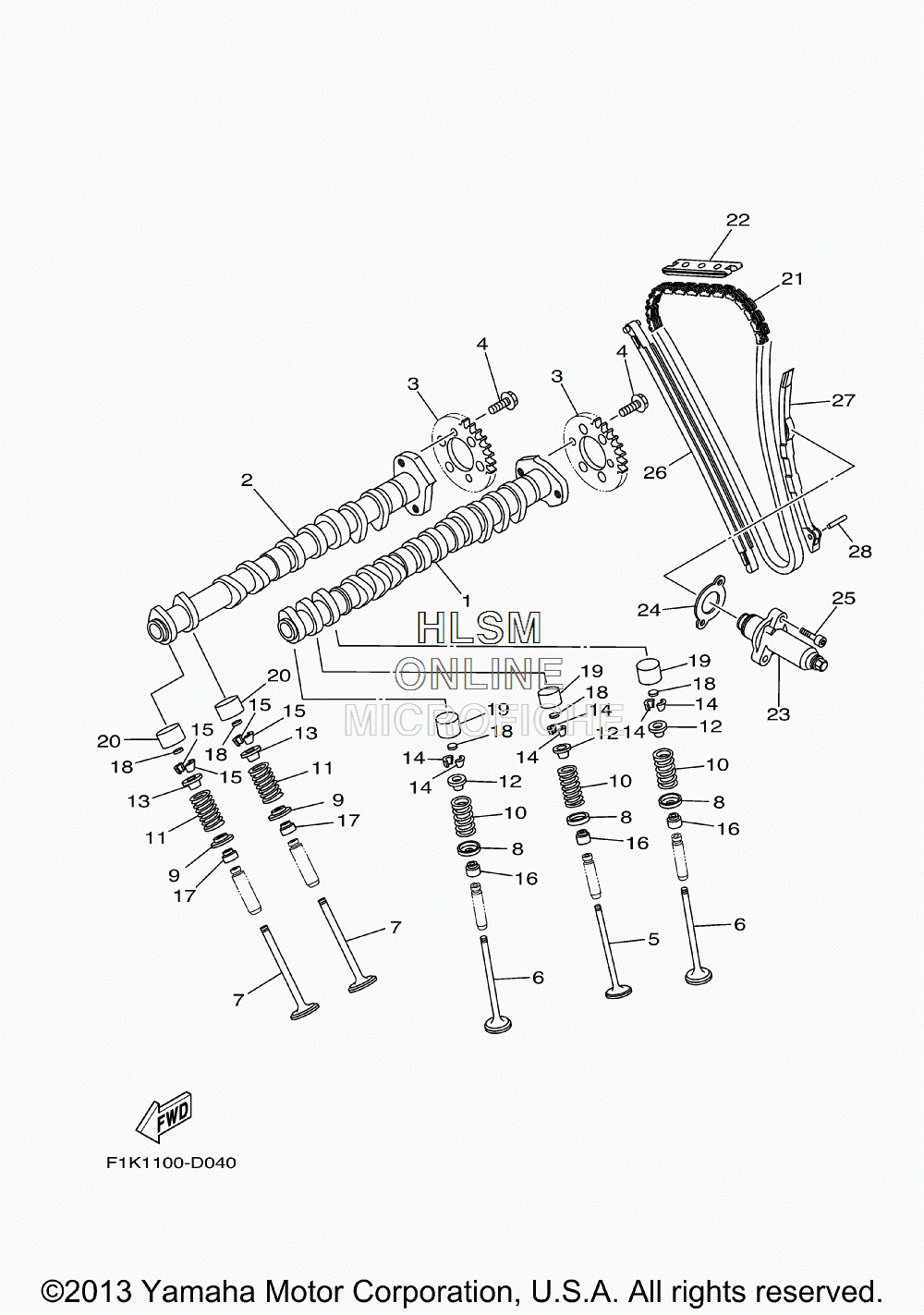

VALVE W/ CAM SHAFTS AND CHAIN для Yamaha WAVERUNNER VX SPORT 3-PASS [VX1100CK] - 2011 года выпуска`
-
№АртикулНазвание
-
16D3-12171-11-00 CAMSHAFT 1CAMSHAFT 1
-
26D3-12181-00-00 CAMSHAFT 2CAMSHAFT 2
-
36D3-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
490105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
54XV-12111-00-00 VALVE, INTAKEVALVE, INTAKE
-
64XV-12112-00-00 VALVE, INTAKE 2VALVE, INTAKE 2
-
75LV-12121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
81HX-12116-01-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
93GM-12126-00-00 SEAT, VALVE SPRING 2SEAT, VALVE SPRING 2
-
104XV-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
114XV-12114-00-00 SPRING, VALVE OUTERSPRING, VALVE OUTER
-
121HX-12117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
131WG-12117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
141HX-12118-00-00 LOCK, VALVE SPRING RETAINERLOCK, VALVE SPRING RETAINER
-
151WG-12118-00-00 LOCK, VALVE SPRING RETAINERLOCK, VALVE SPRING RETAINER
-
164TV-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
174SV-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
181HX-12168-K1-00 PAD, ADJUSTING 2 (1.60) (OPT)PAD, ADJUSTING 2 (1.60) (OPT)
-
181HX-12168-M1-00 PAD, ADJUSTING 2 (1.65) (OPT)PAD, ADJUSTING 2 (1.65) (OPT)
-
181HX-12168-R1-00 PAD, ADJUSTING 2 (1.70) (OPT)PAD, ADJUSTING 2 (1.70) (OPT)
-
181HX-12168-U1-00 PAD, ADJUSTING 2 (1.75) (OPT)PAD, ADJUSTING 2 (1.75) (OPT)
-
181HX-12168-W1-00 PAD, ADJUSTING 2 (1.80) (OPT)PAD, ADJUSTING 2 (1.80) (OPT)
-
181HX-12168-Y1-00 PAD, ADJUSTING 2 (1.85) (OPT)PAD, ADJUSTING 2 (1.85) (OPT)
-
181HX-12169-11-00 PAD, ADJUSTING 2 (1.90) (OPT)PAD, ADJUSTING 2 (1.90) (OPT)
-
181HX-12169-31-00 PAD, ADJUSTING 2 (1.95) (OPT)PAD, ADJUSTING 2 (1.95) (OPT)
-
181HX-12169-50-00 PAD, ADJUSTING 2 (2.00) (OPT)PAD, ADJUSTING 2 (2.00) (OPT)
-
181HX-12169-70-00 PAD, ADJUSTING 2 (2.05) (OPT)PAD, ADJUSTING 2 (2.05) (OPT)
-
181HX-12169-90-00 PAD, ADJUSTING 2 (2.10) (OPT)PAD, ADJUSTING 2 (2.10) (OPT)
-
181HX-12169-E0-00 PAD, ADJUSTING 2 (2.15) (OPT)PAD, ADJUSTING 2 (2.15) (OPT)
-
181HX-12169-G0-00 PAD, ADJUSTING 2 (2.20) (OPT)PAD, ADJUSTING 2 (2.20) (OPT)
-
181HX-12169-J0-00 PAD, ADJUSTING 2 (2.25) (OPT)PAD, ADJUSTING 2 (2.25) (OPT)
-
181HX-12169-L0-00 PAD, ADJUSTING 2 (2.30) (OPT)PAD, ADJUSTING 2 (2.30) (OPT)
-
181HX-12169-N0-00 PAD, ADJUSTING 2 (2.35) (OPT)PAD, ADJUSTING 2 (2.35) (OPT)
-
181HX-12169-T0-00 PAD, ADJUSTING 2 (2.40) (OPT)PAD, ADJUSTING 2 (2.40) (OPT)
-
181HX-12168-H1-00 PAD, ADJUSTING 2 (1.55) (OPT)PAD, ADJUSTING 2 (1.55) (OPT)
-
181HX-12168-F0-00 PAD, ADJUSTING 2 (1.50) (OPT)PAD, ADJUSTING 2 (1.50) (OPT)
-
181HX-12168-A0-00 PAD, ADJUSTING 2 (1.45) (OPT)PAD, ADJUSTING 2 (1.45) (OPT)
-
181HX-12168-80-00 PAD, ADJUSTING 2 (1.40) (OPT)PAD, ADJUSTING 2 (1.40) (OPT)
-
181HX-12168-60-00 PAD, ADJUSTING 2 (1.35) (OPT)PAD, ADJUSTING 2 (1.35) (OPT)
-
181HX-12168-00-00 PAD, ADJUSTING 2 (1.20) (OPT)PAD, ADJUSTING 2 (1.20) (OPT)
-
181HX-12168-20-00 PAD, ADJUSTING 2 (1.25) (OPT)PAD, ADJUSTING 2 (1.25) (OPT)
-
181HX-12168-40-00 PAD, ADJUSTING 2 (1.30) (OPT)PAD, ADJUSTING 2 (1.30) (OPT)
-
193LN-12153-10-00 LIFTER, VALVE (YELLOW)LIFTER, VALVE (YELLOW)
-
203FV-12153-10-00 LIFTER, VALVE (YELLOW)LIFTER, VALVE (YELLOW)
-
2194591-49130-00 CHAINCHAIN
-
225BE-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
236D3-12210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
244FM-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
2591380-06025-00 BOLTBOLT
-
266D3-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
274XV-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
2893607-44002-00 PIN, DOWELPIN, DOWEL
