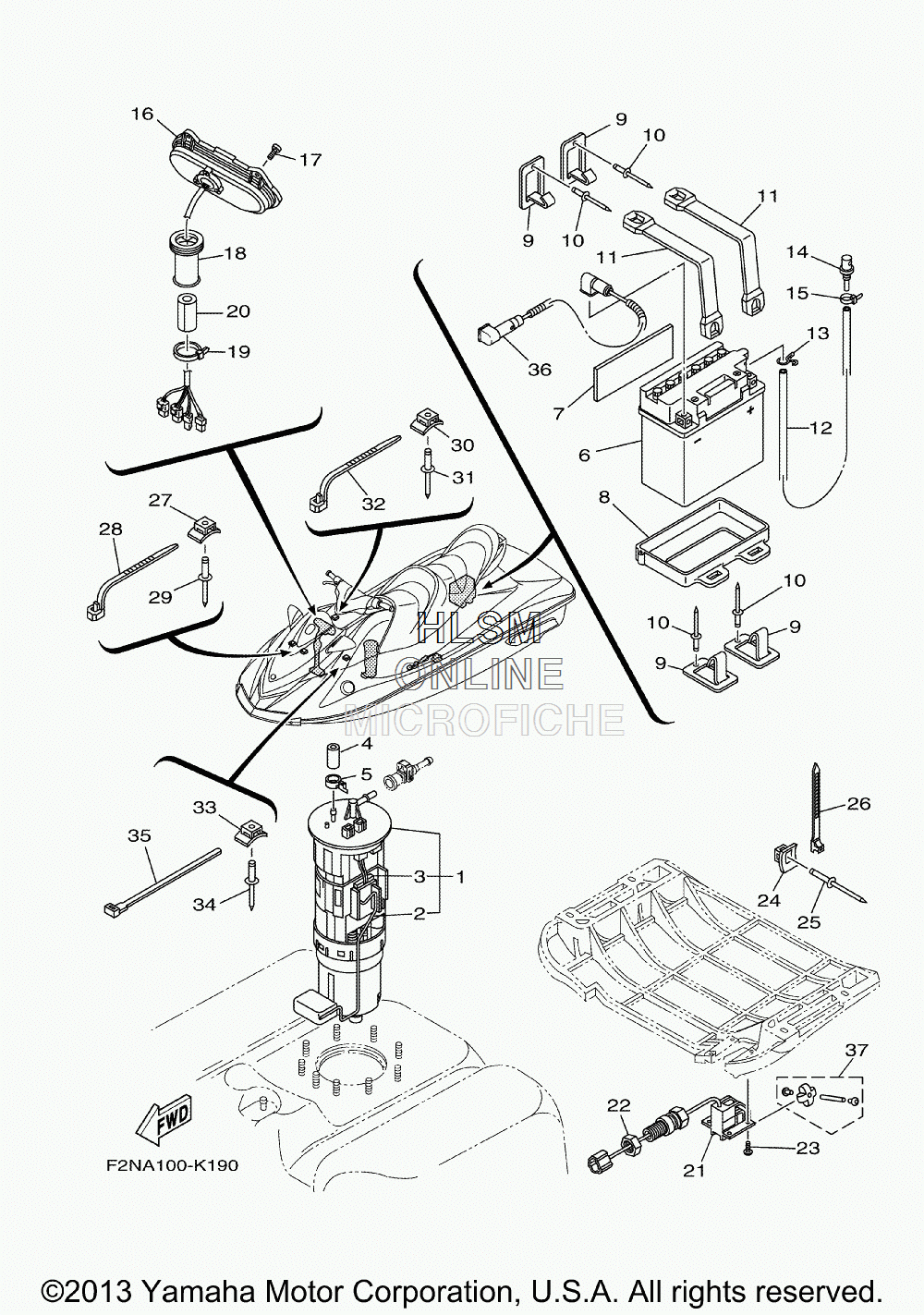

ELECTRICAL 3 для Yamaha WAVERUNNER VX SPORT 3-PASS [VX1100CK] - 2011 года выпуска`
-
№АртикулНазвание
-
160E-13907-02-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
260E-682E0-00-00 ...FUEL SENDER ASSY...FUEL SENDER ASSY
-
360E-82556-00-00 ...DAMPER, STOPPER...DAMPER, STOPPER
-
46D3-24481-00-00 PLUGPLUG
-
56D3-24387-00-00 CLIPCLIP
-
6EU0-82110-09-00 BATTERY ASSY (YB16CL-B) (YUASA)BATTERY ASSY (YB16CL-B) (YUASA)
-
7F1K-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
8F1K-U8211-01-00 CASE, BATTERYCASE, BATTERY
-
9F1K-U5772-04-00 HOOK AHOOK A
-
1090267-489U1-00 RIVET,BLINDRIVET,BLIND
-
11F1K-U821D-01-00 BAND, BATTERY 1BAND, BATTERY 1
-
12F0D-U785G-10-00 HOSE, AIR VENTHOSE, AIR VENT
-
1390467-089U1-00 CLIPCLIP
-
14GJ3-6215F-00-00 NIPPLENIPPLE
-
1590465-11829-00 CLAMPCLAMP
-
16F1K-6820A-12-00 METER ASSYMETER ASSY
-
1790111-05008-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
18GU2-6822E-01-00 GROMMETGROMMET
-
1990464-32801-00 CLAMPCLAMP
-
20GJ1-U7578-21-00 PACKING, HOSE 2PACKING, HOSE 2
-
21F1S-U8K31-02-00 SENSOR SPEEDSENSOR SPEED
-
22F2C-U151S-00-00 NUTNUT
-
2390150-05807-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
24F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
2590267-489U6-00 RIVET, BLINDRIVET, BLIND
-
2690464-32801-00 CLAMPCLAMP
-
27F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
2890464-32801-00 CLAMPCLAMP
-
2990267-489U6-00 RIVET, BLINDRIVET, BLIND
-
30F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
3190267-489U6-00 RIVET, BLINDRIVET, BLIND
-
3290464-32801-00 CLAMPCLAMP
-
33F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
3490267-489U6-00 RIVET, BLINDRIVET, BLIND
-
3590601-200U2-00 BANDBAND
-
366BU-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
37GP1-U835D-00-00 REPAIR KIT, SPEED SENSORREPAIR KIT, SPEED SENSOR
