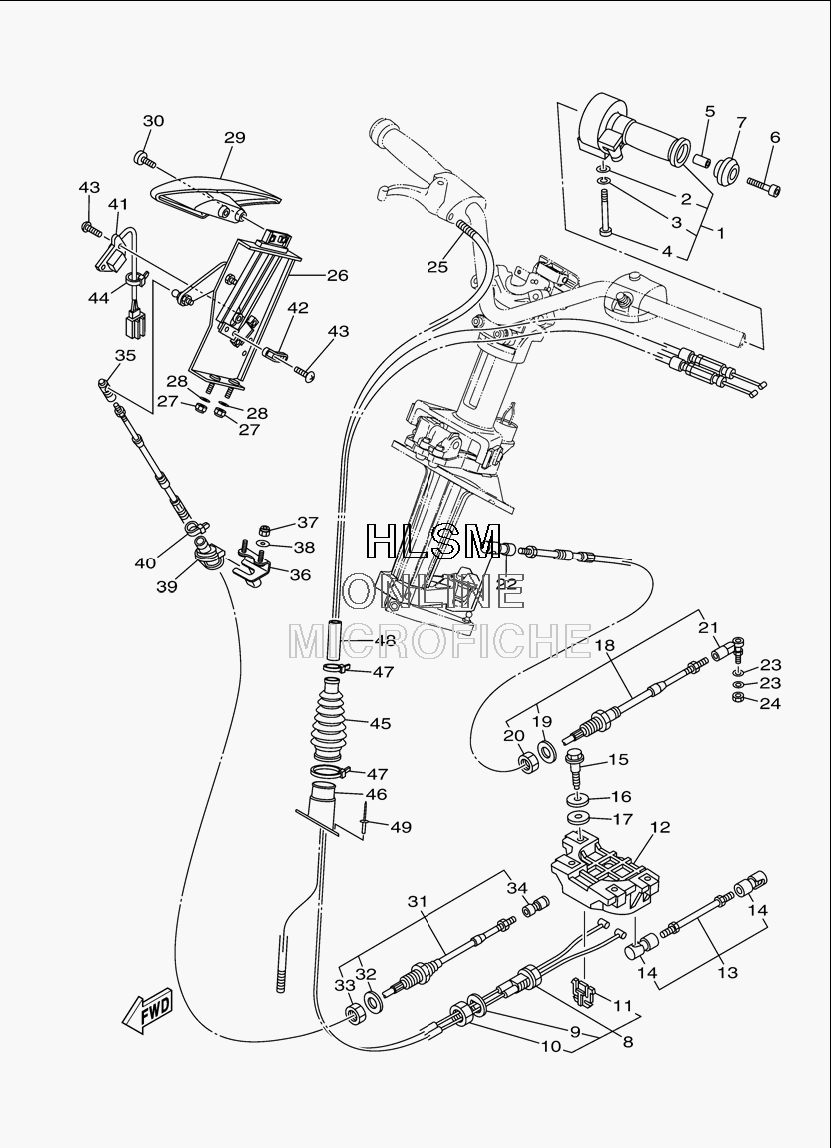

CONTROL CABLES для Yamaha FZS - 2009 года выпуска`
-
№АртикулНазвание
-
1F1W-6153A-00-00 NOZZLE,CONTROL ASSYNOZZLE,CONTROL ASSY
-
292990-06200-00 .WASHER, PLAIN.WASHER, PLAIN
-
392990-06100-00 .WASHER, SPRING.WASHER, SPRING
-
4F1W-613C1-00-00 .SCREW.SCREW
-
590387-05800-00 COLLARCOLLAR
-
690110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
7GP7-U155F-00-00 GRIP, ENDGRIP, END
-
8F2C-6153E-00-00 CABLE,NOZZLE CONTROL 3CABLE,NOZZLE CONTROL 3
-
9F1W-61438-00-00 .PACKING.PACKING
-
10F1B-6151S-00-00 .NUT.NUT
-
11F1W-61557-00-00 .GUIDE, CABLE.GUIDE, CABLE
-
12F1W-6153J-00-00 REMOCON,NOZZLE 2REMOCON,NOZZLE 2
-
13F1W-6150A-00-00 ROD ASSYROD ASSY
-
14F1B-61460-00-00 .BALL JOINT ASSY.BALL JOINT ASSY
-
1590109-06233-00 BOLTBOLT
-
1690201-099U3-00 WASHER, PLATEWASHER, PLATE
-
1790202-08002-00 WASHER, PLATEWASHER, PLATE
-
18F2C-61481-00-00 CABLE, STEERINGCABLE, STEERING
-
19F1B-61438-00-00 .PACKING.PACKING
-
20F1B-6151S-00-00 .NUT.NUT
-
21F1B-61461-02-00 .STUD, JOINT BALL.STUD, JOINT BALL
-
22GK5-U146F-00-00 SHAFT,JOINT BALLSHAFT,JOINT BALL
-
2390201-06906-00 WASHER, PLATEWASHER, PLATE
-
249538R-06700-00 NUTNUT
-
2590447-07001-00 HOSE, WITH SPRING (L400)HOSE, WITH SPRING (L400)
-
26F2C-U134A-03-00 REMOCON. LEVER ASSY.REMOCON. LEVER ASSY.
-
279572R-06300-00 NUT, NYLONNUT, NYLON
-
289299R-06200-00 WASHERWASHER
-
29F2C-U2714-00-00 GRIPGRIP
-
3090154-06017-00 SCREW, BINDINGSCREW, BINDING
-
31F2C-6149C-00-00 CABLE,REVERSECABLE,REVERSE
-
32F1B-61438-00-00 .PACKING.PACKING
-
33F1B-6151S-00-00 .NUT.NUT
-
34F2C-61460-00-00 .BALL JOINT ASSY.BALL JOINT ASSY
-
35GK5-U146F-00-00 SHAFT,JOINT BALLSHAFT,JOINT BALL
-
36F2C-U1467-01-00 BRACKET,STOPPER CABLEBRACKET,STOPPER CABLE
-
379572R-06300-00 NUT, NYLONNUT, NYLON
-
389299R-06200-00 WASHERWASHER
-
39F2C-U146G-01-00 PACKING, CABLEPACKING, CABLE
-
4090465-11829-00 CLAMPCLAMP
-
41F1W-6830K-00-00 REVERSE SENSOR ASSYREVERSE SENSOR ASSY
-
42F2C-6838C-00-00 MAGNETMAGNET
-
4390150-05807-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
4490465-11829-00 CLAMPCLAMP
-
45F2C-U822E-01-00 GROMMETGROMMET
-
46F2C-U1465-00-00 COLLAR, PLASTICCOLLAR, PLASTIC
-
4790464-40825-00 CLAMPCLAMP
-
48GJ1-U7578-11-00 PACKING, HOSE 2PACKING, HOSE 2
-
4990267-48806-00 RIVET, BLINDRIVET, BLIND
