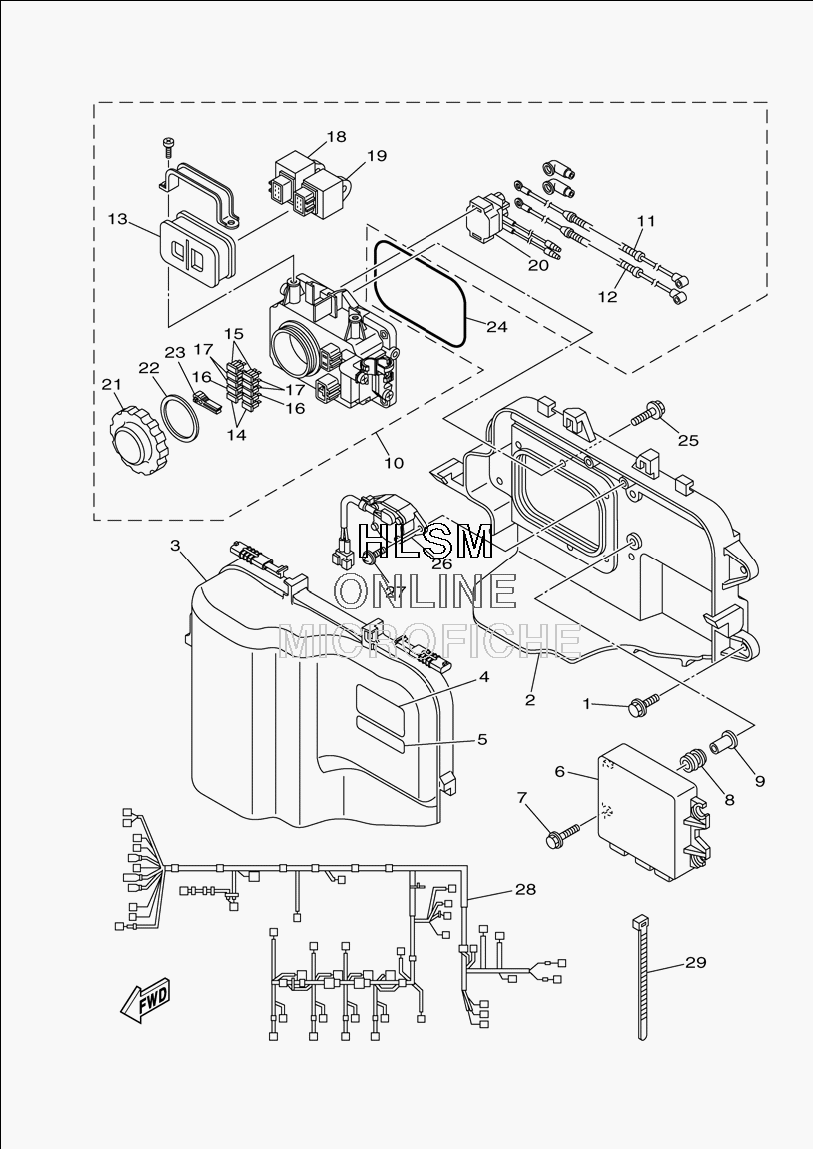

ELECTRICAL 1 для Yamaha FZS - 2009 года выпуска`
-
№АртикулНазвание
-
190119-089UT-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
26BH-81845-00-00 PLATEPLATE
-
36S5-81942-00-00 COVERCOVER
-
46B6-83623-00-00 MARK 3MARK 3
-
560E-83627-00-00 LABEL, CAUTION 7LABEL, CAUTION 7
-
66AN-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
790119-06M35-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
86A0-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
990387-06119-00 COLLARCOLLAR
-
106BH-82170-00-00 FUSE BOX ASSYFUSE BOX ASSY
-
116S5-82115-00-00 .WIRE, PLUS LEAD.WIRE, PLUS LEAD
-
126S5-82117-00-00 .WIRE, LEAD.WIRE, LEAD
-
136D3-82157-00-00 .DAMPER.DAMPER
-
1467F-82151-00-00 .FUSE (20A).FUSE (20A)
-
1567F-82151-10-00 .FUSE (30A).FUSE (30A)
-
1667F-82151-30-00 .FUSE (3A).FUSE (3A)
-
1767F-82151-40-00 .FUSE (10A).FUSE (10A)
-
1860E-81950-00-00 .RELAY ASSY.RELAY ASSY
-
1968V-81950-00-00 .RELAY ASSY.RELAY ASSY
-
206B6-81940-00-00 .STARTER RELAY ASSY.STARTER RELAY ASSY
-
2166V-8132W-00-00 .CAP.CAP
-
2266V-81844-00-00 .GASKET.GASKET
-
2367F-2812A-00-00 .PULLER, FUSE.PULLER, FUSE
-
246BH-81847-00-00 O-RINGO-RING
-
2590119-06091-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
266S5-8259E-00-00 SWITCH ASSYSWITCH ASSY
-
2797780-60520-00 SCREW, TAPPINGSCREW, TAPPING
-
286AN-8259L-00-00 WIRE HARNESS ASSY 1WIRE HARNESS ASSY 1
-
2990465-14M66-00 CLAMPCLAMP
