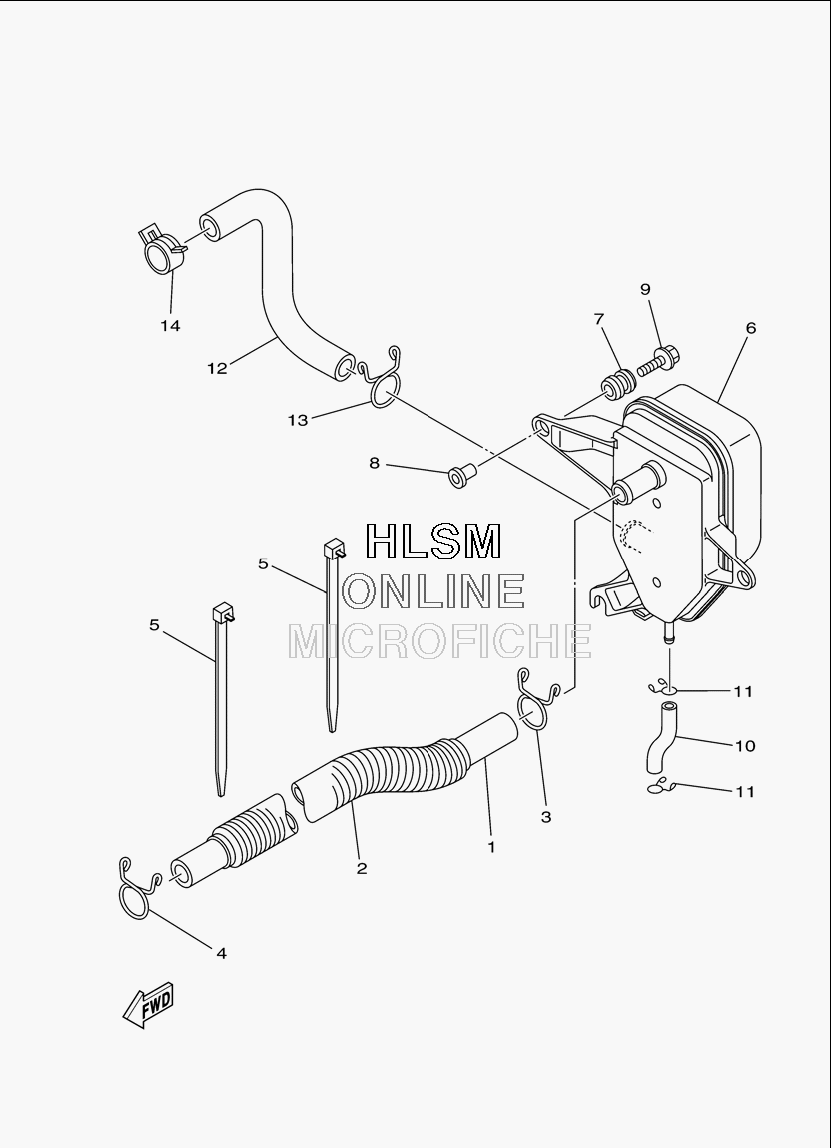

OIL BREATHER ASSY. для Yamaha FX HO - 2009 года выпуска`
-
№АртикулНазвание
-
16S5-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
290446-30MF1-00 HOSE (L600)HOSE (L600)
-
390467-240A2-00 CLIPCLIP
-
490467-240A2-00 CLIPCLIP
-
590465-14M66-00 CLAMPCLAMP
-
66BH-11160-00-00 BREATHER ASSYBREATHER ASSY
-
761N-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
890387-06119-00 COLLARCOLLAR
-
995824-06030-00 BOLT, FLANGEBOLT, FLANGE
-
106S5-11125-00-00 PIPE, BREATHER 4PIPE, BREATHER 4
-
1190467-11019-00 CLIPCLIP
-
126S5-11167-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
1390467-240A2-00 CLIPCLIP
-
1490467-240A0-00 CLIPCLIP
