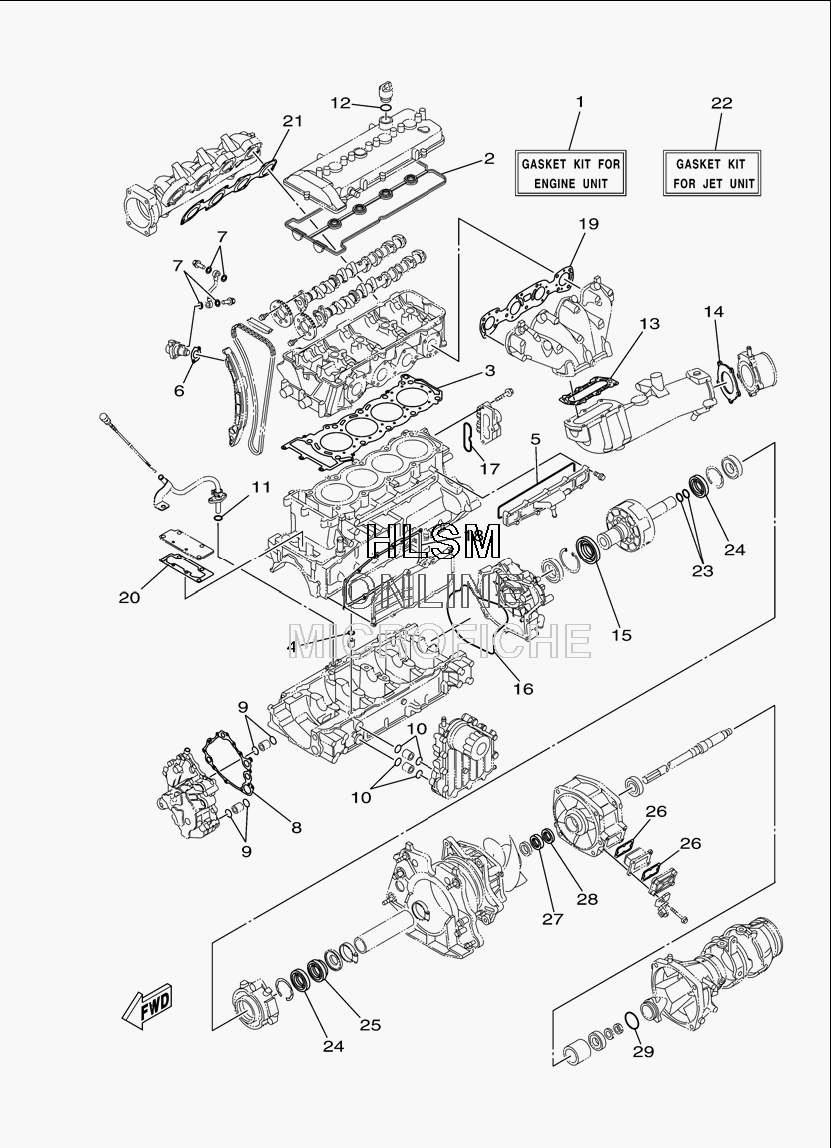

GASKET KIT - ENGINE AND JET UNIT для Yamaha FX HO - 2009 года выпуска`
-
№АртикулНазвание
-
16BH-W0001-00-00 GASKET KIT FOR ENGINE UNITGASKET KIT FOR ENGINE UNIT
-
26BH-11193-00-00 .GASKET, HEAD COVER 1.GASKET, HEAD COVER 1
-
36BH-11181-00-00 .GASKET, CYLINDER HEAD 1.GASKET, CYLINDER HEAD 1
-
493210-11453-00 .O-RING.O-RING
-
56S5-12517-01-00 .GASKET, WATER INLET.GASKET, WATER INLET
-
66S5-121E2-00-00 .GASKET.GASKET
-
790430-10007-00 .GASKET.GASKET
-
86S5-13563-00-00 .GASKET.GASKET
-
993210-21631-00 .O-RING.O-RING
-
1093210-18322-00 .O-RING.O-RING
-
1193210-12790-00 .O-RING.O-RING
-
1293210-24M79-00 .O-RING.O-RING
-
136S5-14739-00-00 .GASKET, MUFFLER DAMPER 1.GASKET, MUFFLER DAMPER 1
-
146BH-14749-00-00 .GASKET, MUFFLER DAMPER 2.GASKET, MUFFLER DAMPER 2
-
156S5-81167-10-00 .OIL SEAL.OIL SEAL
-
166S5-81168-00-00 .O-RING.O-RING
-
1793210-60ME8-00 .O-RING.O-RING
-
186BH-13557-00-00 .GASKET.GASKET
-
196BH-14613-00-00 .GASKET, EXHAUST PIPE.GASKET, EXHAUST PIPE
-
206BH-1131B-00-00 .GASKET, COVER.GASKET, COVER
-
216BH-13645-00-00 .GASKET, MANIFOLD 1.GASKET, MANIFOLD 1
-
226S5-W0001-20-00 GASKET KIT FOR JET UNITGASKET KIT FOR JET UNIT
-
2393210-22MF1-00 .O-RING.O-RING
-
2493102-29008-00 .OIL SEAL.OIL SEAL
-
2593102-29009-00 .OIL SEAL.OIL SEAL
-
2666V-42414-00-00 .O-RING.O-RING
-
2793102-31009-00 .OIL SEAL.OIL SEAL
-
2893102-31004-00 .OIL SEAL.OIL SEAL
-
296S5-5111K-00-00 .O-RING 1.O-RING 1
Все узлы модели:
- BILGE PUMP
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER 2
- CYLINDER HEAD COVER ASSY.
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- • GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL - GUNWALE - MAT
- HULL-DECK 1
- INTAKE 1
- INTAKE AND RIDE PLATE ASSY
- OIL BREATHER ASSY.
- OIL COOLER
- OIL PAN
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- SUPER CHARGER ASSY
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
