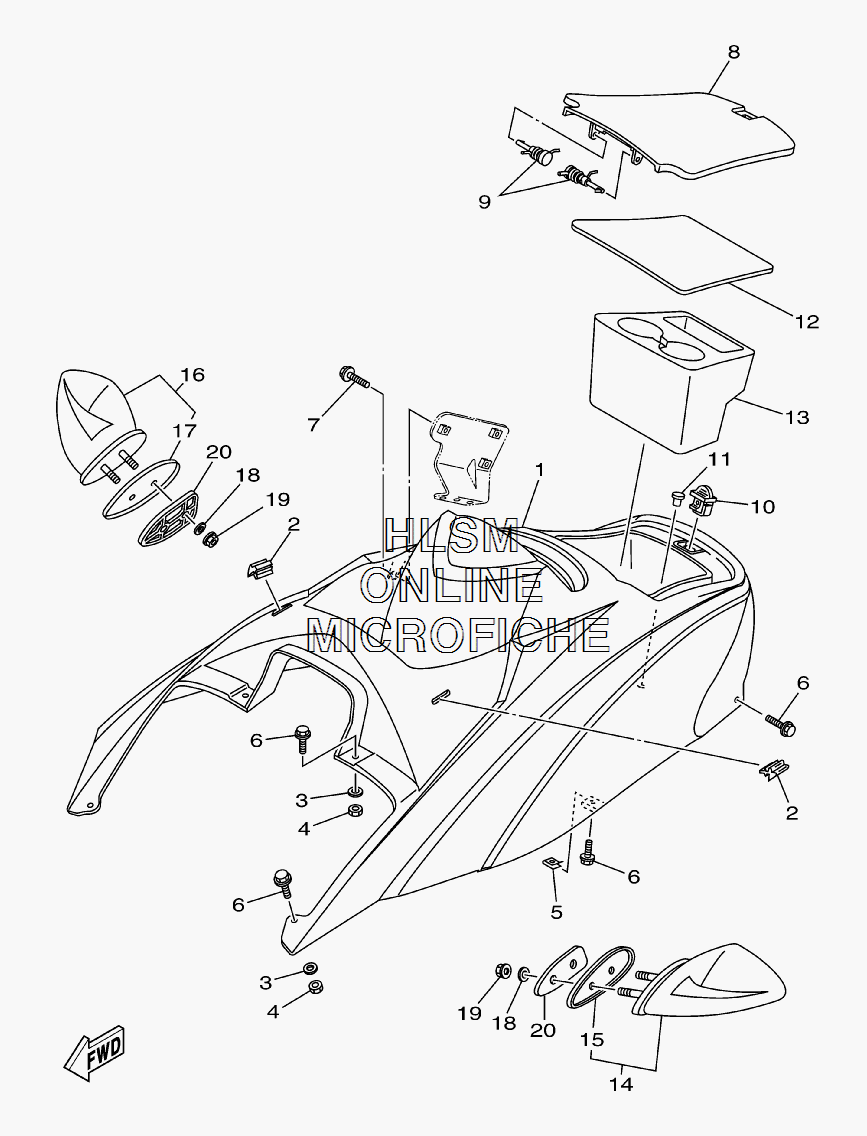

SIDE COVERS для Yamaha VX DELUXE 3-PASS - 2008 года выпуска
-
№АртикулНазвание
-
1F1K-U516N-11-P0 COVER, ENGINE HATCH (DPBMT)COVER, ENGINE HATCH (DPBMT)
-
1F1K-U516N-41-P0 COVER, ENGINE HATCH (NME)COVER, ENGINE HATCH (NME)
-
1F1K-U516N-50-P0 COVER, ENGINE HATCH (LYNM)COVER, ENGINE HATCH (LYNM)
-
2F1K-U266C-00-00 PACKING 4PACKING 4
-
39299R-06200-00 WASHERWASHER
-
49572R-06300-00 NUT, NYLONNUT, NYLON
-
590183-06902-00 NUT, SPRINGNUT, SPRING
-
690119-06882-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790119-069US-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
8F1K-U517H-01-00 LID HATCHLID HATCH
-
9F0X-6517R-01-00 PIN, HINGEPIN, HINGE
-
10GU2-62875-01-00 LOCKLOCK
-
1190605-502U1-00 PLUG, BLINDPLUG, BLIND
-
12F1K-U519D-00-00 PACKING CASEPACKING CASE
-
13F1K-U5633-02-00 HOLDER, DRINKHOLDER, DRINK
-
14F1S-U596B-10-00 MIRROR LHMIRROR LH
-
15F0V-U471E-00-00 ...SPACER 1...SPACER 1
-
16F1S-U596C-10-00 MIRROR RHMIRROR RH
-
17F0V-U471F-00-00 ...SPACER 2...SPACER 2
-
189299R-08200-00 WASHERWASHER
-
199572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
20F1B-U5646-00-00 PLATEPLATE
