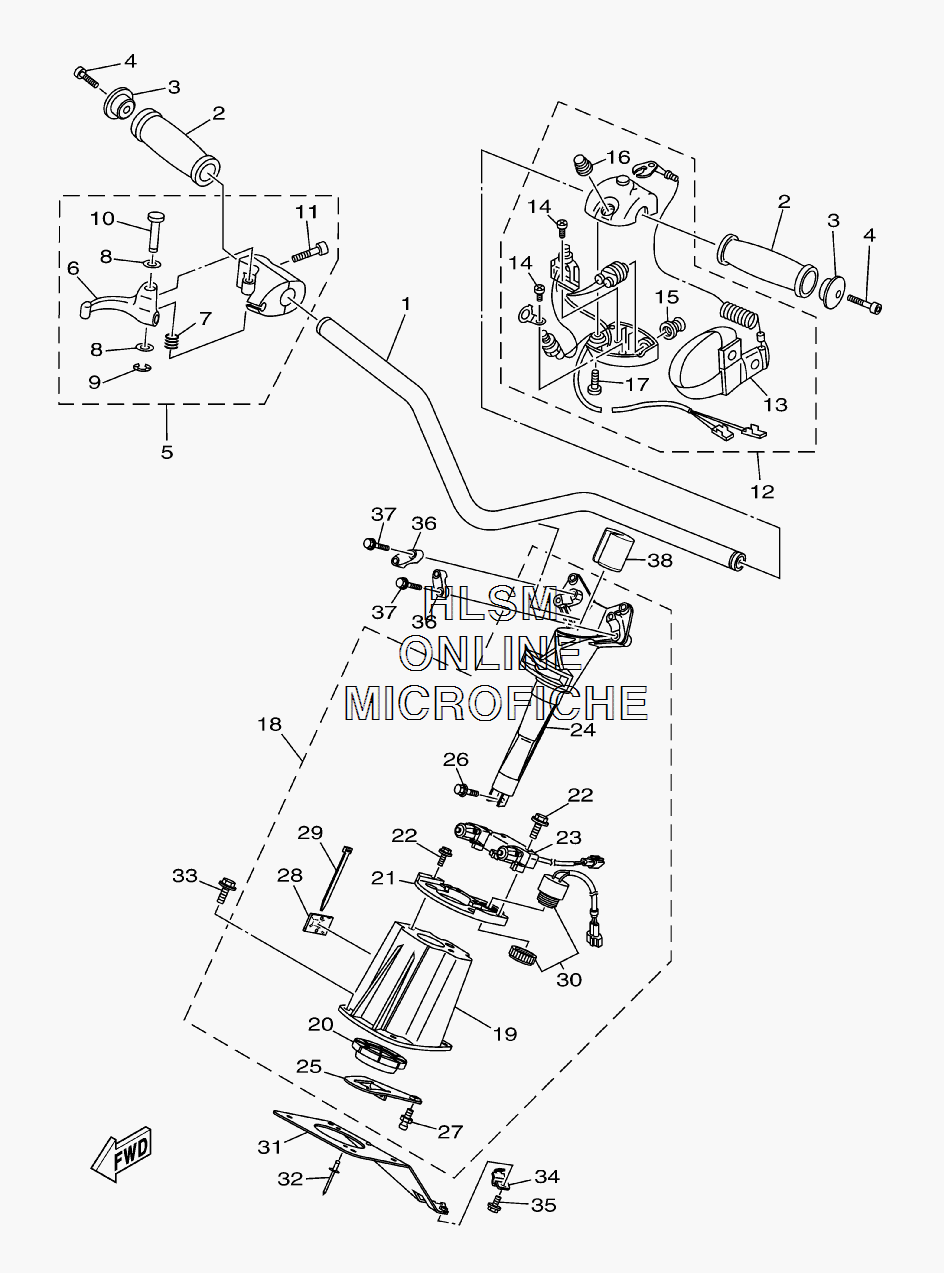

HANDLEBAR W/ CONTROLS - STEERING COLUMN для Yamaha VX DELUXE 3-PASS - 2008 года выпуска`
-
№АртикулНазвание
-
1F1K-U1552-00-00 HANDLEHANDLE
-
2GP7-U155D-01-00 GRIP, HANDLEGRIP, HANDLE
-
3GP7-U155F-00-00 GRIP, ENDGRIP, END
-
490110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5F0D-67250-10-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
6F0D-67255-02-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
7EW2-67256-00-00 ...SPRING...SPRING
-
8EW2-67258-01-00 ...WASHER...WASHER
-
9EW2-67259-01-00 ...E-RING...E-RING
-
10F0D-67257-00-00 ...SHAFT...SHAFT
-
11F1X-6725F-01-00 ...BOLT, THROTTLE...BOLT, THROTTLE
-
12FK7-68310-07-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
13EW2-68348-00-00 ...LANYARD, STOP SWITCH...LANYARD, STOP SWITCH
-
1497880-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
15FK7-68312-02-00 ...STOP BUTTON COMP...STOP BUTTON COMP
-
16FK7-68313-02-00 ...START BUTTON COMP....START BUTTON COMP.
-
1797880-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
18F1K-U154A-04-00 STEERING COLUMN COMP.STEERING COLUMN COMP.
-
19F1K-U152M-00-00 ...HOUSING ASSY...HOUSING ASSY
-
20F1K-U143C-00-00 ...SEAL, RUBBER...SEAL, RUBBER
-
21F1K-U146H-01-00 ...SPACER, BRACKET...SPACER, BRACKET
-
2290119-08826-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
23F1B-68303-10-00 ...SENSOR ASSY...SENSOR ASSY
-
24F1K-U1541-02-00 ...COLUMN, STEERING...COLUMN, STEERING
-
25F1K-U151B-02-00 ...ARM, STEERING...ARM, STEERING
-
2690119-08826-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
27GH3-U146E-00-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
2890600-900U6-00 ...BASE, CLAMP...BASE, CLAMP
-
2990601-200U1-00 ...BAND, HOSE 18...BAND, HOSE 18
-
30F1S-68341-00-00 ...BUZZER...BUZZER
-
31F1K-U1467-00-00 BRACKET, STOPPER CABLEBRACKET, STOPPER CABLE
-
3290267-48806-00 RIVET, BLINDRIVET, BLIND
-
3390119-08836-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
34F1K-U1468-03-00 STOPPER, CABLESTOPPER, CABLE
-
3590119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
36EU0-23814-30-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
3790119-089UU-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
38F1K-U1949-00-00 PLUGPLUG
