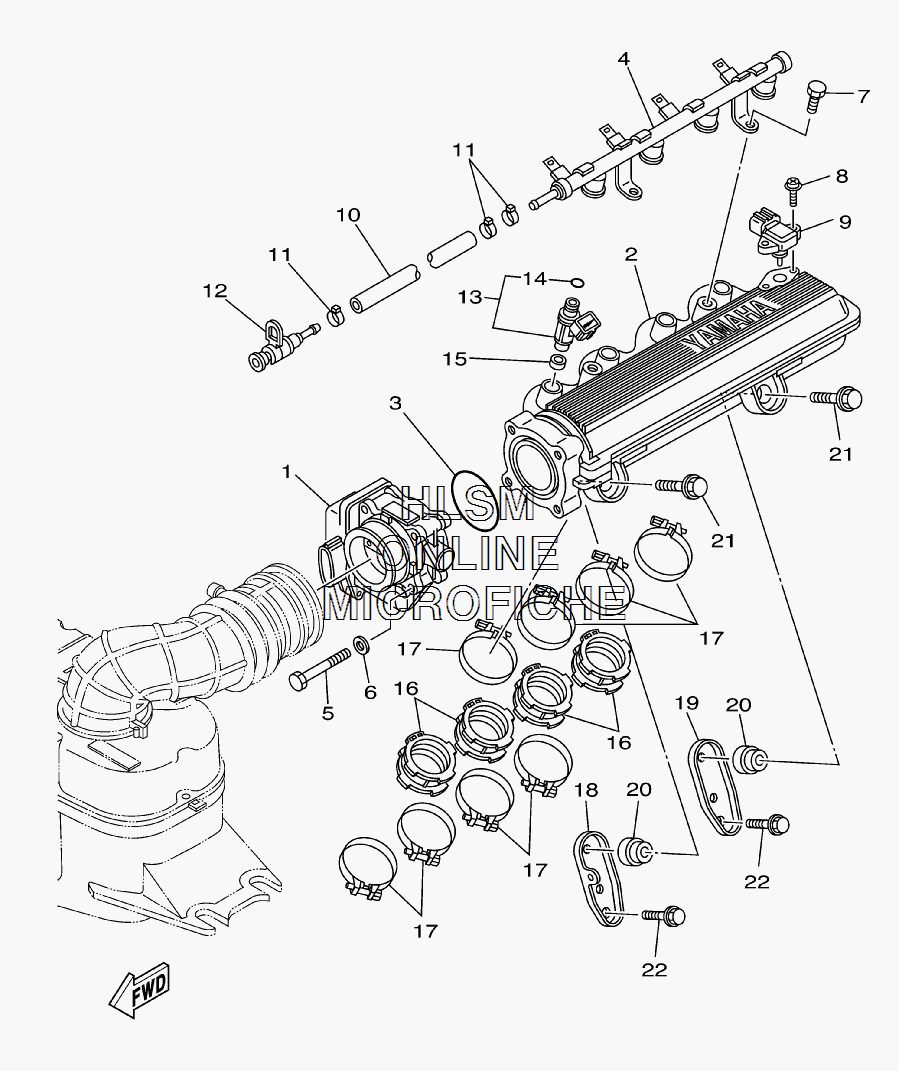

THROTTLE BODY ASSY. для Yamaha VX CRUISER 3-PASS - 2008 года выпуска`
-
№АртикулНазвание
-
16D3-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
26D3-13641-00-00 MANIFOLD 1MANIFOLD 1
-
36D3-14457-00-00 SEALSEAL
-
46D3-12880-00-00 DELIVERY PIPEDELIVERY PIPE
-
568V-13573-00-00 BOLT 1BOLT 1
-
668V-14475-00-00 WASHERWASHER
-
763P-14446-00-00 BOLTBOLT
-
86D3-81147-00-00 SCREW 3SCREW 3
-
968F-83688-00-00 SENSOR ASSYSENSOR ASSY
-
106D3-14294-00-00 HOSE (L600)HOSE (L600)
-
1190450-17M17-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1260E-24300-01-00 FUEL PIPE JOINTFUEL PIPE JOINT
-
1360E-13761-10-00 INJECTORINJECTOR
-
1460E-14147-00-00 ...O-RING...O-RING
-
1590430-09002-00 GASKETGASKET
-
166D3-13795-01-00 JOINT, THROTTLE BODY 1JOINT, THROTTLE BODY 1
-
1790450-57006-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
186D3-14413-00-00 STAYSTAY
-
196D3-14414-00-00 STAY 2STAY 2
-
2060E-14449-00-94 COLLARCOLLAR
-
2190119-08050-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2290119-08074-00 BOLT, WITH WASHERBOLT, WITH WASHER
