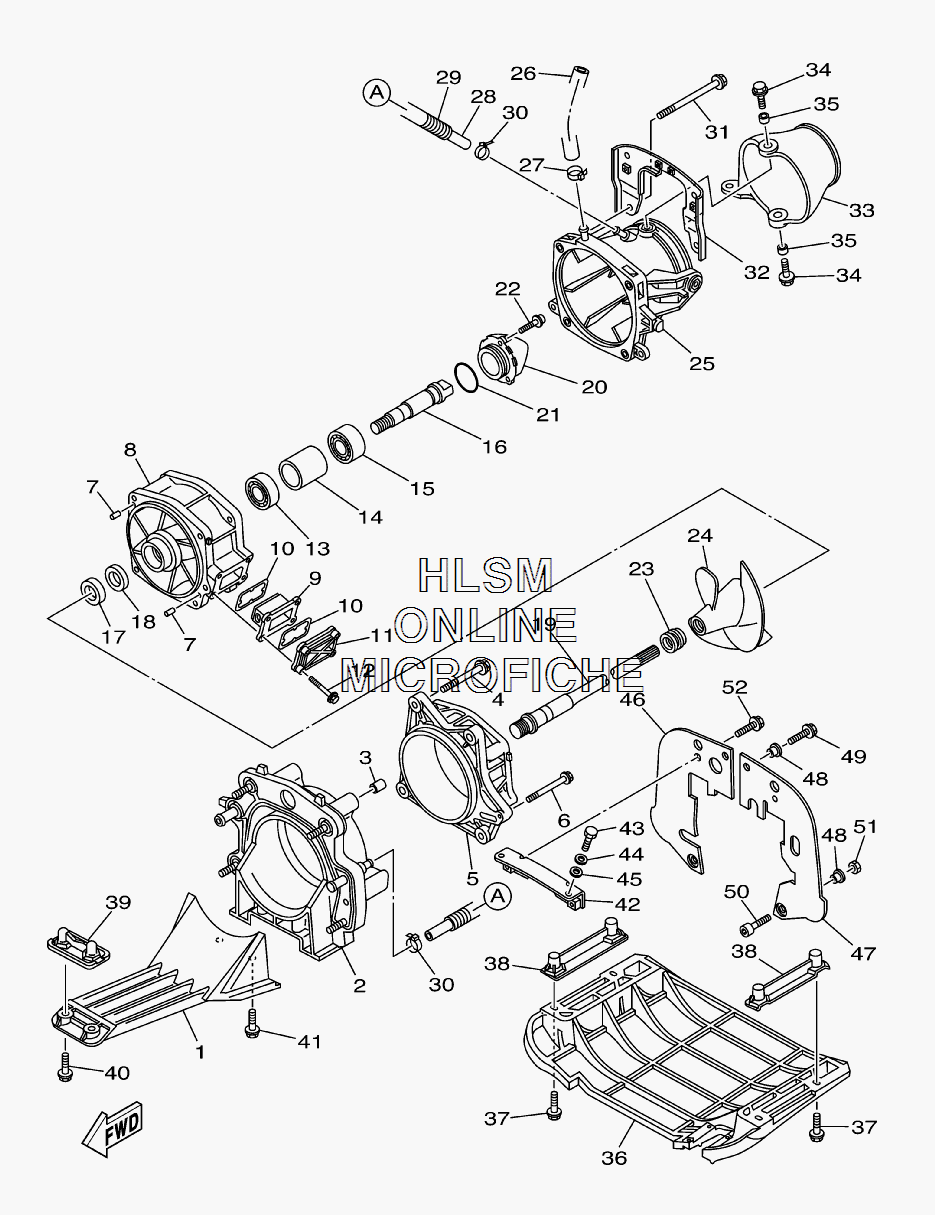

PROPULSION SYSTEM - EXTERNAL для Yamaha VX CRUISER 3-PASS - 2008 года выпуска`
-
№АртикулНазвание
-
16D3-R1333-00-94 SCREEN, INTAKESCREEN, INTAKE
-
26D3-G5831-00-00 PLATE, TRANSOMPLATE, TRANSOM
-
399590-14016-00 PIN, DOWELPIN, DOWEL
-
490119-10836-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
566V-51312-01-94 HOUSING, IMPELLERHOUSING, IMPELLER
-
690119-06835-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
793606-12019-00 PIN, DOWELPIN, DOWEL
-
86B6-51315-01-94 DUCT, IMPELLERDUCT, IMPELLER
-
966V-46882-00-00 FILTERFILTER
-
1066V-42414-00-00 O-RINGO-RING
-
1166V-45214-00-94 COVER, WATER INLET 1COVER, WATER INLET 1
-
1290119-06800-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1393306-27211-00 BEARINGBEARING
-
1465V-45538-00-00 SPACER 1SPACER 1
-
1593306-205U0-00 BEARINGBEARING
-
166D3-45514-00-00 SHAFT, DRIVE 4SHAFT, DRIVE 4
-
1793101-21001-00 OIL SEALOIL SEAL
-
1893101-21002-00 OIL SEALOIL SEAL
-
196D3-45511-00-00 SHAFT, DRIVESHAFT, DRIVE
-
206B6-51326-10-00 CAPCAP
-
2193210-464A3-00 O-RINGO-RING
-
2290110-06822-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
236D3-R1319-00-00 CAP, IMPELLERCAP, IMPELLER
-
246D3-R1321-02-00 IMPELLERIMPELLER
-
256D3-R1318-00-00 NOZZLENOZZLE
-
2690445-16006-00 HOSE (L260)HOSE (L260)
-
2790601-118UF-00 NYLON CLIP 1NYLON CLIP 1
-
2890445-14008-00 HOSE (L355)HOSE (L355)
-
2990446-20MF5-00 HOSE (L320)HOSE (L320)
-
3090465-11829-00 CLAMPCLAMP
-
3190119-10837-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
326D3-R1341-00-00 BRACKET 1BRACKET 1
-
336D3-R1313-00-00 NOZZLE, DEFLECTORNOZZLE, DEFLECTOR
-
3490119-08840-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3590387-08M06-00 COLLARCOLLAR
-
36F1K-U273B-03-00 PLATE 2PLATE 2
-
3790119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
38F1G-U8572-00-00 BRACKET 2BRACKET 2
-
39F1K-U8577-00-00 BRACKET, 3BRACKET, 3
-
4090119-069UK-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4190119-10805-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
42F1K-U7557-00-00 BRACKETBRACKET
-
4390109-08041-00 BOLTBOLT
-
4492990-12200-00 WASHER, PLAINWASHER, PLAIN
-
4590430-12002-00 GASKETGASKET
-
46F1K-U757E-01-00 PLATE, RUBBER 1PLATE, RUBBER 1
-
47F1K-U757F-01-00 PLATE, RUBBER 2PLATE, RUBBER 2
-
4890387-06080-00 COLLARCOLLAR
-
4990119-06827-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5090101-069U0-00 BOLTBOLT
-
519572R-06300-00 NUT, NYLONNUT, NYLON
-
5290119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
