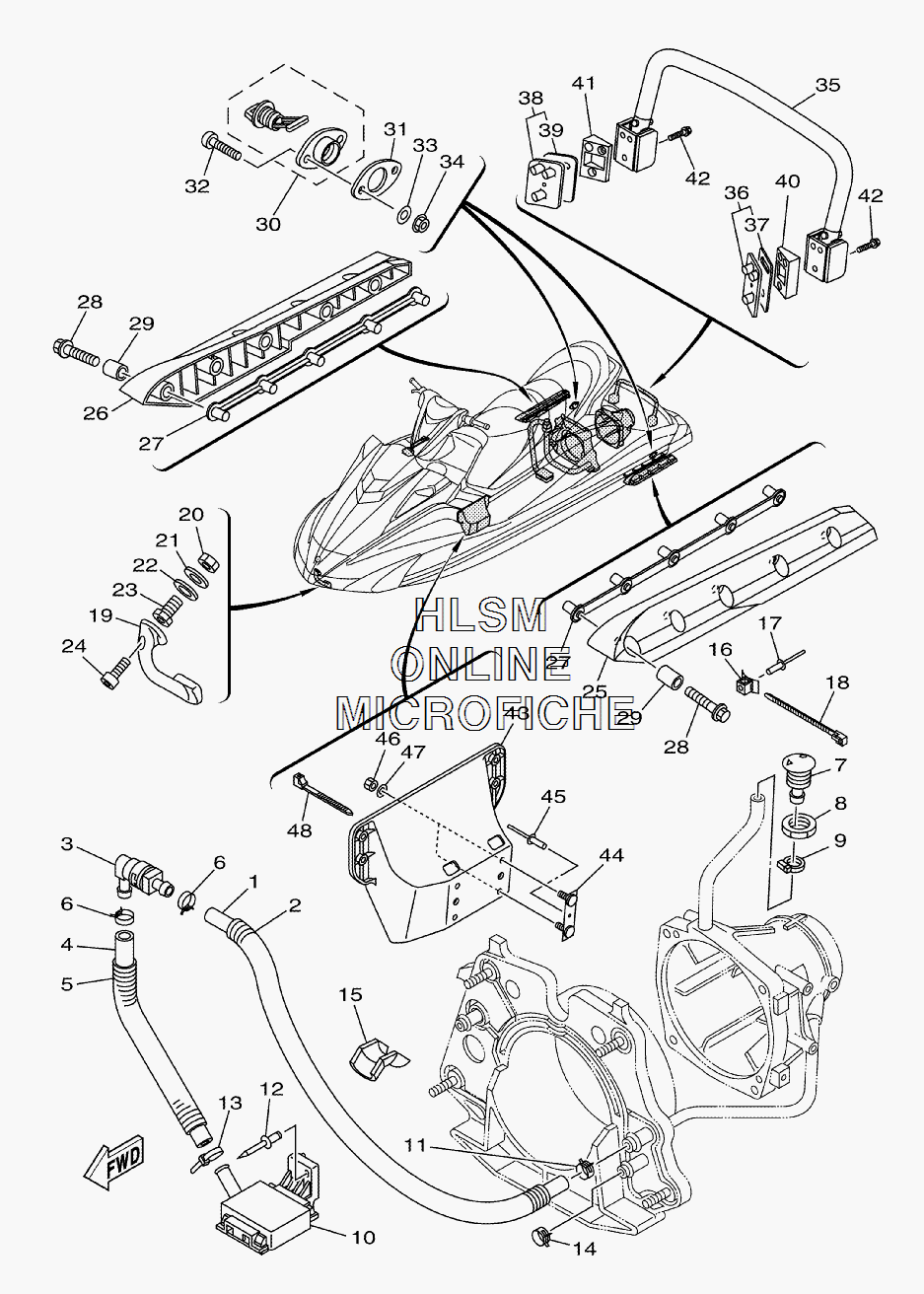

HULL FITTINGS W/ SPONSONS для Yamaha FX SUPER HO - 2008 года выпуска
-
№АртикулНазвание
-
190445-20804-00 HOSE (L860)HOSE (L860)
-
290446-27M73-00 HOSE (L700)HOSE (L700)
-
368N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
490445-20800-00 HOSE (L500)HOSE (L500)
-
590446-27M55-00 TUBE (L400)TUBE (L400)
-
690467-18804-00 CLIPCLIP
-
7F1W-U269B-00-00 SPOUTSPOUT
-
8EU0-61652-00-00 NUTNUT
-
990601-118UF-00 NYLON CLIP 1NYLON CLIP 1
-
10F1B-U761D-02-00 STRAINER, BILGESTRAINER, BILGE
-
1190467-21800-00 CLIP, SCISSORCLIP, SCISSOR
-
1290267-489U8-00 RIVET, BLINDRIVET, BLIND
-
1390601-200U1-00 BAND HOSE 50BAND HOSE 50
-
1490467-200A0-00 CLIPCLIP
-
15F1S-U828H-01-00 TRIM, 1TRIM, 1
-
1690600-91736-00 CLAMP COMP.CLAMP COMP.
-
1790267-48802-00 RIVET, BLINDRIVET, BLIND
-
1890464-32801-00 CLAMPCLAMP
-
19F1K-61624-00-00 BOWEYE 1BOWEYE 1
-
2099780-12600-00 NUT. HEX. (COARSE)NUT. HEX. (COARSE)
-
2192990-12200-00 WASHER, PLAINWASHER, PLAIN
-
22F0X-61637-00-00 WASHERWASHER
-
23F0X-61652-00-00 NUT (BOLT/NUT)NUT (BOLT/NUT)
-
2490110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
25F1S-U883N-01-00 STABILIZER LH (BLACK)STABILIZER LH (BLACK)
-
26F1S-U883P-01-00 STABILIZER RH (BLACK)STABILIZER RH (BLACK)
-
27F1X-U883T-00-00 BRACKET, STABILIZERBRACKET, STABILIZER
-
2890105-08860-00 BOLT, FLANGEBOLT, FLANGE
-
29F1K-U8169-00-00 SPACERSPACER
-
30F1S-U2280-00-00 DRAIN PLUG ASSY.DRAIN PLUG ASSY.
-
31F1S-U2285-00-00 PACKING, DRAINPACKING, DRAIN
-
329788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
339299R-05200-00 WASHERWASHER
-
349572R-05300-00 NUT, FLANGENUT, FLANGE
-
35F1W-U278A-01-00 LADDER, STEP ASSYLADDER, STEP ASSY
-
36F1X-U278F-01-00 BRACKET, LADDER LHBRACKET, LADDER LH
-
37F1X-U278H-10-00 ...PACKING, BRACKET 1...PACKING, BRACKET 1
-
38F1X-U278G-01-00 BRACKET, LADDER RHBRACKET, LADDER RH
-
39F1X-U278H-10-00 ...PACKING, BRACKET 1...PACKING, BRACKET 1
-
40F1X-U278K-00-00 BRACKET 1BRACKET 1
-
41F1X-U278L-00-00 BRACKET 2BRACKET 2
-
4290119-08844-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
43F1W-U8572-01-00 BRACKET 2BRACKET 2
-
44F1K-U826C-02-00 BRACKETBRACKET
-
4590267-489U1-00 RIVET, BLINDRIVET, BLIND
-
469572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
479299R-08200-00 WASHERWASHER
-
4890464-32801-00 CLAMPCLAMP
