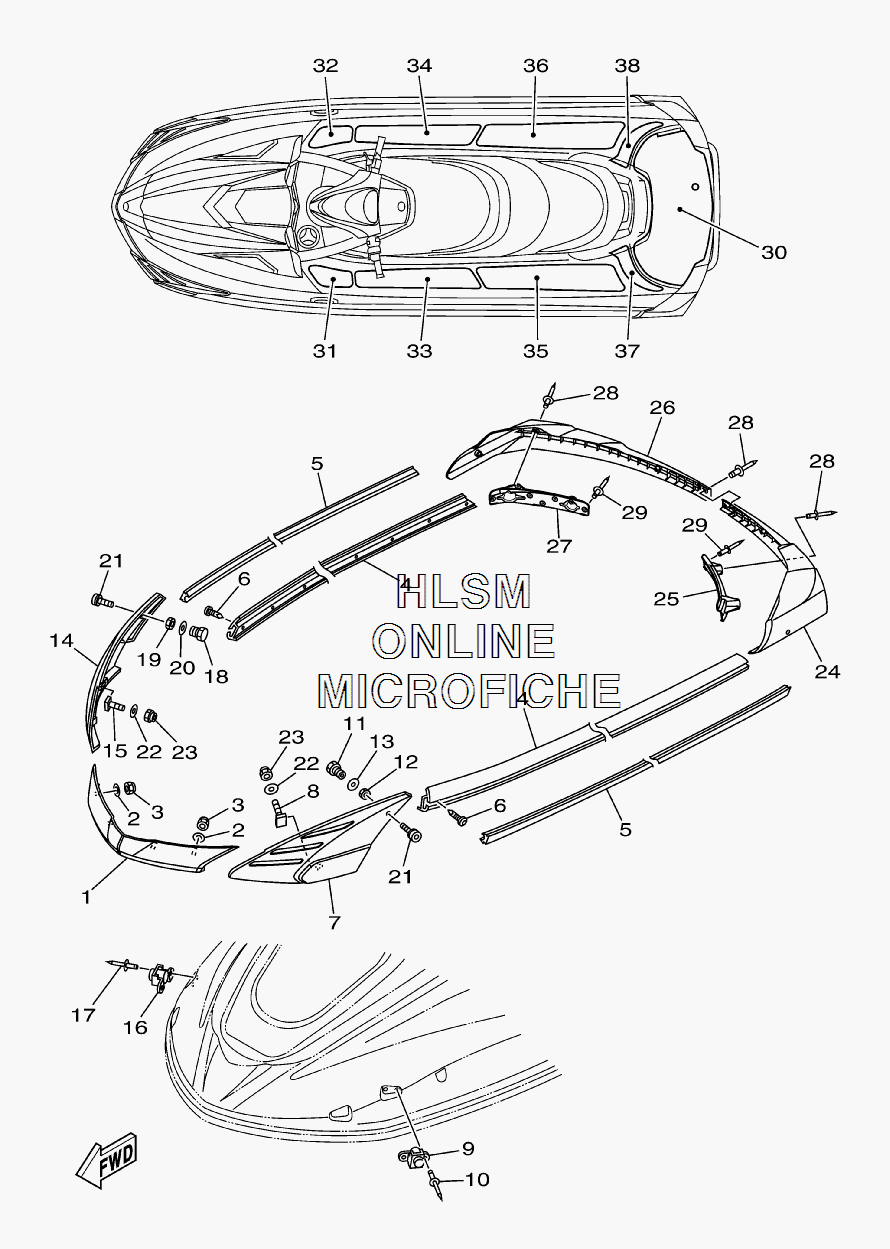

BUMBER W/ GUNWALE MAT для Yamaha FX SUPER HO - 2008 года выпуска
-
№АртикулНазвание
-
1F1W-U2501-10-00 BOW GUNWALE COMP.BOW GUNWALE COMP.
-
29299R-06200-00 WASHERWASHER
-
39572R-06300-00 NUT, NYLONNUT, NYLON
-
4F1B-U2512-00-00 GUNWALE, SIDE (LIGHT SILVER)GUNWALE, SIDE (LIGHT SILVER)
-
5F1B-U2519-10-00 INNER, GUNWALE (BLACK)INNER, GUNWALE (BLACK)
-
690169-059U1-00 SCREW, TAPPINGSCREW, TAPPING
-
7F1W-U252E-10-00 JOINT, GUNWALE LHJOINT, GUNWALE LH
-
8F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
9F1W-U250B-00-00 GROMMET ASSYGROMMET ASSY
-
1090267-489U6-00 RIVET, BLINDRIVET, BLIND
-
11F1W-62873-00-00 NUT, SPECIALNUT, SPECIAL
-
1295380-14700-00 NUTNUT
-
13F1W-62157-00-00 PACKINGPACKING
-
14F1W-U252F-10-00 JOINT, GUNWALE RHJOINT, GUNWALE RH
-
15F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
16F1W-U250B-00-00 GROMMET ASSYGROMMET ASSY
-
1790267-489U6-00 RIVET, BLINDRIVET, BLIND
-
18F1W-62873-00-00 NUT, SPECIALNUT, SPECIAL
-
1995380-14700-00 NUTNUT
-
20F1W-62157-00-00 PACKINGPACKING
-
2190111-06114-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
229299R-06200-00 WASHERWASHER
-
239572R-06300-00 NUT, NYLONNUT, NYLON
-
24F1W-U251D-10-00 GUNWALE, STERN 1GUNWALE, STERN 1
-
25F1W-U251L-01-00 BRACKET, GUNWALE 1BRACKET, GUNWALE 1
-
26F1W-U251E-10-00 GUNWALE, STERN 2GUNWALE, STERN 2
-
27F1W-U251M-01-00 BRACKET, GUNWALE 2BRACKET, GUNWALE 2
-
2890267-48825-00 RIVET, BLINDRIVET, BLIND
-
2990267-489U8-00 RIVET, BLINDRIVET, BLIND
-
30F1W-U3581-00-00 MAT, UPPER (DARK GRAY)MAT, UPPER (DARK GRAY)
-
31F1W-U351H-00-00 MAT, STEP 1 (DARK GRAY)MAT, STEP 1 (DARK GRAY)
-
32F1W-U351J-00-00 MAT, STEP 2 (DARK GRAY)MAT, STEP 2 (DARK GRAY)
-
33F1W-U351K-00-00 MAT, STEP 3 (DARK GRAY)MAT, STEP 3 (DARK GRAY)
-
34F1W-U351M-00-00 MAT, STEP 4 (DARK GRAY)MAT, STEP 4 (DARK GRAY)
-
35F1W-U351N-00-00 MAT, STEP 5 (DARK GRAY)MAT, STEP 5 (DARK GRAY)
-
36F1W-U351P-00-00 MAT, STEP 6 (DARK GRAY)MAT, STEP 6 (DARK GRAY)
-
37F1W-U351R-00-00 MAT, STEP 7 (DARK GRAY)MAT, STEP 7 (DARK GRAY)
-
38F1W-U351S-00-00 MAT, STEP 8MAT, STEP 8
