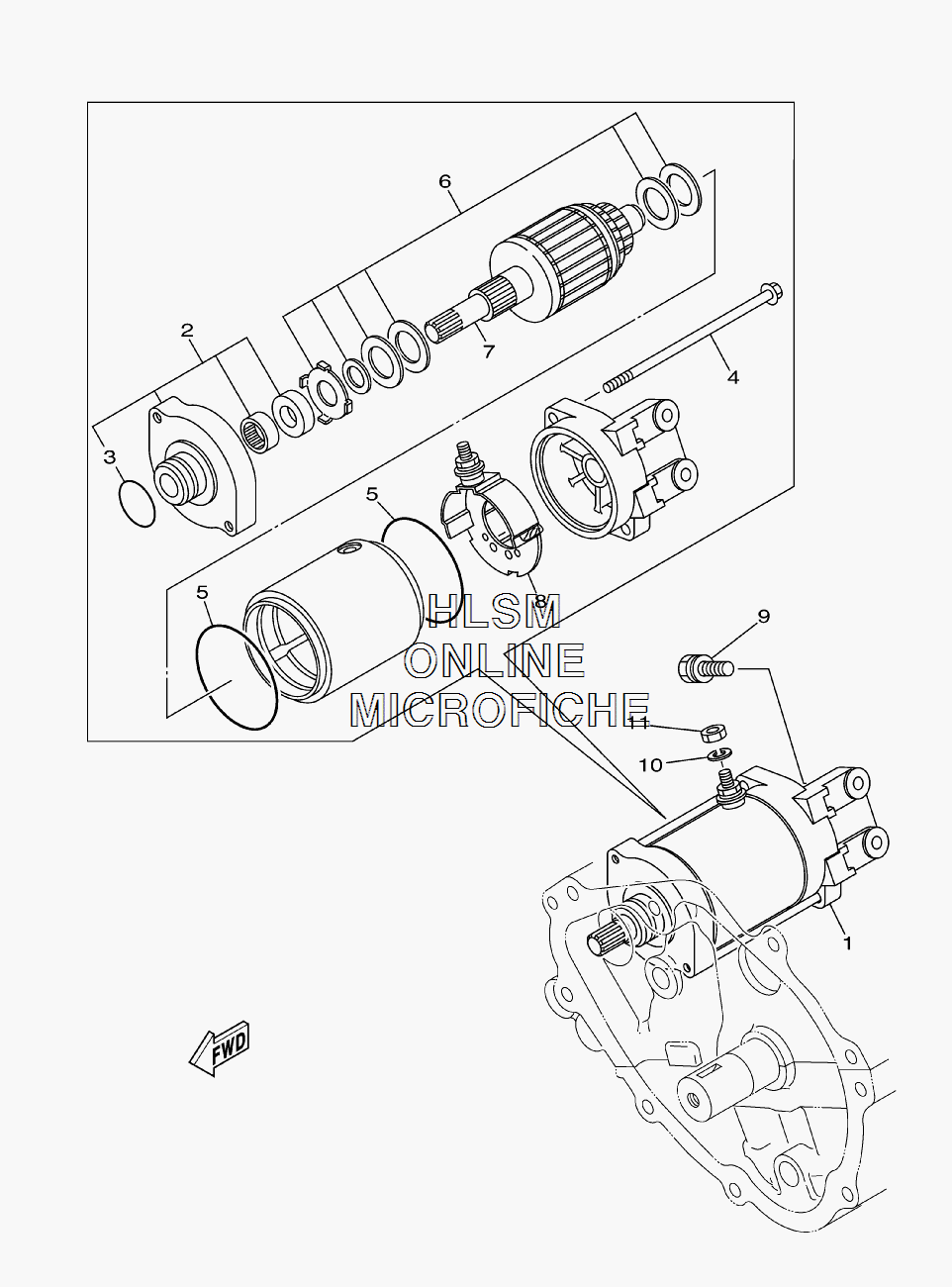

STARTING MOTOR для Yamaha FX CRUISER HO 3-PASS - 2008 года выпуска
-
№АртикулНазвание
-
160E-81800-00-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
26M6-81830-00-00 ...FRONT BRACKET ASSY...FRONT BRACKET ASSY
-
31FK-81847-00-00 ...O-RING...O-RING
-
46M6-81826-00-00 ...BOLT...BOLT
-
511H-81844-00-00 ...GASKET...GASKET
-
63AJ-81809-00-00 ...WASHER KIT...WASHER KIT
-
76M6-81850-00-00 ...ARMATURE ASSY...ARMATURE ASSY
-
86M6-81840-10-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
997513-08530-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1092990-06100-00 WASHER, SPRINGWASHER, SPRING
-
1195380-06700-00 NUTNUT
