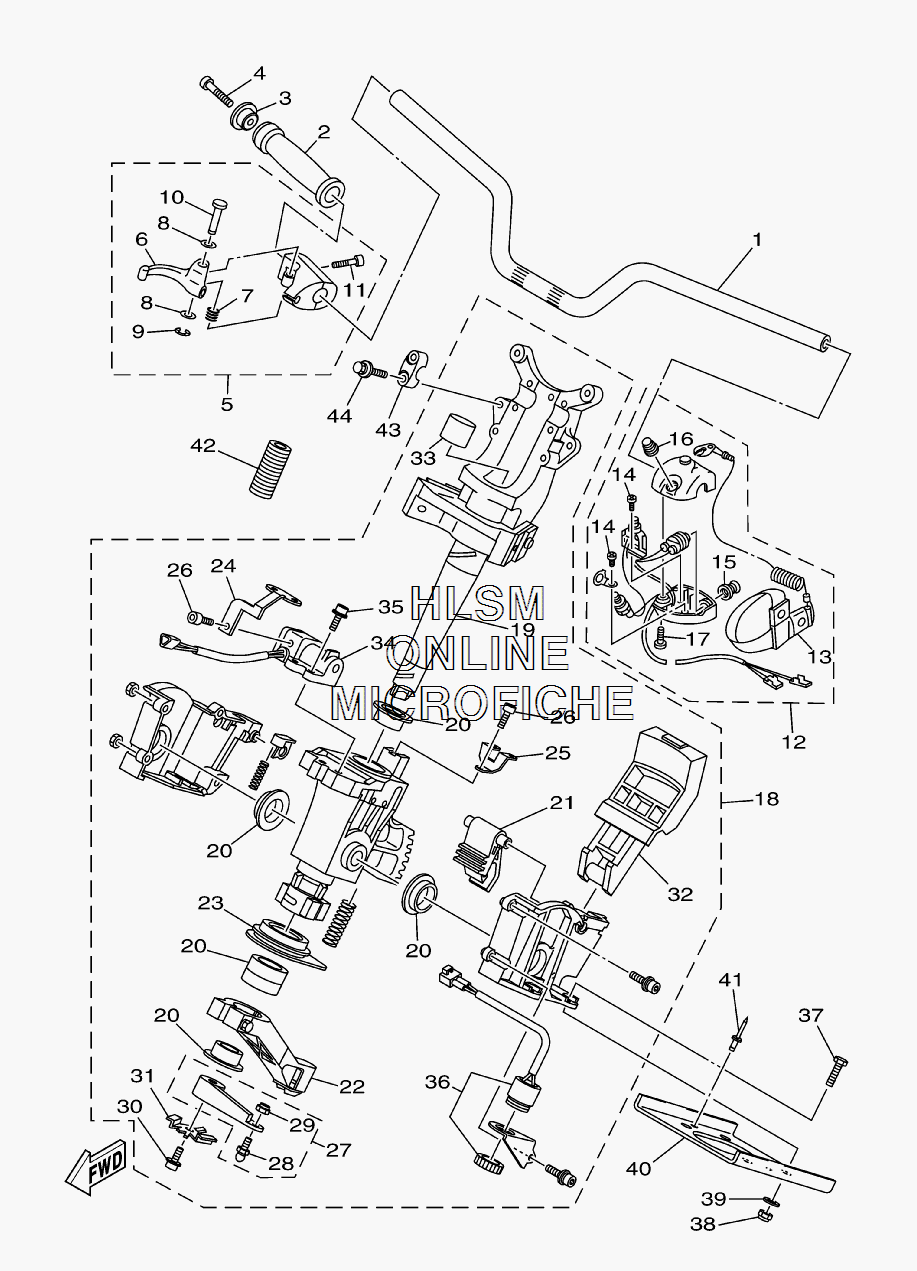

HANDLEBAR W/ CONTROLS - STEERING COLUMN для Yamaha FX CRUISER HO 3-PASS - 2008 года выпуска`
-
№АртикулНазвание
-
1F1S-61552-00-00 HANDLEHANDLE
-
2GP7-U155D-01-00 GRIP, HANDLEGRIP, HANDLE
-
3F1S-U155F-00-00 GRIP, ENDGRIP, END
-
490110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5F0D-67250-10-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
6F0D-67255-02-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
7EW2-67256-00-00 ...SPRING...SPRING
-
8EW2-67258-01-00 ...WASHER...WASHER
-
9EW2-67259-01-00 ...E-RING...E-RING
-
10F0D-67257-00-00 ...SHAFT...SHAFT
-
11F1X-6725F-01-00 ...BOLT, THROTTLE...BOLT, THROTTLE
-
12F1S-68310-01-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
13EW2-68348-00-00 ...LANYARD, STOP SWITCH...LANYARD, STOP SWITCH
-
1497880-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
15FK7-68312-02-00 ...STOP BUTTON COMP...STOP BUTTON COMP
-
16FK7-68313-02-00 ...START BUTTON COMP....START BUTTON COMP.
-
1797880-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
18F1W-61400-10-00 STEERING MASTER ASSYSTEERING MASTER ASSY
-
19F1W-67410-10-00 ...SHAFT ASSY...SHAFT ASSY
-
20F1W-6773D-00-00 ...TUBE & BUSHING SET...TUBE & BUSHING SET
-
21F1S-61782-00-00 ...LOCK 1...LOCK 1
-
22F1S-6146A-00-00 ...CABLE STOPPER ASSY....CABLE STOPPER ASSY.
-
23F1S-6143C-00-00 ...SEAL, RUBBER...SEAL, RUBBER
-
24F1W-65938-00-00 ...STAY 1...STAY 1
-
25F1S-65939-00-00 ...STAY 2...STAY 2
-
26F1B-613C1-00-00 ...SCREW, OVAL HEAD...SCREW, OVAL HEAD
-
27F1S-6153R-01-00 ...ARM ASSY....ARM ASSY.
-
28EU0-61461-02-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
2995720-06300-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
30F1W-61355-00-00 ...BOLT...BOLT
-
31F1W-6142B-00-00 ...PLATE, RETAINING...PLATE, RETAINING
-
32F1W-6151M-00-00 ...LEVER ASSY...LEVER ASSY
-
33F1W-61435-00-00 ...SEAL, PIPE 30...SEAL, PIPE 30
-
34F1W-68303-00-00 ...SENSOR ASSY...SENSOR ASSY
-
35F1S-61355-00-00 ...BOLT...BOLT
-
36F1S-68341-00-00 ...BUZZER...BUZZER
-
3797080-08035-00 BOLTBOLT
-
389572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
3990201-10801-00 WASHER, PLATEWASHER, PLATE
-
40F1X-U1554-00-00 PLATE, RETAININGPLATE, RETAINING
-
4190267-489U6-00 RIVET, BLINDRIVET, BLIND
-
4290447-22803-00 HOSE, WITH SPRINGHOSE, WITH SPRING
-
43EU0-23814-30-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
4490119-089UU-00 BOLT, WITH WASHERBOLT, WITH WASHER
