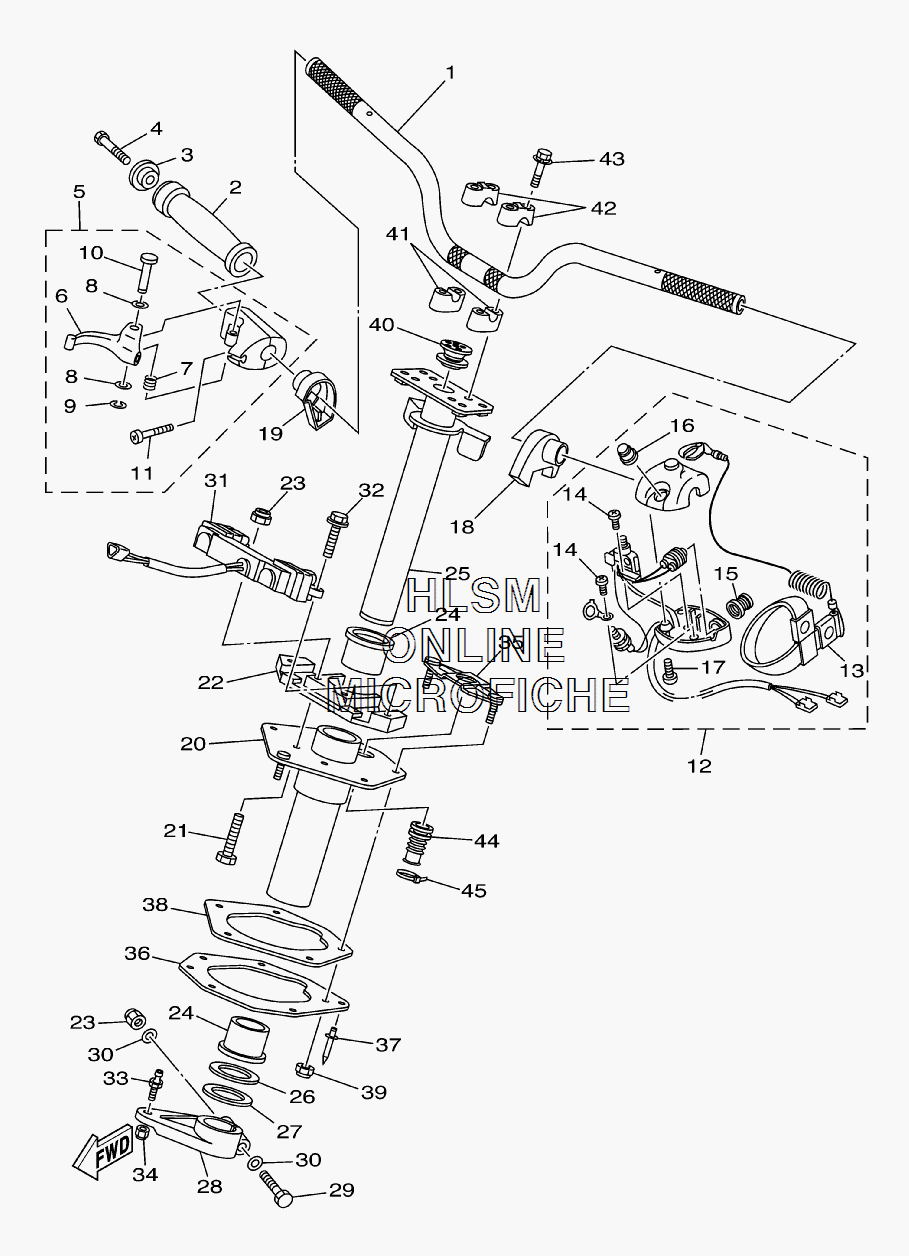

HANDLEBAR W/ CONTROLS - STEERING COLUMN для Yamaha GP1300R 2-PASS - 2007 года выпуска`
-
№АртикулНазвание
-
1F0X-61552-00-00 HANDLEHANDLE
-
2GP7-U155D-00-00 GRIP, HANDLEGRIP, HANDLE
-
3GP7-U155F-00-00 GRIP, ENDGRIP, END
-
490110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5F0D-67250-03-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
6F0D-67255-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
7EW2-67256-00-00 ...SPRING...SPRING
-
8EW2-67258-01-00 ...WASHER...WASHER
-
9EW2-67259-01-00 ...E-RING...E-RING
-
10F0D-67257-00-00 ...SHAFT...SHAFT
-
1198580-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
12FK7-68310-07-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
13EW2-68348-00-00 ...LANYARD, STOP SWITCH...LANYARD, STOP SWITCH
-
1497880-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
15FK7-68312-02-00 ...STOP BUTTON COMP...STOP BUTTON COMP
-
16FK7-68313-02-00 ...START BUTTON COMP....START BUTTON COMP.
-
1797880-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
18F1G-U143G-00-00 SPACERSPACER
-
19F1G-U143H-00-00 SPACER 2SPACER 2
-
20F1G-6152M-11-00 HOUSING ASSYHOUSING ASSY
-
2190101-08011-00 BOLTBOLT
-
22F1G-6146H-01-00 SPACER, BRACKETSPACER, BRACKET
-
2395720-08300-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
24F0X-6141B-00-00 BEARING, COLUMNBEARING, COLUMN
-
25F1G-61541-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
26F0X-6153P-00-00 WASHERWASHER
-
27F0X-6153P-10-00 WASHERWASHER
-
28F0X-6151B-00-00 ARM, STEERINGARM, STEERING
-
2990101-08003-00 BOLTBOLT
-
3092990-08600-00 WASHER, PLATEWASHER, PLATE
-
31F1B-68303-10-00 SENSOR ASSYSENSOR ASSY
-
3290119-08925-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
33EU0-61461-02-00 STUD, JOINT BALLSTUD, JOINT BALL
-
3495720-06300-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
35F1G-61596-00-00 PLATEPLATE
-
36F1G-6133B-01-00 PLATE, BRACKETPLATE, BRACKET
-
3790267-489U6-00 RIVET, BLINDRIVET, BLIND
-
38F1G-6143C-00-00 SEAL, RUBBERSEAL, RUBBER
-
399572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
40F1G-61469-00-00 PACKING, STEERING COLUMNPACKING, STEERING COLUMN
-
41EU0-23814-01-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
42EU0-23814-30-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
4390119-08824-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
44F0D-6822E-00-00 GROMMETGROMMET
-
4590464-32801-00 CLAMPCLAMP
