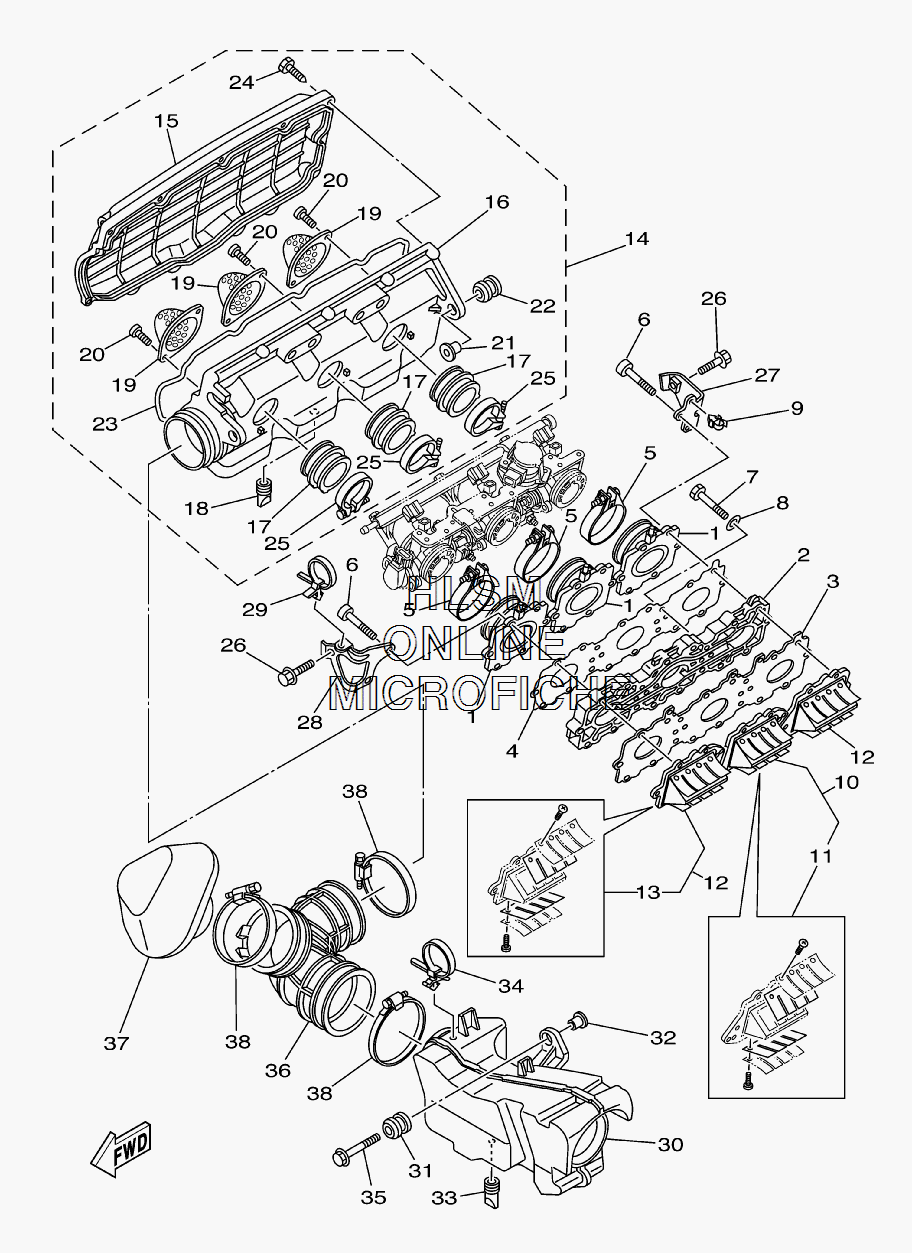

AIR SILENCER W/ INTAKE для Yamaha GP1300R 2-PASS - 2007 года выпуска
-
№АртикулНазвание
-
160T-13555-00-00 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
260T-14263-00-94 PLATE, BALANCEPLATE, BALANCE
-
360T-13624-00-94 PLATE, REED VALVEPLATE, REED VALVE
-
460T-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
590450-73001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
690110-06081-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
797013-06040-00 BOLTBOLT
-
892903-06600-00 WASHER, PLATEWASHER, PLATE
-
990464-14M55-00 CLAMPCLAMP
-
1060T-13610-00-00 REED VALVE ASSYREED VALVE ASSY
-
1160T-W0004-00-00 ...REED SET...REED SET
-
1260T-13620-00-00 REED VALVE ASSYREED VALVE ASSY
-
1360T-W0004-00-00 ...REED SET...REED SET
-
1460T-14480-11-00 COVER SUB ASSYCOVER SUB ASSY
-
1560T-14287-11-00 ...COVER, THROTTLE BODY 1...COVER, THROTTLE BODY 1
-
1660T-14288-00-00 ...COVER, THROTTLE BODY 2...COVER, THROTTLE BODY 2
-
1760T-14453-00-00 ...JOINT, AIR CLEANER 1...JOINT, AIR CLEANER 1
-
1867X-42717-00-00 ...RUBBER, SEAL 2...RUBBER, SEAL 2
-
1960T-14451-00-00 ...ELEMENT, AIR CLEANER...ELEMENT, AIR CLEANER
-
2097780-50612-00 ...SCREW, TAPPING...SCREW, TAPPING
-
2190387-08M37-00 ...COLLAR...COLLAR
-
2290480-22M15-00 ...GROMMET...GROMMET
-
2360T-14457-00-00 ...SEAL...SEAL
-
2497780-60430-00 ...SCREW, TAPPING...SCREW, TAPPING
-
2590450-57003-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
2690119-08063-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2760T-14413-00-00 STAYSTAY
-
2860T-14414-00-00 STAY 2STAY 2
-
2990464-50001-00 CLAMPCLAMP
-
3060T-14440-00-00 SILENCER ASSY, INTAKESILENCER ASSY, INTAKE
-
3190480-22M15-00 GROMMETGROMMET
-
3290387-08M37-00 COLLARCOLLAR
-
3367X-42717-00-00 RUBBER, SEAL 2RUBBER, SEAL 2
-
3490464-50001-00 CLAMPCLAMP
-
3590119-08M22-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3660T-14419-00-00 PIPEPIPE
-
3760T-1441J-00-00 PIPE, SILENCERPIPE, SILENCER
-
3890460-99M23-00 CLAMP, HOSECLAMP, HOSE
