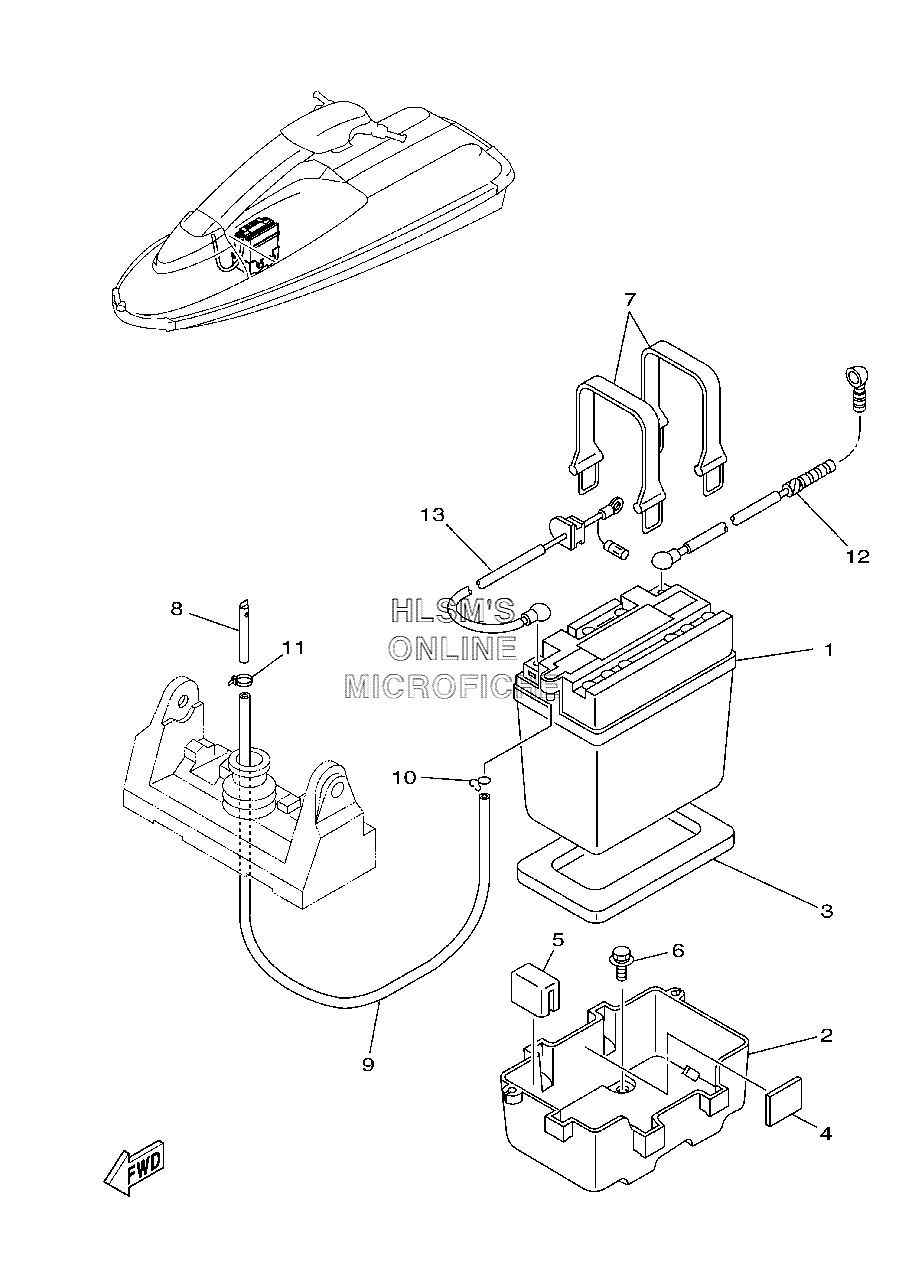

ELECTRICAL 2 для Yamaha SUPERJET - 2006 года выпуска`
-
№АртикулНазвание
-
1EU0-82110-09-00 BATTERY ASSY (YB16CL-B)BATTERY ASSY (YB16CL-B)
-
2EW2-68211-00-00 CASE, BATTERYCASE, BATTERY
-
3EU0-68221-00-00 PAD, BATTERY 1PAD, BATTERY 1
-
4EU0-68221-30-00 PAD, BATTERY 2PAD, BATTERY 2
-
5EW2-68221-00-00 PAD, BATTERYPAD, BATTERY
-
690119-06920-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
7EU0-68218-04-00 BAND, BATTERYBAND, BATTERY
-
8EW2-62149-00-00 PIPE, VENTILATION 1PIPE, VENTILATION 1
-
9EU0-67856-40-00 HOSE, AIRVENT 3HOSE, AIRVENT 3
-
1090467-08M10-00 CLIP, SCISSORCLIP, SCISSOR
-
1190465-11M10-00 CLAMP (ZIP TIES)CLAMP (ZIP TIES)
-
1264V-82117-00-00 WIRE, LEADWIRE, LEAD
-
136R7-82117-11-00 WIRE, LEADWIRE, LEAD
