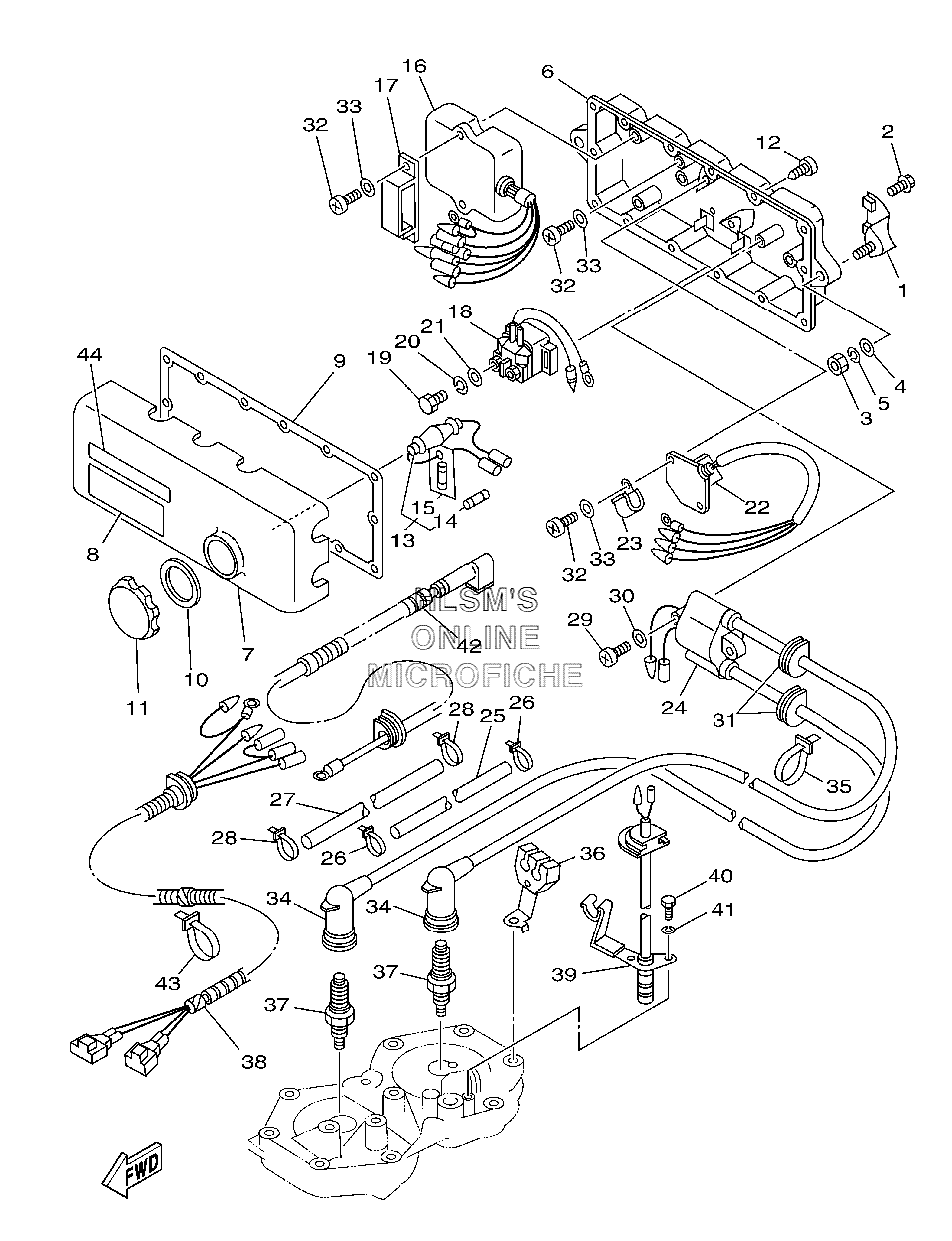

ELECTRICAL 1 для Yamaha SUPERJET - 2006 года выпуска`
-
№АртикулНазвание
-
1EW2-68156-00-00 BRACKET, ELECTRIC BOXBRACKET, ELECTRIC BOX
-
290119-06908-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
395380-08600-00 NUTNUT
-
492990-08200-00 WASHER, PLAINWASHER, PLAIN
-
592990-08100-00 WASHER, SPRINGWASHER, SPRING
-
66M6-8552A-01-8P HOUSINGHOUSING
-
76M6-8552E-01-00 COVER, CASECOVER, CASE
-
86B6-83623-00-00 MARK 3MARK 3
-
96M6-81921-00-00 GASKET, TERMINALGASKET, TERMINAL
-
106M6-81844-00-00 GASKETGASKET
-
116M6-8132W-00-00 CAPCAP
-
1297780-60525-00 SCREW, TAPPINGSCREW, TAPPING
-
136K8-82150-01-00 FUSE HOLDER ASSYFUSE HOLDER ASSY
-
146G1-82151-00-00 ...FUSE (10A)...FUSE (10A)
-
156K8-82159-00-00 ...FUSE SPEAR (10A)...FUSE SPEAR (10A)
-
1662T-85540-01-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
1790464-06M29-00 CLAMPCLAMP
-
1868N-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
1997095-06010-00 BOLTBOLT
-
2092995-06100-00 WASHER, SPRINGWASHER, SPRING
-
2192995-06600-00 WASHERWASHER
-
226M6-81960-A0-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2390465-06M86-00 CLAMPCLAMP
-
2462E-85570-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
256R7-82351-00-00 TUBE, CORDTUBE, CORD
-
2690465-11M10-00 CLAMP (ZIP TIES)CLAMP (ZIP TIES)
-
276R7-82352-00-00 TUBE, CORD 2TUBE, CORD 2
-
2890465-11M10-00 CLAMP (ZIP TIES)CLAMP (ZIP TIES)
-
2997880-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3092990-06600-00 WASHER, PLATEWASHER, PLATE
-
3190480-06M43-00 GROMMETGROMMET
-
3297880-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3392990-06600-00 WASHER, PLATEWASHER, PLATE
-
3466T-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
3590465-11M10-00 CLAMP (ZIP TIES)CLAMP (ZIP TIES)
-
366R7-82361-01-00 CLAMP, CORDCLAMP, CORD
-
3794702-00040-00 PLUG, SPARK (NGK B7HS)PLUG, SPARK (NGK B7HS)
-
386R7-82553-01-00 EXTENSION, WIRE LEADEXTENSION, WIRE LEAD
-
396R7-82560-11-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
4097095-06016-00 BOLTBOLT
-
4192995-06100-00 WASHER, SPRINGWASHER, SPRING
-
4262E-82117-20-00 WIRE, LEADWIRE, LEAD
-
4390465-13M11-00 CLAMPCLAMP
-
4460E-83627-00-00 LABEL, CAUTION 7LABEL, CAUTION 7
