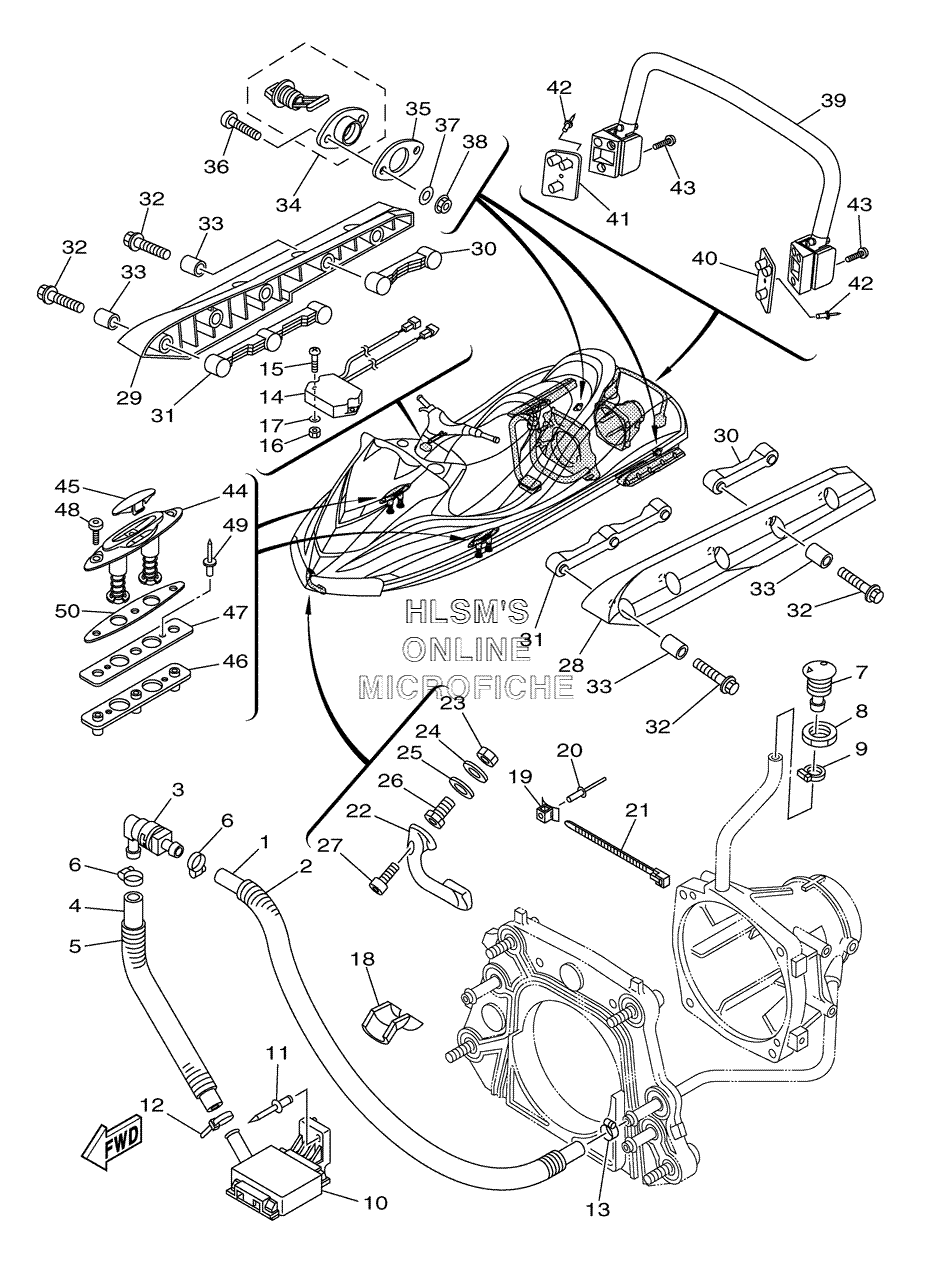

HULL FITTINGS W/ SPONSONS для Yamaha FX CRSR HO ANNIV 3-PERSON - 2006 года выпуска`
-
№АртикулНазвание
-
190445-20804-00 HOSE (L860)HOSE (L860)
-
290446-27M73-00 HOSE (L700)HOSE (L700)
-
368N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
490445-20800-00 HOSE (L500)HOSE (L500)
-
590446-27M55-00 TUBE (L400)TUBE (L400)
-
690601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
7FN8-6269B-00-00 SPOUTSPOUT
-
8EU0-61652-00-00 NUTNUT
-
990601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
10F1B-U761D-02-00 STRAINER, BILGESTRAINER, BILGE
-
1190267-489U8-00 RIVET, BLINDRIVET, BLIND
-
1290601-200U1-00 BANDBAND
-
1390467-200A0-00 CLIPCLIP
-
14F1X-U8K22-01-00 SENSOR, COMPASSSENSOR, COMPASS
-
159788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
169572R-05300-00 NUT, FLANGENUT, FLANGE
-
179299R-05200-00 WASHERWASHER
-
18F1S-U828H-01-00 TRIM, 1TRIM, 1
-
1990600-917U4-00 CLAMP COMP.CLAMP COMP.
-
2090267-48802-00 RIVET, BLINDRIVET, BLIND
-
2190464-32801-00 CLAMPCLAMP
-
22F1K-61624-00-00 BOWEYE 1BOWEYE 1
-
2399780-12600-00 NUT, HEX. (COARS)NUT, HEX. (COARS)
-
2492990-12200-00 WASHER, PLAINWASHER, PLAIN
-
25F0X-61637-00-00 WASHERWASHER
-
26F0X-61652-00-00 NUT (BOLT/NUT)NUT (BOLT/NUT)
-
2790110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
28F1S-U883N-01-00 STABILIZER LH (BLACK)STABILIZER LH (BLACK)
-
29F1S-U883P-01-00 STABILIZER RH (BLACK)STABILIZER RH (BLACK)
-
30F1F-U883T-02-00 BRACKET, STABILIZERBRACKET, STABILIZER
-
31F1B-U883T-02-00 BRACKET, STABILIZERBRACKET, STABILIZER
-
3290105-08860-00 BOLT, FLANGEBOLT, FLANGE
-
33F1K-U8169-00-00 SPACERSPACER
-
34F1S-U2280-00-00 DRAIN PLUG ASSY.DRAIN PLUG ASSY.
-
35F1S-U2285-00-00 PACKING, DRAINPACKING, DRAIN
-
369788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
379299R-05200-00 WASHERWASHER
-
389572R-05300-00 NUT, FLANGENUT, FLANGE
-
39F1X-U278A-00-00 LADDER, STEP ASSYLADDER, STEP ASSY
-
40F1X-U278F-00-00 BRACKET, LADDER LHBRACKET, LADDER LH
-
41F1X-U278G-00-00 BRACKET, LADDER RHBRACKET, LADDER RH
-
4290267-489U8-00 RIVET, BLINDRIVET, BLIND
-
4390111-08803-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
44F1X-U163A-01-00 CLEAT ASSY.CLEAT ASSY.
-
45F1X-U826D-00-00 COVERCOVER
-
46F1X-U826C-00-00 BRACKETBRACKET
-
47F1X-U2157-00-00 PACKINGPACKING
-
4890111-06805-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4990267-489U6-00 RIVET, BLINDRIVET, BLIND
-
50F1X-U2284-00-00 PACKINGPACKING
