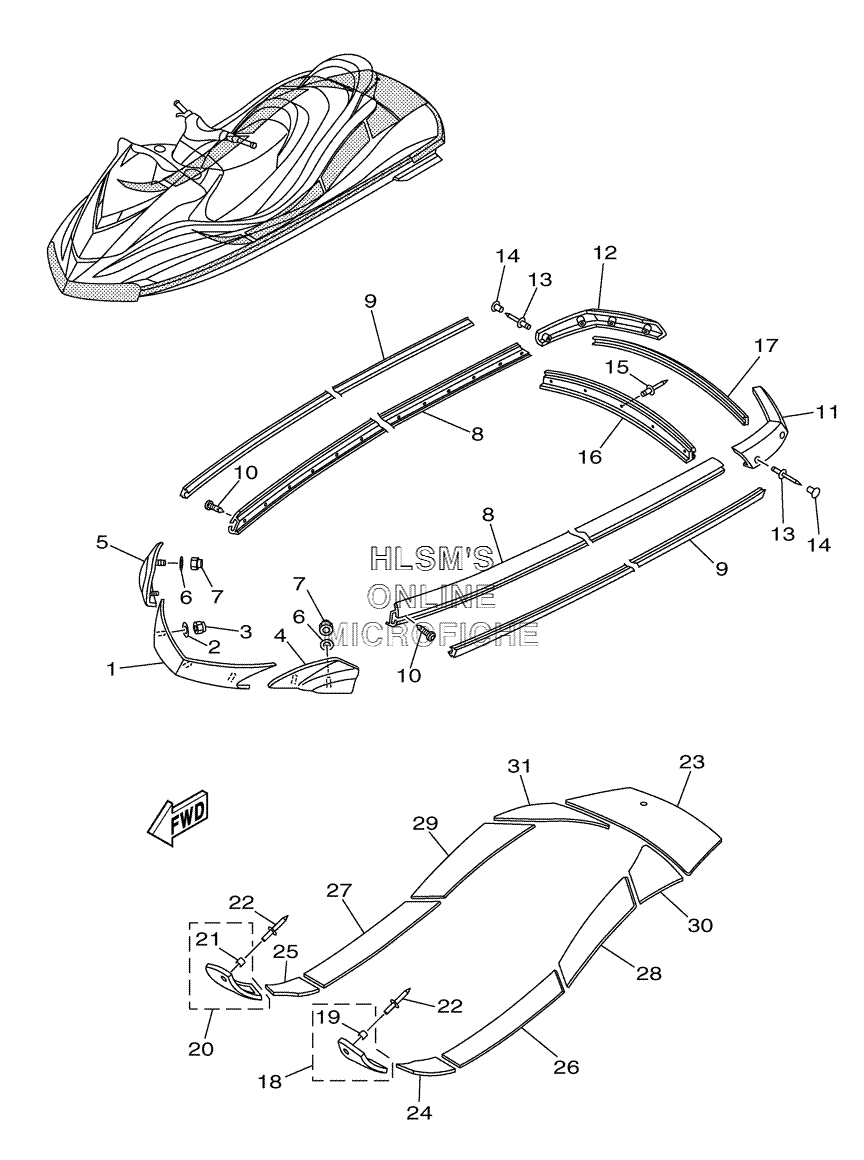

BUMBER W/ GUNWALE MAT для Yamaha FX CRSR HO ANNIV 3-PERSON - 2006 года выпуска

№

Артикул

Название
1

F1S-U2501-02-00 BOW GUNWALE COMP. (BLACK)

BOW GUNWALE COMP. (BLACK)
2

9299R-06200-00 WASHER

WASHER
3

9572R-06300-00 NUT, NYLON

NUT, NYLON
4

F1S-U252E-01-00 JOINT, GUNWALE LH (BLACK)

JOINT, GUNWALE LH (BLACK)
5

F1S-U252F-01-00 JOINT, GUNWALE RH (BLACK)

JOINT, GUNWALE RH (BLACK)
6

9299R-06200-00 WASHER

WASHER
7

9572R-06300-00 NUT, NYLON

NUT, NYLON
8

F1B-U2512-10-00 GUNWALE, SIDE (BLACK)

GUNWALE, SIDE (BLACK)
9

F1B-U2519-00-00 INNER, GUNWALE (LIGHT SILVER)

INNER, GUNWALE (LIGHT SILVER)
10

90169-059U1-00 SCREW,TAPPING

SCREW,TAPPING
11

F1B-U251D-10-00 GUNWALE, STERN 1 (BLACK)

GUNWALE, STERN 1 (BLACK)
12

F1B-U251E-10-00 GUNWALE, STERN 2 (BLACK)

GUNWALE, STERN 2 (BLACK)
13

90267-489UT-00 RIVET, BLIND

RIVET, BLIND
14

F0D-U352E-10-00 PLUG, MUSHROOM (BLACK)

PLUG, MUSHROOM (BLACK)
15

90267-489US-00 RIVET, BLIND

RIVET, BLIND
16

F1B-U252C-10-00 COVER, GUNWALE 1 (BLACK)

COVER, GUNWALE 1 (BLACK)
17

F1B-U252D-01-00 COVER, GUNWALE 2 (DARK GRAY)

COVER, GUNWALE 2 (DARK GRAY)
18

F1S-U350V-00-00 FOOT STEP ASSY., LH (BLACK)

FOOT STEP ASSY., LH (BLACK)
19

90387-06867-00 ...COLLAR

...COLLAR
20

F1S-U350W-00-00 FOOT STEP ASSY., RH (BLACK)

FOOT STEP ASSY., RH (BLACK)
21

90387-06867-00 ...COLLAR

...COLLAR
22

90267-48819-00 RIVET, BLIND

RIVET, BLIND
23

F1S-U3581-10-00 MAT, UPPER (GRAY)

MAT, UPPER (GRAY)
24

F1S-U351H-01-00 MAT, STEP 1 (GRAY)

MAT, STEP 1 (GRAY)
25

F1S-U351J-01-00 MAT, STEP 2 (GRAY)

MAT, STEP 2 (GRAY)
26

F1S-U351K-10-00 MAT, STEP 3 (GRAY)

MAT, STEP 3 (GRAY)
27

F1S-U351M-10-00 MAT, STEP 4 (GRAY)

MAT, STEP 4 (GRAY)
28

F1S-U351N-10-00 MAT, STEP 5 (GRAY)

MAT, STEP 5 (GRAY)
29

F1S-U351P-10-00 MAT, STEP 6 (GRAY)

MAT, STEP 6 (GRAY)
30

F1S-U351R-10-00 MAT, STEP 7 (GRAY)

MAT, STEP 7 (GRAY)
31

F1S-U351S-10-00 MAT, STEP 8 (GRAY)

MAT, STEP 8 (GRAY)
