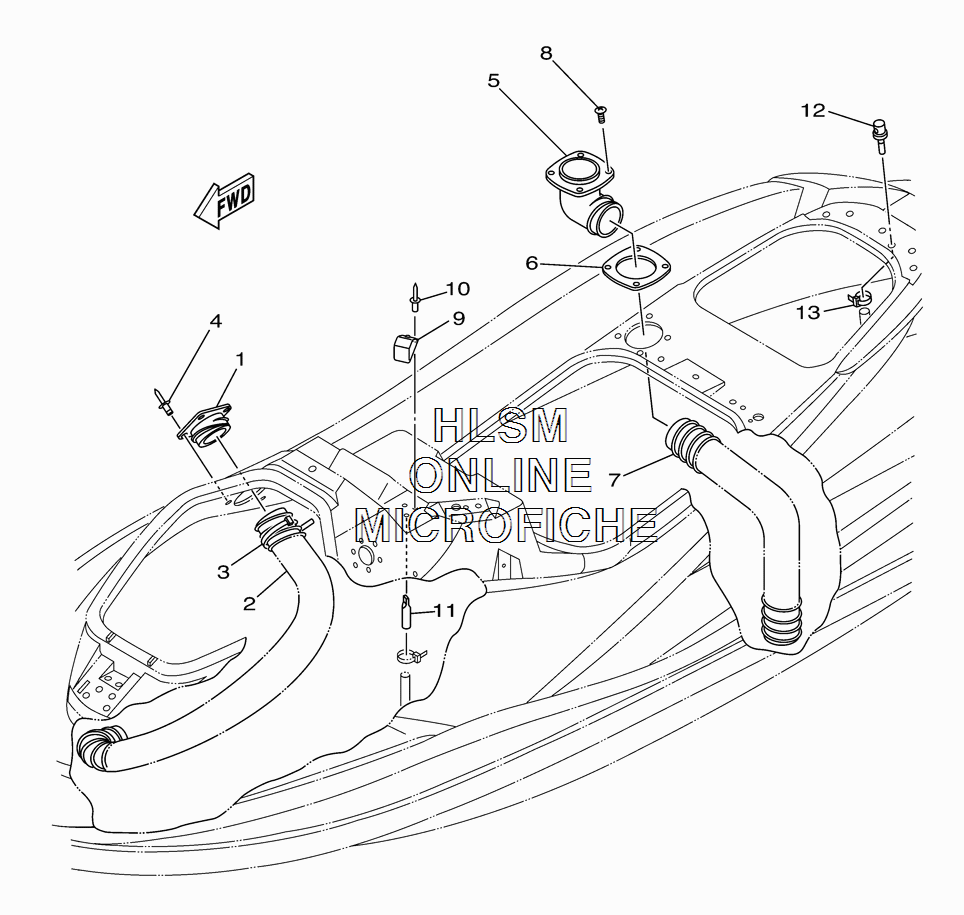

VENTILATION для Yamaha XLT1200 3-PASS - 2005 года выпуска`
-
№АртикулНазвание
-
1F0D-62127-00-00 BASE, AIR INTAKEBASE, AIR INTAKE
-
2F0D-U213F-05-00 HOSE, VENTILATOR 1HOSE, VENTILATOR 1
-
390464-99804-00 CLAMPCLAMP
-
490267-489UE-00 RIVET, BLINDRIVET, BLIND
-
5F0D-62139-00-00 VENTILATOR, OUTLETVENTILATOR, OUTLET
-
6F0V-U2118-00-00 SEAL, AIRINTAKE 2SEAL, AIRINTAKE 2
-
7F0D-U213G-04-00 HOSE, VENTILATOR 2HOSE, VENTILATOR 2
-
890149-05962-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
9GP7-62159-01-00 SOCKET, VENTILATIONSOCKET, VENTILATION
-
1090267-48802-00 RIVET, BLINDRIVET, BLIND
-
11EW2-62149-00-00 PIPE, VENTILATION 1PIPE, VENTILATION 1
-
12GJ3-6215F-00-00 NIPPLENIPPLE
-
1390465-11829-00 CLAMPCLAMP
