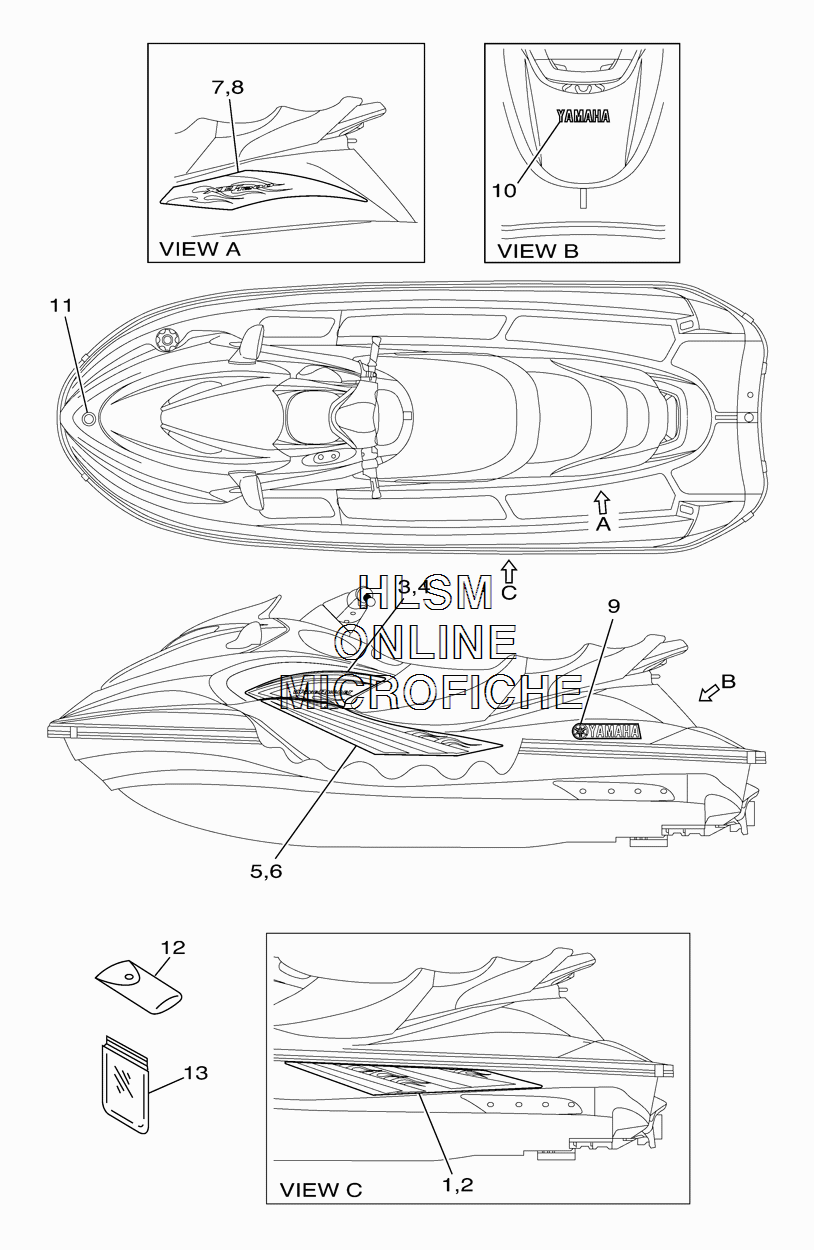

GRAPHICS для Yamaha XLT1200 3-PASS - 2005 года выпуска
-
№АртикулНазвание
-
1F0V-U417B-60-00 GRAPHIC 1 (LH)GRAPHIC 1 (LH)
-
2F0V-U417C-60-00 GRAPHIC 2 (RH)GRAPHIC 2 (RH)
-
3F0V-U417F-60-00 GRAPHIC 5 (LH)GRAPHIC 5 (LH)
-
4F0V-U417G-60-00 GRAPHIC 6 (RH)GRAPHIC 6 (RH)
-
5F0V-U417H-60-00 GRAPHIC 7 (LH)GRAPHIC 7 (LH)
-
6F0V-U417J-60-00 GRAPHIC 8 (RH)GRAPHIC 8 (RH)
-
7F0V-U417K-60-00 GRAPHIC 9 (LH)GRAPHIC 9 (LH)
-
8F0V-U417L-60-00 GRAPHIC B (RH)GRAPHIC B (RH)
-
9F0V-U411C-10-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
10GJ3-U4114-52-00 MARK, YAMAHA AMARK, YAMAHA A
-
11F1B-U411H-10-00 EMBLEM, TUNING FORKEMBLEM, TUNING FORK
-
12EU0-65986-00-00 TOOL SETTOOL SET
-
13EU0-65901-01-00 TOOL BAGTOOL BAG
