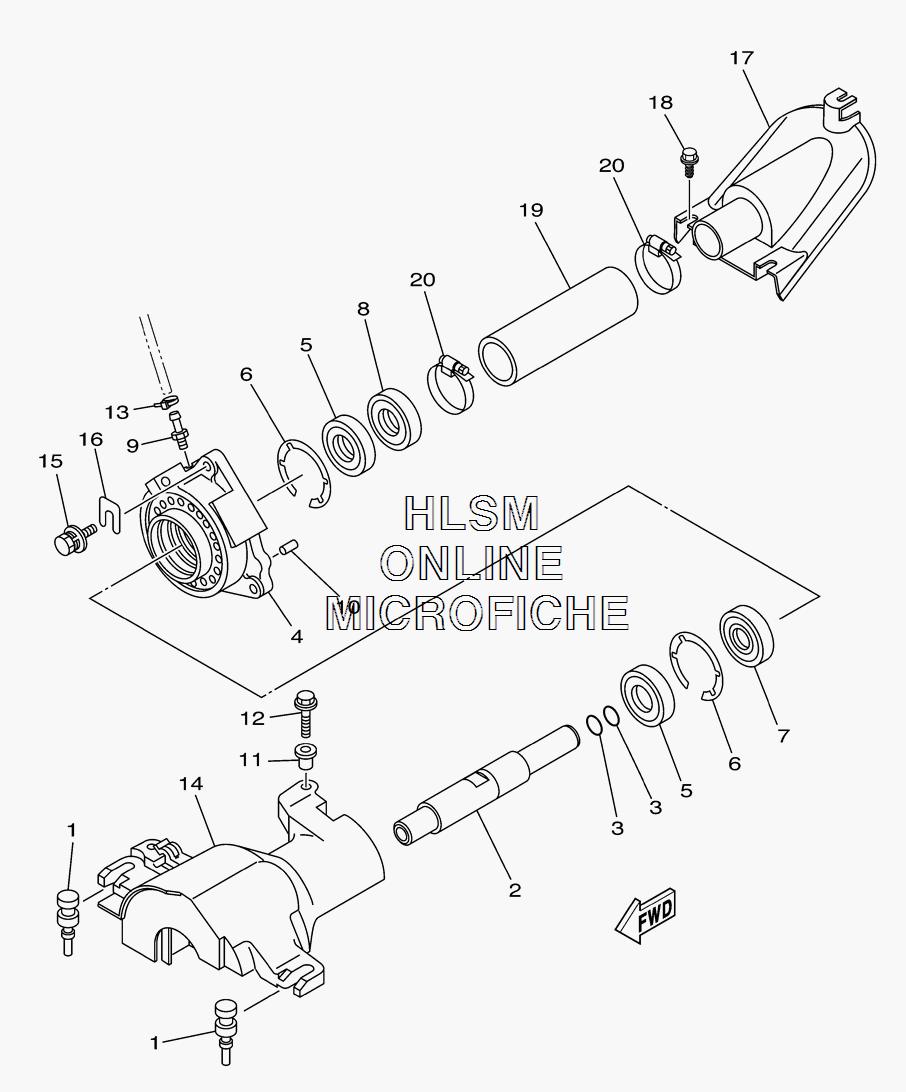

PROPULSION SYSTEM - INTERNAL для Yamaha GP1300R 2-PASS - 2005 года выпуска`
-
№АртикулНазвание
-
190480-06M46-00 GROMMETGROMMET
-
268N-51323-00-00 SHAFT, COUPLORSHAFT, COUPLOR
-
393210-19001-00 O-RINGO-RING
-
461X-45332-03-94 HOUSING, BEARINGHOUSING, BEARING
-
593101-25M55-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
693430-47M04-00 CIRCLIPCIRCLIP
-
793306-205U6-00 BEARINGBEARING
-
893101-25M56-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
961L-45378-00-00 NIPPLE, HOSENIPPLE, HOSE
-
1093606-12019-00 PIN, DOWELPIN, DOWEL
-
1190387-06M60-00 COLLARCOLLAR
-
1290119-069UD-00 BOLT WITH WASHERBOLT WITH WASHER
-
1390465-11829-00 CLAMPCLAMP
-
1466V-R1381-01-00 COVERCOVER
-
1590119-089UL-00 BOLT WITH WASHERBOLT WITH WASHER
-
16GD0-U7249-00-05 SHIM (T=0.5)SHIM (T=0.5)
-
17F0X-U883E-00-00 FITTING, THRU-HULLFITTING, THRU-HULL
-
1890149-069UA-00 SCREWSCREW
-
19F0X-U883B-01-00 PIPE, 1PIPE, 1
-
2090601-152U3-00 BAND, HOSE 52BAND, HOSE 52
