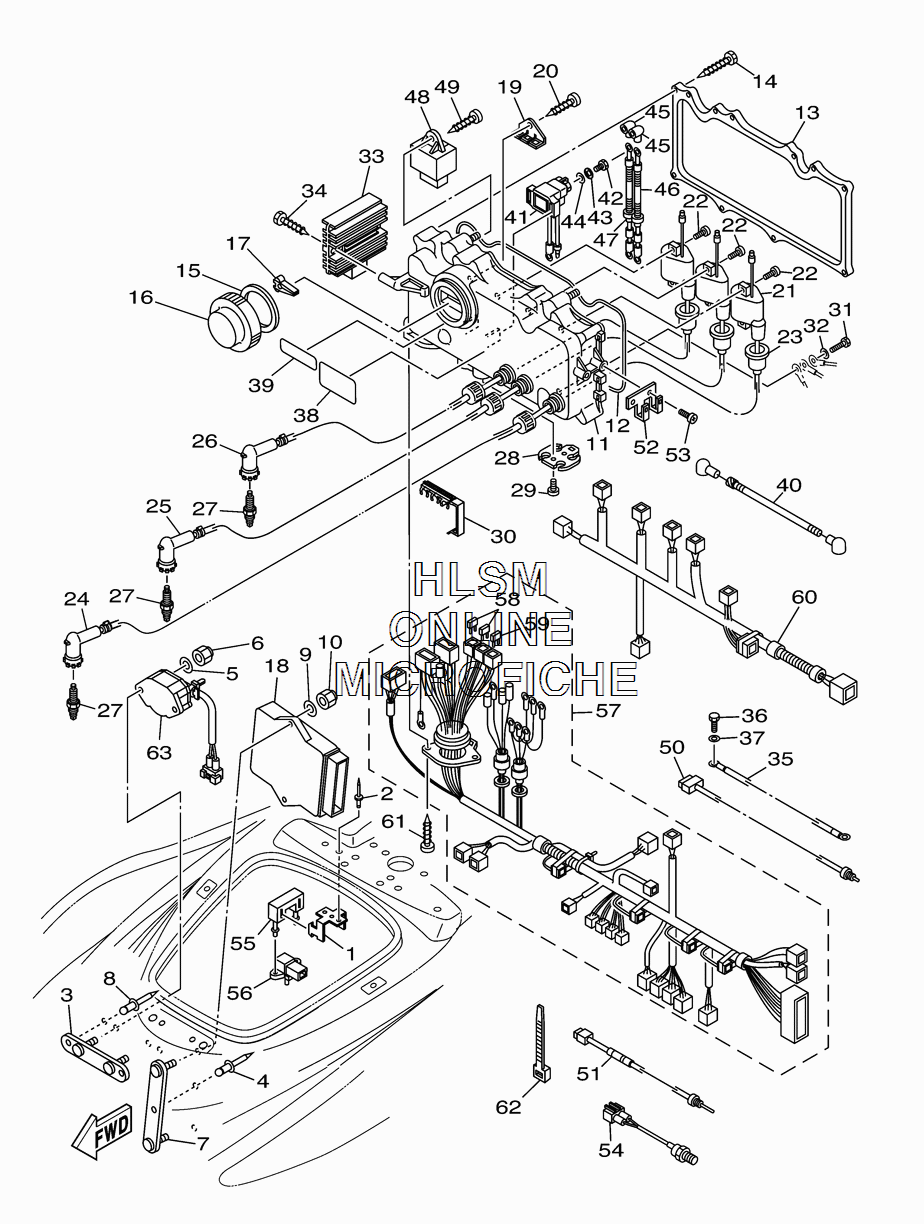

ELECTRICAL 1 для Yamaha GP1300R 2-PASS - 2005 года выпуска`
-
№АртикулНазвание
-
1FN8-67816-00-00 BRACKET, FUEL FILTERBRACKET, FUEL FILTER
-
290267-489U1-00 RIVET, BLINDRIVET, BLIND
-
3F1G-U824F-00-00 BRACKET, SENSORBRACKET, SENSOR
-
490267-489U6-00 RIVET, BLINDRIVET, BLIND
-
59299R-06200-00 WASHERWASHER
-
69572R-06300-00 NUT, NYLONNUT, NYLON
-
7F1G-U826C-00-00 BRACKETBRACKET
-
890267-489U6-00 RIVET, BLINDRIVET, BLIND
-
99299R-06200-00 WASHERWASHER
-
109572R-06300-00 NUT, NYLONNUT, NYLON
-
1160T-8552A-00-00 HOUSINGHOUSING
-
1260T-81921-00-00 GASKET, TERMINALGASKET, TERMINAL
-
1360T-8552E-00-00 COVER, CASECOVER, CASE
-
1497780-60430-00 SCREW, TAPPINGSCREW, TAPPING
-
1566V-81844-00-00 GASKETGASKET
-
1666V-8132W-00-00 CAPCAP
-
1767F-2812A-00-00 PULLER, FUSEPULLER, FUSE
-
1860T-8591A-20-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
1960E-82153-00-00 STAY, FUSE HOLDERSTAY, FUSE HOLDER
-
2097780-60516-00 SCREW, TAPPINGSCREW, TAPPING
-
2166V-85570-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
2297780-60525-00 SCREW, TAPPINGSCREW, TAPPING
-
2366V-82355-00-00 GROMMETGROMMET
-
2466V-82340-01-00 HIGH TENSION CORD ASSY 1HIGH TENSION CORD ASSY 1
-
2566V-82340-11-00 HIGH TENSION CORD ASSY 1HIGH TENSION CORD ASSY 1
-
2667X-82340-21-00 HIGH TENSION CORD ASSY 1HIGH TENSION CORD ASSY 1
-
2794702-00396-00 PLUG, SPARK (NGK BR8ES-11)PLUG, SPARK (NGK BR8ES-11)
-
2860T-85525-00-00 COVERCOVER
-
2997780-60425-00 SCREW, TAPPINGSCREW, TAPPING
-
3065U-81317-10-00 CLAMP, CORDCLAMP, CORD
-
3197095-06016-00 BOLTBOLT
-
3292995-06600-00 WASHERWASHER
-
3368V-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
3497780-60430-00 SCREW, TAPPINGSCREW, TAPPING
-
3566V-82127-00-00 WIRE, LEAD 2WIRE, LEAD 2
-
3697013-06016-00 BOLTBOLT
-
3792903-06600-00 WASHER, PLATEWASHER, PLATE
-
386B6-83623-00-00 MARK 3MARK 3
-
3960E-83627-00-00 LABEL, CAUTION 7LABEL, CAUTION 7
-
4066V-82117-00-00 WIRE, LEADWIRE, LEAD
-
4168N-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
4297095-06010-00 BOLTBOLT
-
4392995-06100-00 WASHER, SPRINGWASHER, SPRING
-
4492995-06600-00 WASHERWASHER
-
4566V-82119-00-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
4660T-82117-10-00 WIRE, LEADWIRE, LEAD
-
4760T-82117-20-00 WIRE, LEADWIRE, LEAD
-
4860E-81950-00-00 RELAY ASSYRELAY ASSY
-
4997780-60525-00 SCREW, TAPPINGSCREW, TAPPING
-
5066V-85790-10-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
5166V-85881-00-00 SENSOR, EXT, TEMP.SENSOR, EXT, TEMP.
-
5260T-85542-00-00 BRACKETBRACKET
-
5397780-60516-00 SCREW, TAPPINGSCREW, TAPPING
-
5461A-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
5560T-82355-10-00 GROMMETGROMMET
-
5668F-83688-00-00 SENSOR ASSYSENSOR ASSY
-
5760T-8259L-20-00 WIRE HARNESS ASSY 1WIRE HARNESS ASSY 1
-
5867F-82151-30-00 ...FUSE (3A)...FUSE (3A)
-
5967F-82151-00-00 ...FUSE (20A)...FUSE (20A)
-
6060T-8259M-20-00 WIRE HARNESS ASSY 2WIRE HARNESS ASSY 2
-
6197780-60425-00 SCREW, TAPPINGSCREW, TAPPING
-
6290465-11M52-00 CLAMPCLAMP
-
6360E-8259E-00-00 SWITCH ASSYSWITCH ASSY
