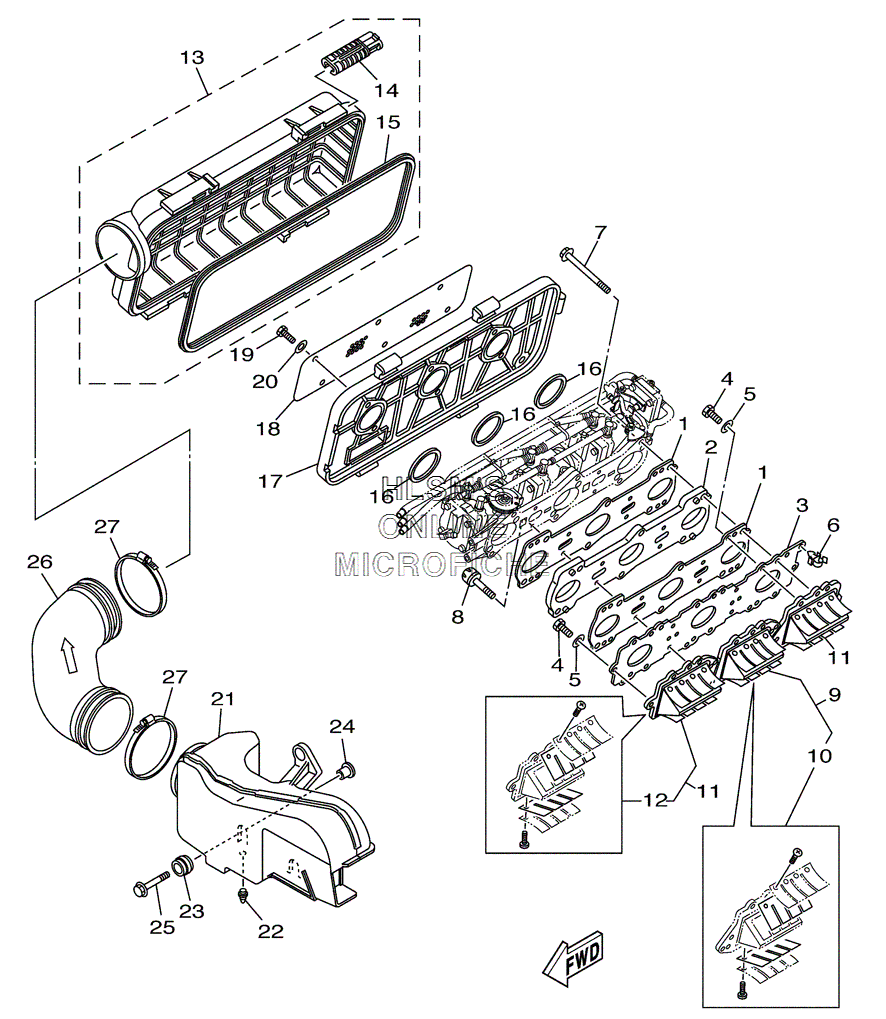

AIR SILENCER W/ INTAKE для Yamaha XA1200A XLT1200 3-PERSON - 2004 года выпуска`
-
№АртикулНазвание
-
168N-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
268N-14271-00-00 INSULATORINSULATOR
-
366V-13624-00-94 PLATE,REED VALVEPLATE,REED VALVE
-
497013-06025-00 BOLTBOLT
-
592903-06600-00 WASHER, PLATEWASHER, PLATE
-
690464-14M55-00 CLAMPCLAMP
-
790105-08041-00 BOLT, FLANGEBOLT, FLANGE
-
890110-06068-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
966V-13610-00-00 REED VALVE ASSYREED VALVE ASSY
-
1066V-W0004-00-00 ...REED SET...REED SET
-
1166V-13620-00-00 REED VALVE ASSYREED VALVE ASSY
-
1266V-W0004-00-00 ...REED SET...REED SET
-
1366V-14480-01-00 COVER SUB ASSYCOVER SUB ASSY
-
1466V-13898-00-00 ...HOLDER...HOLDER
-
1566V-14457-00-00 ...SEAL...SEAL
-
1666E-13473-00-00 O-RINGO-RING
-
1766V-14284-00-00 COVER, CARBURETOR 2COVER, CARBURETOR 2
-
1866V-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
1997013-06045-00 BOLTBOLT
-
2092903-06600-00 WASHER, PLATEWASHER, PLATE
-
2166V-14440-00-00 SILENCER ASSY, INTAKESILENCER ASSY, INTAKE
-
2266E-42717-00-00 RUBBER, SEAL 2RUBBER, SEAL 2
-
2390480-22M15-00 GROMMETGROMMET
-
2490387-08M37-00 COLLARCOLLAR
-
2590119-08M22-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2666V-14419-00-00 PIPEPIPE
-
2790460-99M23-00 CLAMP, HOSECLAMP, HOSE
