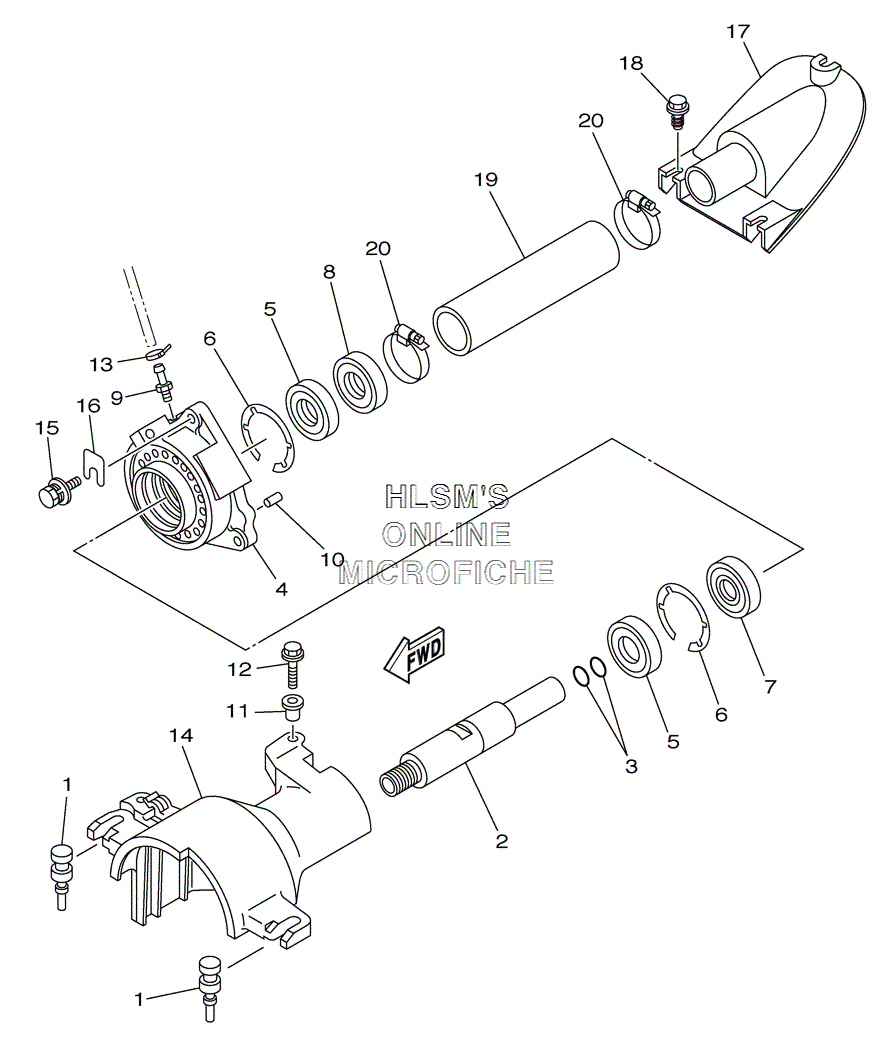

PROPULSION SYSTEM - INTERNAL для Yamaha XA1200A XLT1200 3-PERSON - 2004 года выпуска`
-
№АртикулНазвание
-
190480-06M46-00 GROMMETGROMMET
-
268N-51323-00-00 SHAFT, COUPLORSHAFT, COUPLOR
-
393210-19MJ4-00 O-RINGO-RING
-
461X-45332-03-94 HOUSING, BEARINGHOUSING, BEARING
-
593101-25M55-00 OIL SEALOIL SEAL
-
693430-47M04-00 CIRCLIPCIRCLIP
-
793306-205U6-00 BEARINGBEARING
-
893101-25M56-00 OIL SEALOIL SEAL
-
961L-45378-00-00 NIPPLE, HOSENIPPLE, HOSE
-
1093606-12019-00 PIN, DOWELPIN, DOWEL
-
1190387-06M60-00 COLLARCOLLAR
-
1290119-069UD-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390465-11829-00 CLAMPCLAMP
-
1466V-R1381-00-00 COVERCOVER
-
1590119-089UL-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
16GD0-U7249-00-05 SHIM (T=0.5) (OPT)SHIM (T=0.5) (OPT)
-
16GD0-U7249-00-10 SHIM (T=1.0) (OPT)SHIM (T=1.0) (OPT)
-
17F0D-U883E-00-00 JOINT, PIPEJOINT, PIPE
-
1890149-069UA-00 SCREWSCREW
-
19F0D-U883B-01-00 PIPE, 1PIPE, 1
-
2090601-152U3-00 BAND, HOSE 52BAND, HOSE 52
Все узлы модели:
- AIR SILENCER W/ INTAKE
- BUMBER W/ GUNWALE MAT
- CARBURETOR
- CARBURETOR REPAIR KIT
- CONTROL CABLES
- CRANKSHAFT W/ PISTON
- CYLINDER W/ CRANKCASE
- ELECTRICAL 1
- ELECTRICAL 2
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL LINES
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL FITTINGS W/ SPONSONS
- MODEL INFO - MANUALS
- OIL PUMP
- OIL TANK
- POWER VALVE SYSTEM
- PROPULSION SYSTEM - EXTERNAL
- • PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT
- SIDE COVERS
- STARTING MOTOR
- VENTILATION
