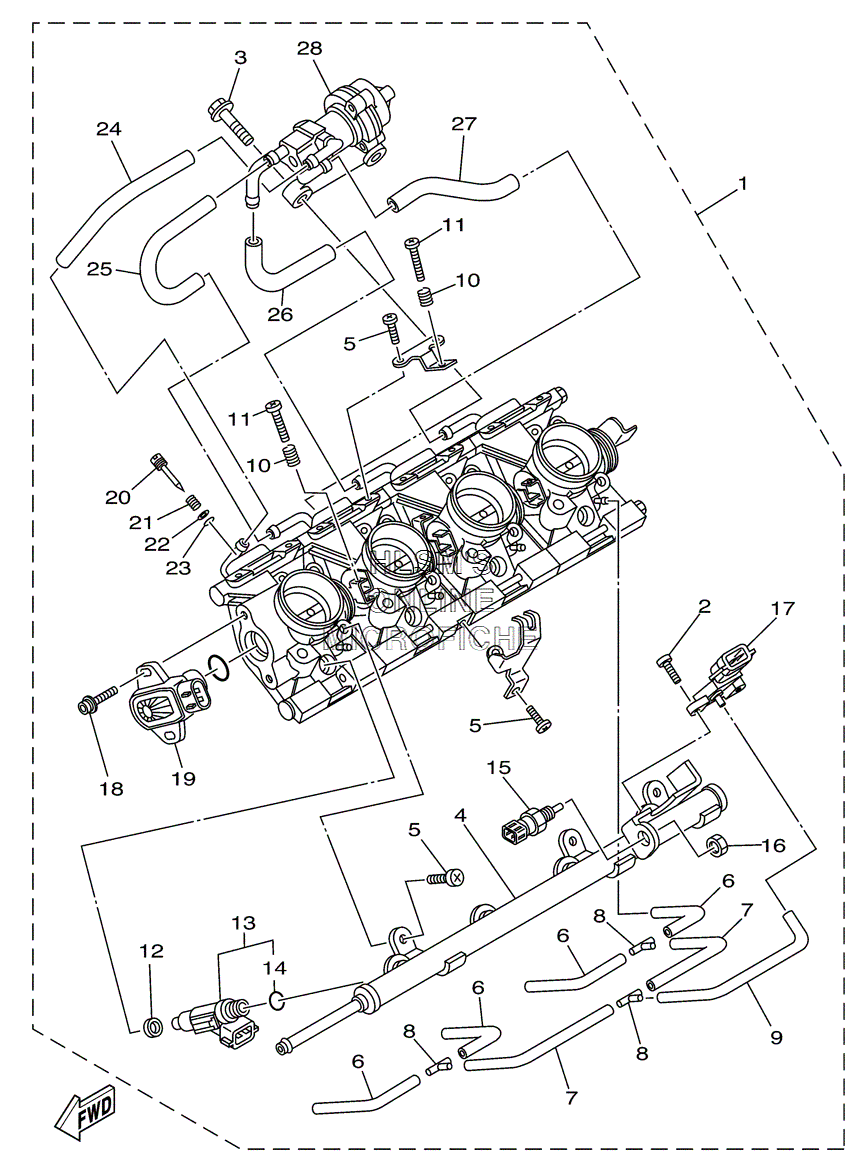

THROTTLE BODY ASSY. для Yamaha FX1000A FX CRUISER 3-PERSON - 2004 года выпуска`
-
№АртикулНазвание
-
160E-13750-20-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
268V-81147-00-00 ...SCREW 3...SCREW 3
-
363P-14446-00-00 ...BOLT...BOLT
-
460E-12880-10-00 ...DELIVERY PIPE...DELIVERY PIPE
-
560E-14216-00-00 ...SCREW...SCREW
-
65FL-14987-10-00 ...HOSE...HOSE
-
75FL-14349-10-00 ...PIPE...PIPE
-
84N0-14251-00-00 ...NIPPLE...NIPPLE
-
95PW-14396-00-00 ...PIPE...PIPE
-
103KW-14932-00-00 ...SPRING, THROTTLE 2...SPRING, THROTTLE 2
-
1169J-14321-00-00 ...SCREW, THROTTLE...SCREW, THROTTLE
-
1290430-09002-00 ...GASKET...GASKET
-
1360E-13761-10-00 ...INJECTOR ASSY...INJECTOR ASSY
-
1460E-14147-00-00 ...O-RING...O-RING
-
1565L-85886-00-00 ...THERMOSENSOR...THERMOSENSOR
-
1660E-14358-00-00 ...NUT...NUT
-
1760E-82380-10-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
1868V-81145-01-00 ...SCREW 1...SCREW 1
-
1960E-85885-10-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
204BH-14923-00-00 ...SCREW, PILOT...SCREW, PILOT
-
214BH-14134-00-00 ...SPRING, AIR ADJUSTING...SPRING, AIR ADJUSTING
-
223L5-14962-00-00 ...WASHER...WASHER
-
233H1-14147-00-00 ...O-RING...O-RING
-
2460E-13545-00-00 ...HOSE 1...HOSE 1
-
2560E-13546-00-00 ...HOSE 2...HOSE 2
-
2660E-13547-00-00 ...HOSE 3...HOSE 3
-
2760E-13548-00-00 ...HOSE, AIR 4...HOSE, AIR 4
-
2860E-13660-00-00 ...BY-PASS VALVE MOTOR ASSY...BY-PASS VALVE MOTOR ASSY
