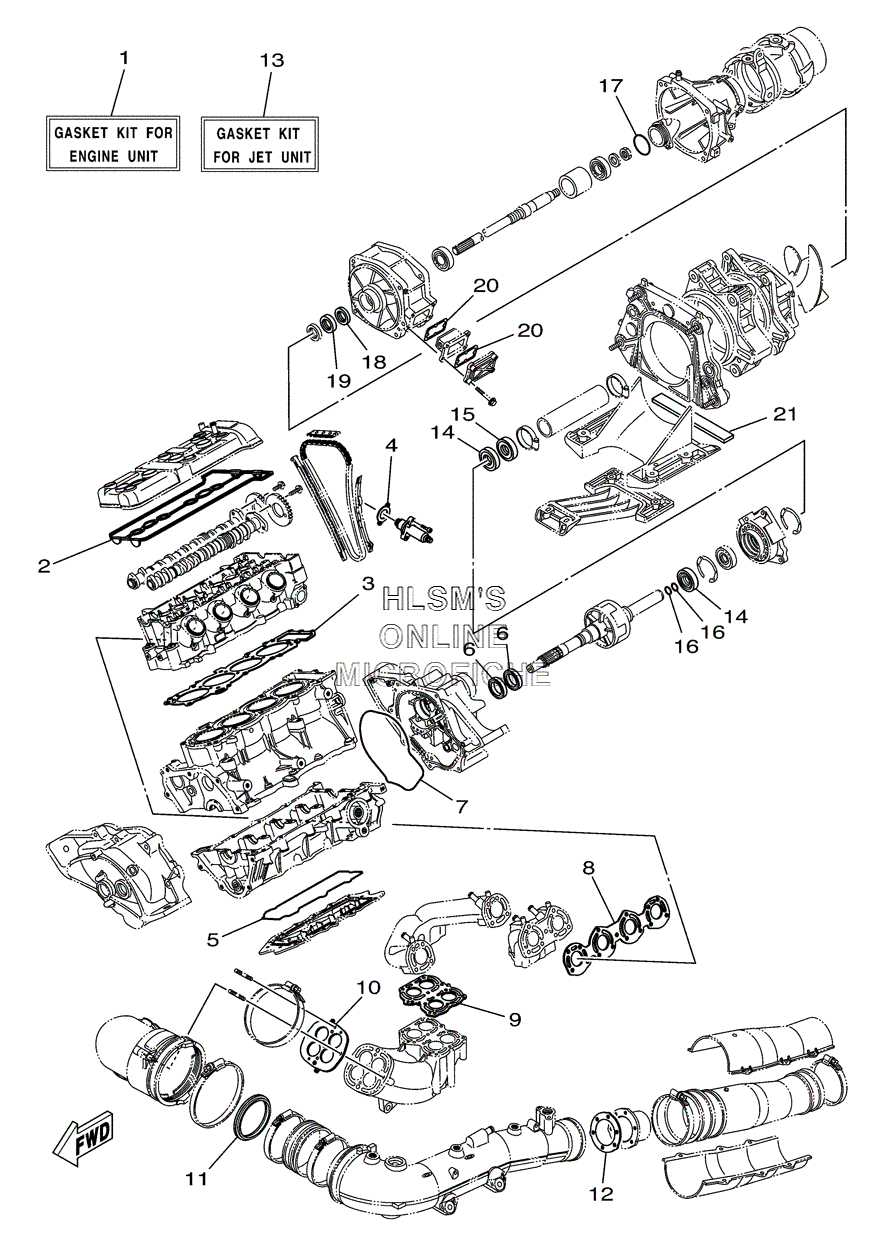

GASKET KIT - ENGINE AND JET UNIT для Yamaha FX1000A FX CRUISER 3-PERSON - 2004 года выпуска`
-
№АртикулНазвание
-
160E-W0001-01-00 GASKET KIT FOR ENGINE UNITGASKET KIT FOR ENGINE UNIT
-
260E-11193-00-00 ...GASKET, HEAD COVER 1...GASKET, HEAD COVER 1
-
360E-11181-00-00 ...GASKET, CYLINDER HEAD 1...GASKET, CYLINDER HEAD 1
-
44FM-12213-00-00 ...GASKET, TENSIONER CASE...GASKET, TENSIONER CASE
-
560E-13557-00-00 ...GASKET...GASKET
-
693101-35004-00 ...OIL SEAL...OIL SEAL
-
793211-95001-00 ...O-RING...O-RING
-
860E-14613-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
960E-14739-01-00 ...GASKET, MUFFLER DAMPER 1...GASKET, MUFFLER DAMPER 1
-
1060E-14749-01-00 ...GASKET, MUFFLER DAMPER 2...GASKET, MUFFLER DAMPER 2
-
1160E-14642-00-00 ...SEAL, EXHAUST...SEAL, EXHAUST
-
1260E-14623-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
1360E-W0001-20-00 GASKET KIT FOR JET UNITGASKET KIT FOR JET UNIT
-
1493101-25M55-00 ...OIL SEAL...OIL SEAL
-
1593102-25009-00 ...OIL SEAL...OIL SEAL
-
1693210-19MJ4-00 ...O-RING...O-RING
-
1793210-46M16-00 ...O-RING...O-RING
-
1893101-28M65-00 ...OIL SEAL...OIL SEAL
-
1993101-28M66-00 ...OIL SEAL...OIL SEAL
-
2066V-42414-00-00 ...O-RING...O-RING
