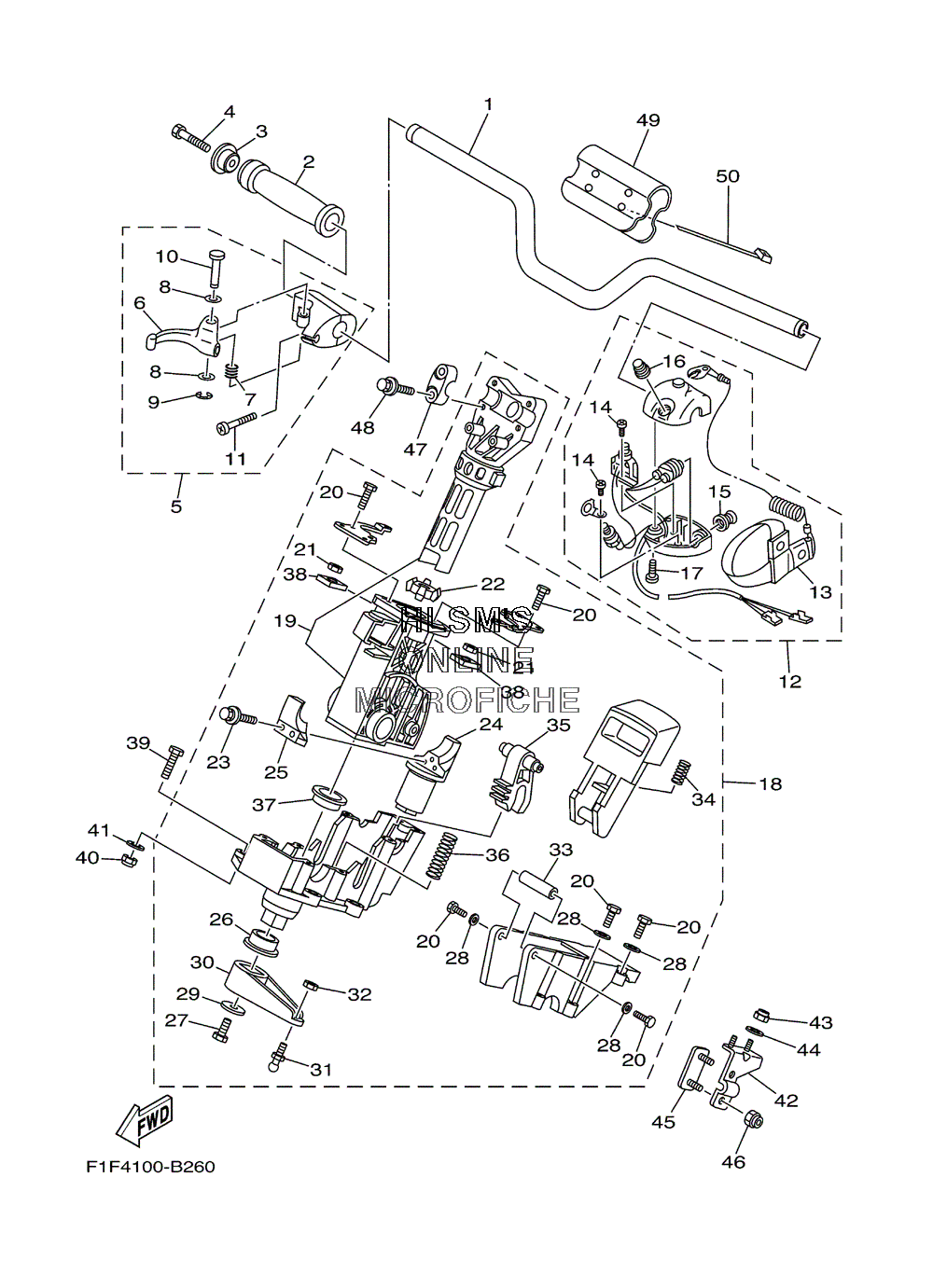

HANDLEBAR W/ CONTROLS - STEERING COLUMN для Yamaha XLT800 WAVERUNNER 3-PERSON - 2003 года выпуска`
-
№АртикулНазвание
-
1F0D-U1552-00-00 HANDLEHANDLE
-
2GP7-U155D-00-00 GRIP, HANDLEGRIP, HANDLE
-
3GP7-U155F-00-00 GRIP, ENDGRIP, END
-
490110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5F0D-67250-03-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
6F0D-67255-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
7EW2-67256-00-00 ...SPRING...SPRING
-
8EW2-67258-01-00 ...WASHER...WASHER
-
9EW2-67259-01-00 ...E-RING...E-RING
-
10F0D-67257-00-00 ...SHAFT...SHAFT
-
1198580-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
12GP7-68310-01-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
13EW2-68348-00-00 ...LANYARD, STOP SWITCH...LANYARD, STOP SWITCH
-
1497880-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
15FK7-68312-02-00 ...STOP BUTTON COMP...STOP BUTTON COMP
-
16FK7-68313-02-00 ...START BUTTON COMP....START BUTTON COMP.
-
1797880-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
18F0D-61400-04-00 STEERING MASTER ASSYSTEERING MASTER ASSY
-
19F0D-67410-00-00 ...SHAFT ASSY....SHAFT ASSY.
-
20F0D-61355-00-00 ...BOLT...BOLT
-
21F0D-6151S-00-00 ...NUT...NUT
-
22F0D-6152R-00-00 ...BALL...BALL
-
23F0D-62624-00-00 ...BOLT...BOLT
-
24F0D-6152D-00-00 ...SHAFT...SHAFT
-
25F0D-52543-00-00 ...JOINT, UNIVERSAL...JOINT, UNIVERSAL
-
26F0D-6134M-00-00 ...BUSH...BUSH
-
27F0D-6491K-00-00 ...BOLT, SPECIAL...BOLT, SPECIAL
-
28F0D-6134E-00-00 ...WASHER...WASHER
-
29F0D-6135D-00-00 ...WASHER...WASHER
-
30F1B-6151B-00-00 ...ARM, STEERING...ARM, STEERING
-
31EU0-61461-02-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
3295720-06300-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
33F0D-61574-00-00 ...CONNECTOR...CONNECTOR
-
34F0D-61349-00-00 ...SPRING...SPRING
-
35F0D-61782-00-00 ...LOCK 1...LOCK 1
-
36F0D-6134K-00-00 ...SPRING...SPRING
-
37F0D-62814-00-00 ...BUSH...BUSH
-
38F0D-6724H-00-00 ...HOLDER...HOLDER
-
3997080-08030-00 BOLTBOLT
-
409572R-08300-00 NUT, FLANGENUT, FLANGE
-
4190201-099U3-00 WASHER, PLATEWASHER, PLATE
-
42F0D-61467-00-00 BRACKET, STOPPER CABLEBRACKET, STOPPER CABLE
-
439572R-06300-00 NUT, FLANGENUT, FLANGE
-
449299R-06200-00 WASHERWASHER
-
45GH3-61468-00-00 STOPPER, CABLESTOPPER, CABLE
-
469572R-06300-00 NUT, FLANGENUT, FLANGE
-
47EU0-23814-30-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
4890119-089UU-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
49F0D-U156E-00-00 PAD 1PAD 1
-
5090601-200U2-00 BANDBAND
