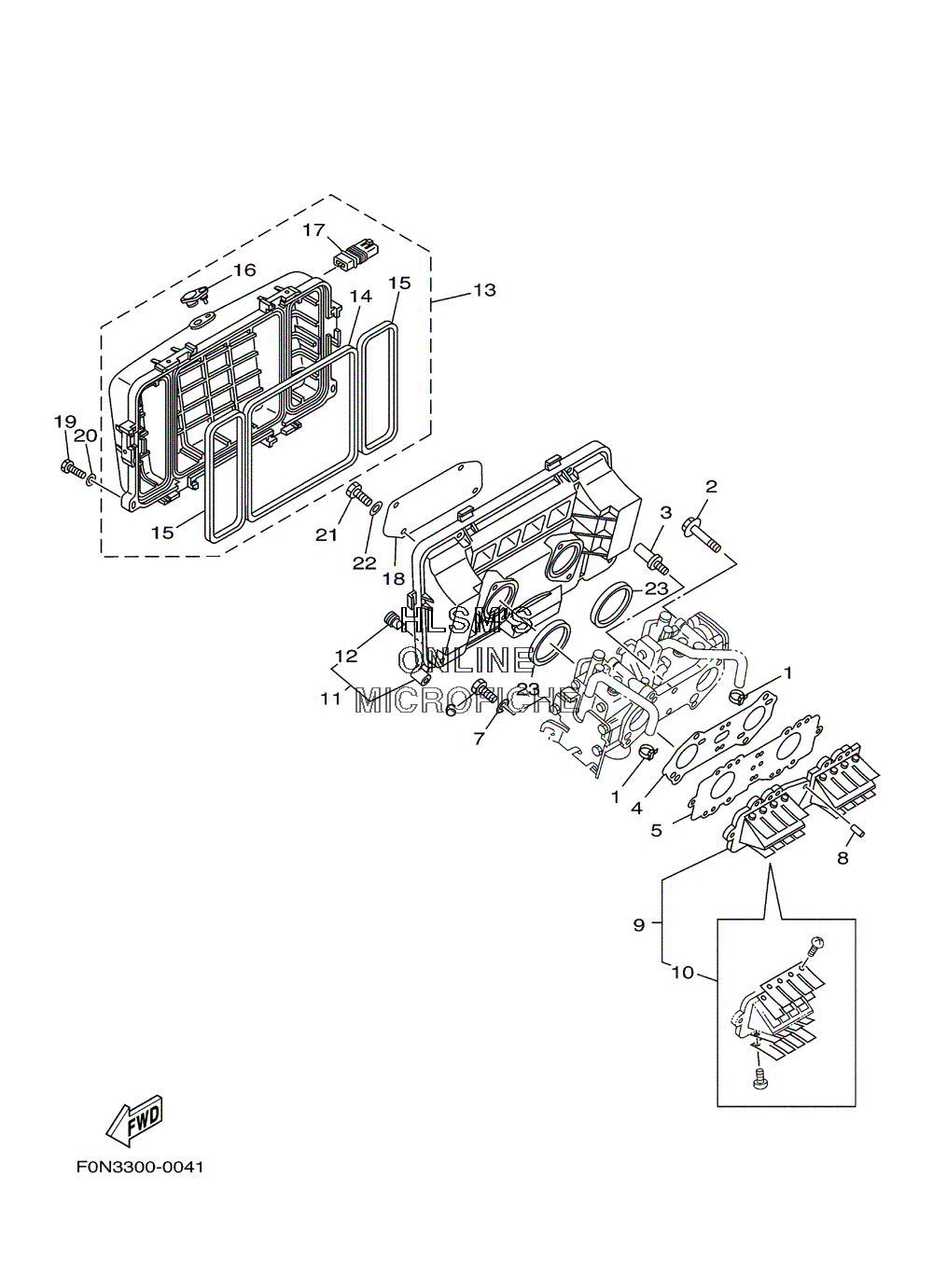

AIR SILENCER W/ INTAKE для Yamaha XLT800 WAVERUNNER 3-PERSON - 2003 года выпуска
-
№АртикулНазвание
-
190465-11M10-00 CLAMPCLAMP
-
290105-08M86-00 BOLT, FLANGEBOLT, FLANGE
-
390109-06M00-00 BOLTBOLT
-
466E-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
566E-13624-10-00 PLATE, REED VALVEPLATE, REED VALVE
-
697013-06025-00 BOLTBOLT
-
792903-06600-00 WASHER, PLATEWASHER, PLATE
-
893606-19M23-00 PIN, DOWELPIN, DOWEL
-
966E-13610-00-00 REED VALVE ASSYREED VALVE ASSY
-
1066E-W0004-00-00 ...REED SET...REED SET
-
1166E-1441E-00-00 COVER, CLEANER CASE 2COVER, CLEANER CASE 2
-
1266E-42717-00-00 ...RUBBER, SEAL 2...RUBBER, SEAL 2
-
1366E-14480-11-00 COVER SUB ASSYCOVER SUB ASSY
-
1466E-14457-10-00 ...SEAL...SEAL
-
1566E-14452-00-00 ...SEAL...SEAL
-
1666E-14435-00-00 ...GROMMET...GROMMET
-
1766E-13898-11-00 ...HOLDER...HOLDER
-
1866E-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
1997095-06035-00 BOLTBOLT
-
2092995-06600-00 WASHERWASHER
-
2197013-06045-00 BOLTBOLT
-
2292903-06600-00 WASHER, PLATEWASHER, PLATE
-
2366E-13473-00-00 O-RINGO-RING
