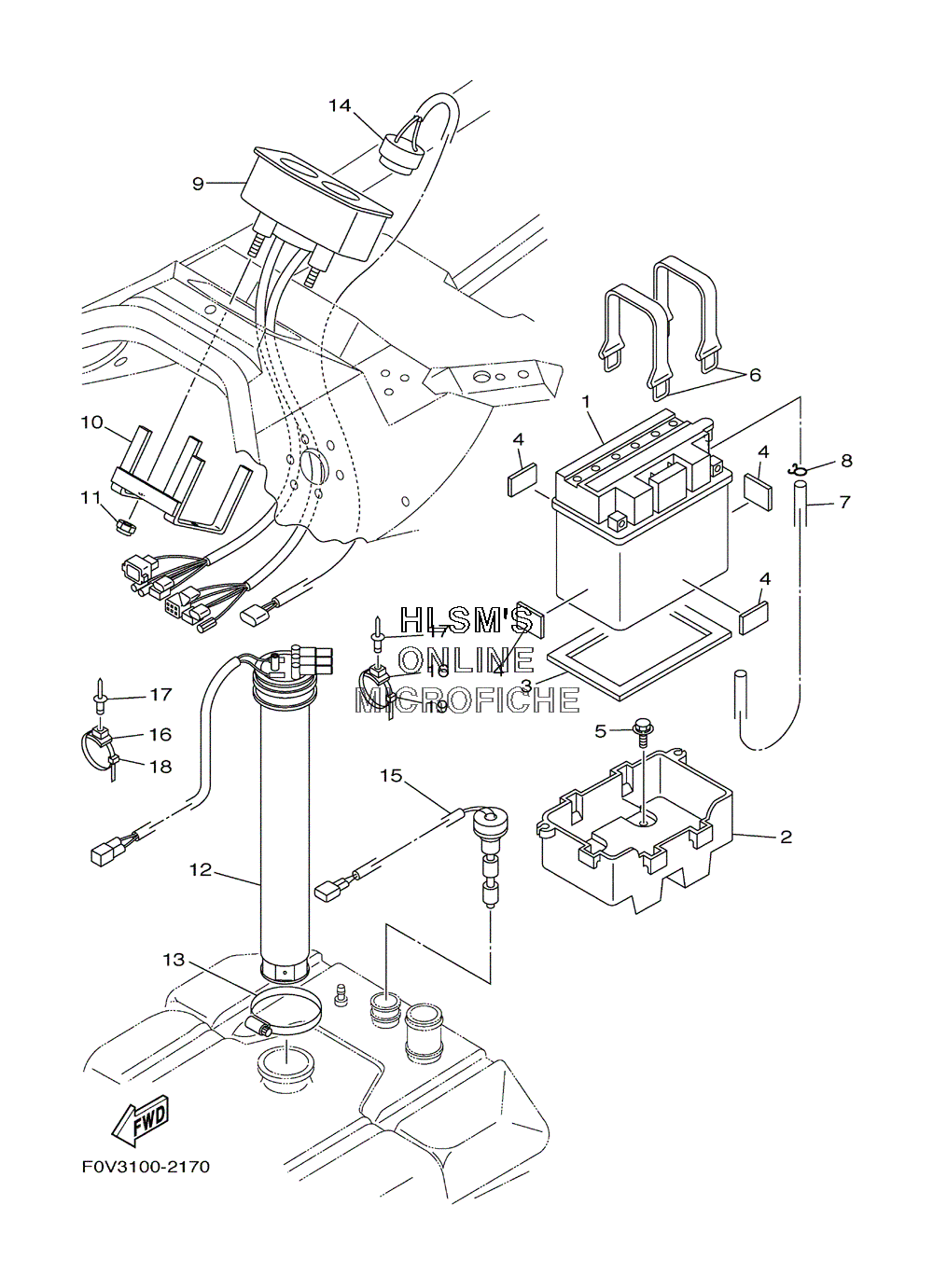

ELECTRICAL 2 для Yamaha XLT1200 WAVERUNNER 3-PERSON - 2003 года выпуска`
-
№АртикулНазвание
-
1BTY-YB16C-LB-00 BATTERY ASSY (YB16CL-B)BATTERY ASSY (YB16CL-B)
-
2GP7-U8211-00-00 CASE, BATTERYCASE, BATTERY
-
3F0X-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
4EU0-U8221-30-00 PAD, BATTERY 2PAD, BATTERY 2
-
590119-06854-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6EU0-U821D-00-00 BAND, BATTERY 2BAND, BATTERY 2
-
7F0D-U785G-10-00 HOSE, AIR VENTHOSE, AIR VENT
-
890467-089U1-00 CLIPCLIP
-
9F0D-6820A-01-00 METER ASSYMETER ASSY
-
10F0D-68238-10-00 BRACKET, METERBRACKET, METER
-
119572R-05300-00 NUT, FLANGENUT, FLANGE
-
12F0V-U824B-01-00 SENDER, FUELSENDER, FUEL
-
1390601-162U5-00 BAND, HOSE 62BAND, HOSE 62
-
14F0D-U8341-00-00 BUZZERBUZZER
-
15F0D-U824C-20-00 SENDER, OILSENDER, OIL
-
1690600-917U4-00 CLAMP COMP.CLAMP COMP.
-
1790267-48802-00 RIVET, BLINDRIVET, BLIND
-
1890464-32801-00 CLAMPCLAMP
-
1990601-20009-00 BANDBAND
