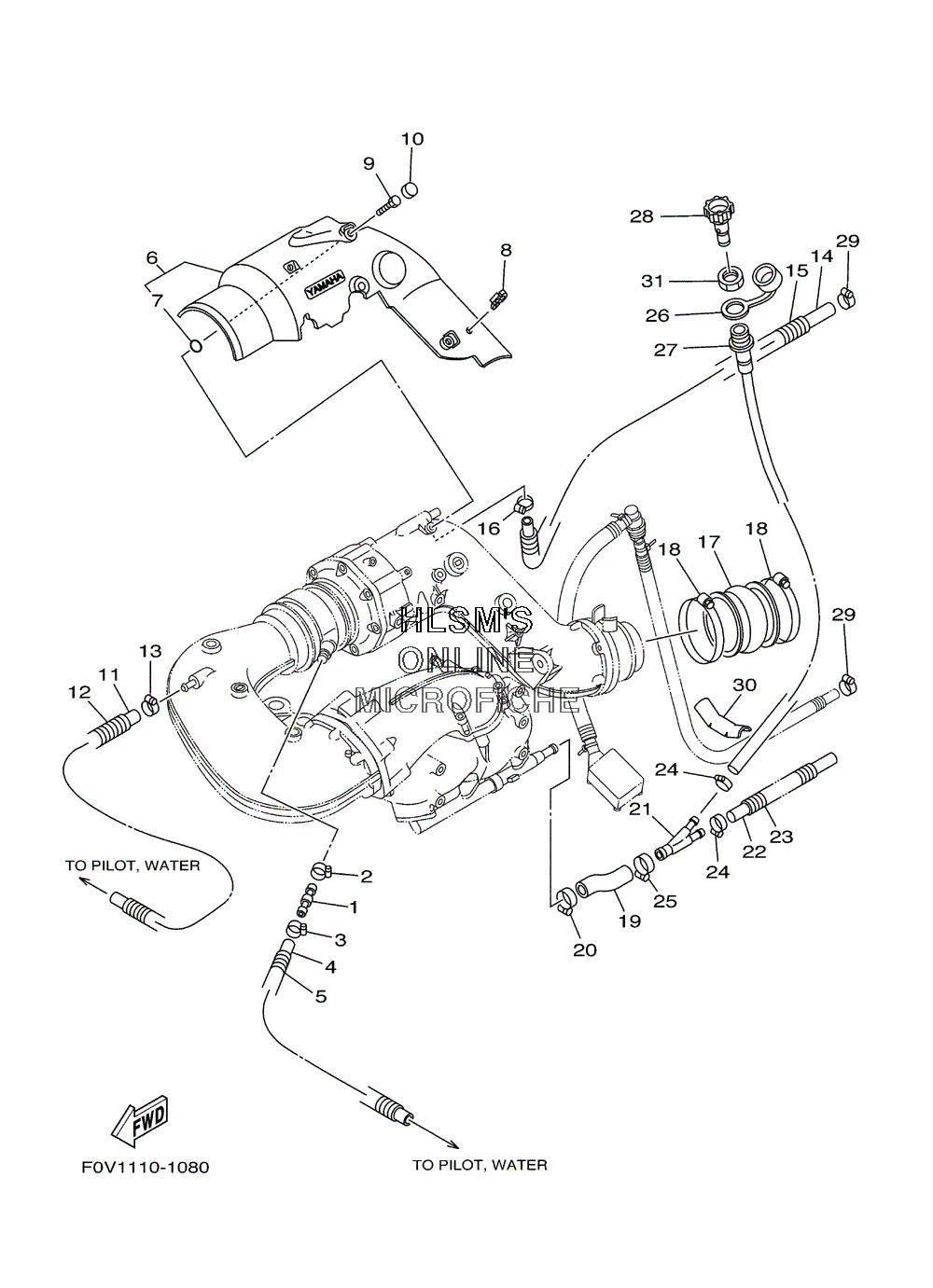

EXHAUST - HOSES для Yamaha XLT1200 WAVERUNNER 3-PERSON - 2003 года выпуска`
-
№АртикулНазвание
-
160E-12594-00-00 JOINT, HOSE 4JOINT, HOSE 4
-
290450-18M09-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
390450-14M05-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
490445-14M33-00 HOSE (L1150)HOSE (L1150)
-
590446-20ME4-00 HOSEHOSE
-
666V-14718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
790430-09M10-00 ...GASKET...GASKET
-
890464-07M56-00 CLAMPCLAMP
-
990109-06M99-00 BOLTBOLT
-
1066V-15779-00-00 COVERCOVER
-
1190445-14M09-00 HOSE (L1020)HOSE (L1020)
-
1290446-20M70-00 HOSEHOSE
-
1390450-18M09-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1490445-21002-00 HOSE (L900)HOSE (L900)
-
1590446-27M95-00 HOSEHOSE
-
1690450-22M14-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1766V-14752-00-00 PIPE, OUTLETPIPE, OUTLET
-
1890450-99M02-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1966V-12579-00-00 HOSE 4HOSE 4
-
2090450-22M14-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2166V-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
2290445-18M02-00 HOSE (L700)HOSE (L700)
-
2390446-24M52-00 HOSEHOSE
-
2490450-18M09-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2590450-22M14-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
26682-84385-01-00 CAP 1CAP 1
-
2764T-12580-00-00 JOINT ASSYJOINT ASSY
-
2867X-12590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
2990601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
30GJ1-U7578-21-00 PACKING, HOSE 2PACKING, HOSE 2
-
31EU0-61652-00-00 NUTNUT
