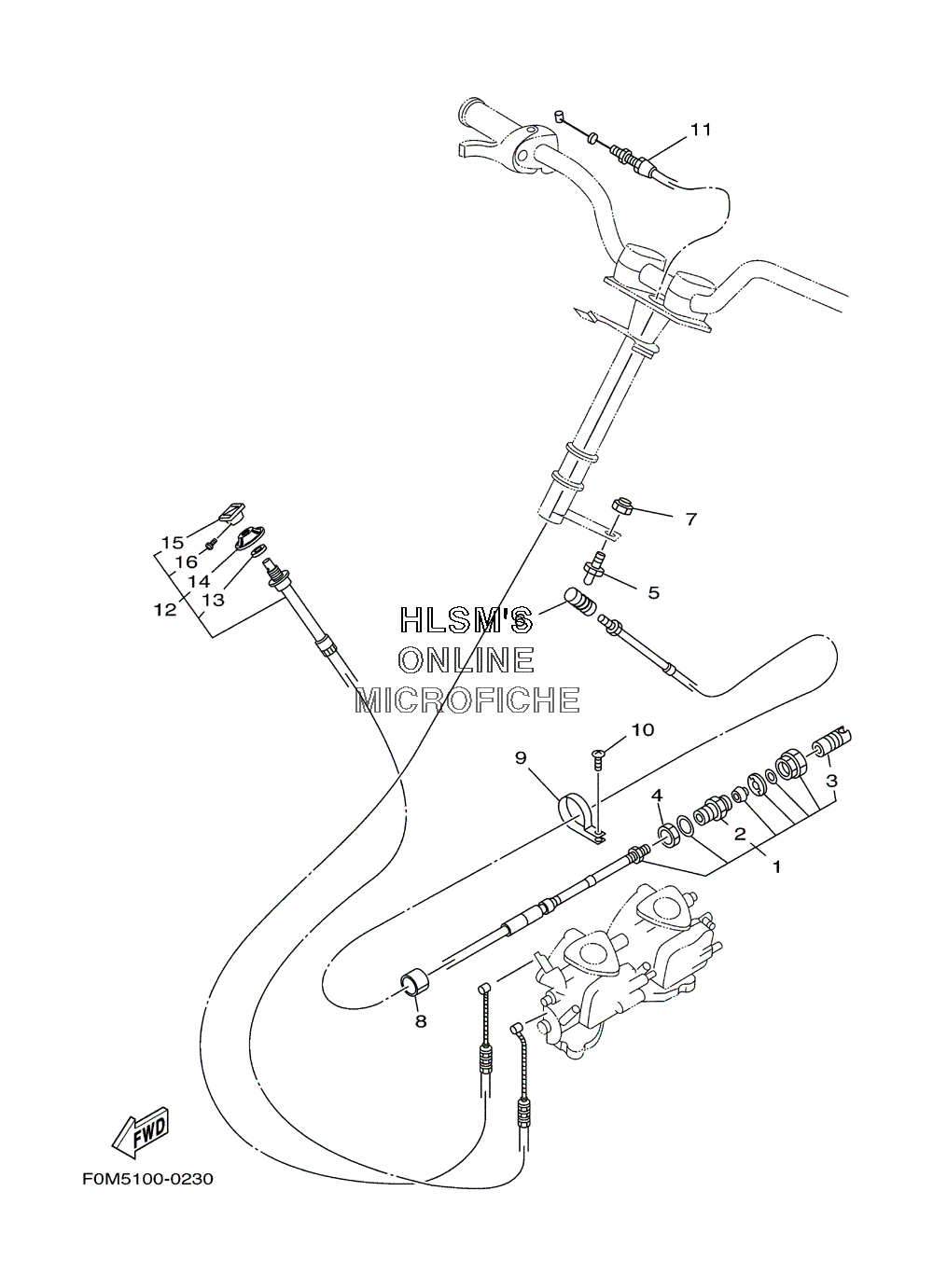

CONTROL CABLES для Yamaha XL700 WAVERUNNER - 2003 года выпуска`
-
№АртикулНазвание
-
1GU2-U1481-10-00 CABLE, STEERINGCABLE, STEERING
-
2GK5-67267-10-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
3GK5-U146F-00-00 ...SHAFT, JOIIINT BALL...SHAFT, JOIIINT BALL
-
4EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
5EU0-U1461-02-00 STUD, JOINT BALLSTUD, JOINT BALL
-
6GK5-U146F-00-00 SHAFT, JOIIINT BALLSHAFT, JOIIINT BALL
-
79572R-06300-00 NUT, NYLONNUT, NYLON
-
8GJ1-U7578-01-00 PACKING, HOSE 2PACKING, HOSE 2
-
990600-918U3-00 CLIP, NYLON 18CLIP, NYLON 18
-
109778R-60116-00 SCREW, TAPPINGSCREW, TAPPING
-
11F0M-U7252-00-00 CABLE, THROTTLECABLE, THROTTLE
-
12F0M-U7242-00-00 CABLE, CHOKECABLE, CHOKE
-
13GA9-U724F-01-00 ...NUT...NUT
-
14GP7-U724E-00-00 ...NUT, COMPRESSION...NUT, COMPRESSION
-
15GA9-U724C-00-00 ...KNOB...KNOB
-
16GP7-U724D-00-00 ...SCREW, KNOB...SCREW, KNOB
