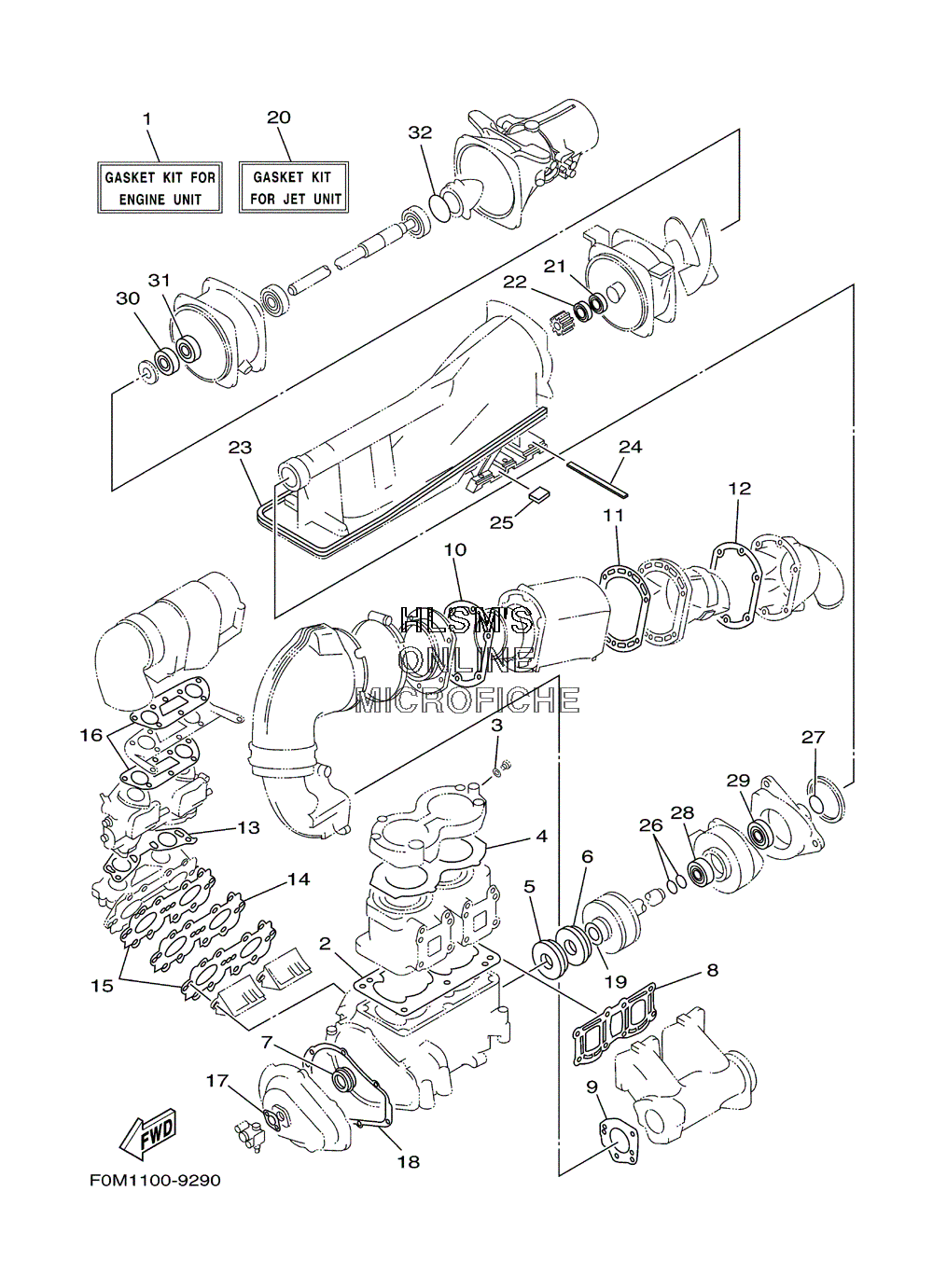

GASKET KIT - ENGINE AND JET UNIT для Yamaha XL700 WAVERUNNER - 2003 года выпуска`
-
№АртикулНазвание
-
162T-W0001-02-00 GASKET KIT FOR ENGINE UNITGASKET KIT FOR ENGINE UNIT
-
26M6-11351-A2-00 ...GASKET, CYLINDER...GASKET, CYLINDER
-
390430-08020-00 ...GASKET...GASKET
-
462T-11181-00-00 ...GASKET, CYLINDER HEAD 1...GASKET, CYLINDER HEAD 1
-
593102-36M33-00 ...OIL SEAL...OIL SEAL
-
693101-36M46-00 ...OIL SEAL...OIL SEAL
-
793103-32M01-00 ...OIL SEAL...OIL SEAL
-
862T-14613-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
962T-14749-00-00 ...GASKET, MUFFLER DAMPER 2...GASKET, MUFFLER DAMPER 2
-
1062T-41114-01-00 ...GASKET, EXHAUST OUTER COVER...GASKET, EXHAUST OUTER COVER
-
1162T-41122-00-00 ...GASKET, EXHAUST INNER COVER...GASKET, EXHAUST INNER COVER
-
1262T-41124-00-00 ...GASKET, EXHAUST OUTER COVER...GASKET, EXHAUST OUTER COVER
-
1362T-13556-00-00 ...GASKET, MANIFOLD...GASKET, MANIFOLD
-
1462T-13624-00-00 ...PLATE,REED VALVE...PLATE,REED VALVE
-
1562T-13566-00-00 ...GASKET...GASKET
-
1662T-13674-00-00 ...GASKET, AIR COOLER COVER 1...GASKET, AIR COOLER COVER 1
-
176R8-13116-A0-00 ...GASKET, PUMP CASE...GASKET, PUMP CASE
-
186M6-81365-A0-00 ...GASKET, HOLE COVER...GASKET, HOLE COVER
-
1962T-45127-00-00 ...SEAL...SEAL
-
2065U-W0001-20-00 GASKET KIT FOR JET UNITGASKET KIT FOR JET UNIT
-
2193102-17M49-00 ...OIL SEAL...OIL SEAL
-
2293102-17M50-00 ...OIL SEAL...OIL SEAL
-
236R8-51367-01-00 ...FELT, PACKING...FELT, PACKING
-
2463M-51367-00-00 ...FELT, PACKING...FELT, PACKING
-
2563M-51368-00-00 ...FELT, PACKING...FELT, PACKING
-
2693210-17MA4-00 ...O-RING...O-RING
-
2793210-35M72-00 ...O-RING...O-RING
-
2893101-25M55-00 ...OIL SEAL...OIL SEAL
-
2993101-25M56-00 ...OIL SEAL...OIL SEAL
-
3093102-25M34-00 ...OIL SEAL...OIL SEAL
-
3193101-25M50-00 ...OIL SEAL...OIL SEAL
-
3293210-46M16-00 ...O-RING...O-RING
