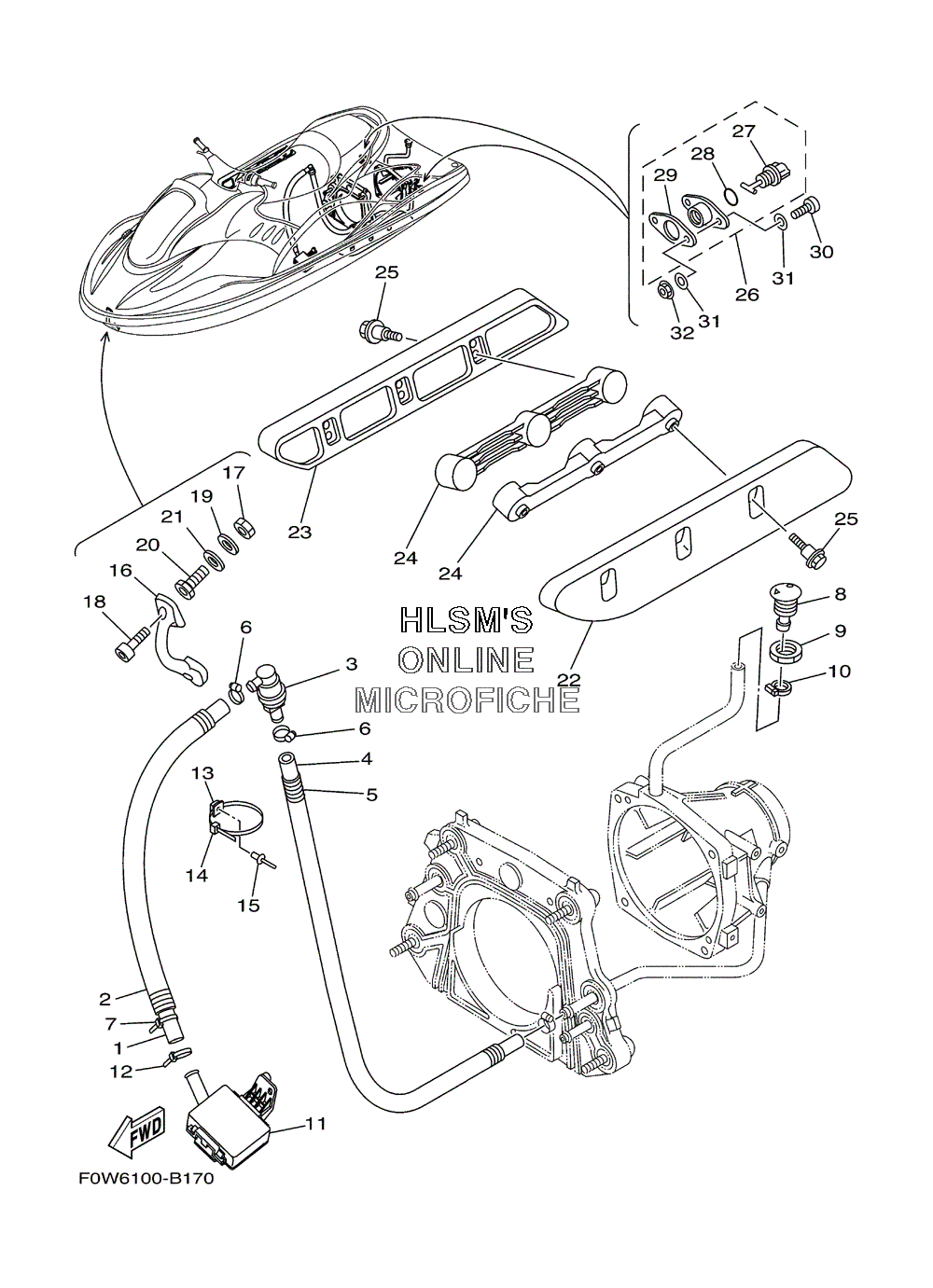

HULL FITTINGS W/ SPONSONS для Yamaha GP800R WAVERUNNER 2-PERSON - 2003 года выпуска`
-
№АртикулНазвание
-
190445-198C0-00 HOSE (L1000)HOSE (L1000)
-
290446-27M95-00 HOSEHOSE
-
368N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
490445-198B9-00 HOSE (L650)HOSE (L650)
-
590446-27MF2-00 HOSEHOSE
-
690601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
790601-200U1-00 BANDBAND
-
8FN8-6269B-00-00 SPOUTSPOUT
-
9EU0-61652-00-00 NUTNUT
-
1090601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
11F1B-U761D-01-00 STRAINER, BILGESTRAINER, BILGE
-
1290601-200U1-00 BANDBAND
-
1390600-917U4-00 CLAMP COMP.CLAMP COMP.
-
1490601-200U2-00 BANDBAND
-
1590267-489U7-00 RIVET, BLINDRIVET, BLIND
-
16F0X-61624-00-00 BOWEYE 1 (S)BOWEYE 1 (S)
-
17F0X-61652-00-00 NUTNUT
-
1890110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
19F0X-61637-00-00 WASHERWASHER
-
2099780-12600-00 NUT, HEX. (COARS)NUT, HEX. (COARS)
-
2192990-12200-00 WASHER, PLAINWASHER, PLAIN
-
22F0X-U883N-00-00 STABILIZER LH (BLACK (BL))STABILIZER LH (BLACK (BL))
-
23F0X-U883P-00-00 STABILIZER RH (BLACK (BL))STABILIZER RH (BLACK (BL))
-
24F1B-U883T-01-00 BRACKET, STABILIZERBRACKET, STABILIZER
-
25F1G-U2624-00-00 BOLTBOLT
-
26EU0-62280-00-00 DRAIN PLUG ASSYDRAIN PLUG ASSY
-
27EU0-62282-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
28EU0-62283-00-00 ...O-RING...O-RING
-
29EU0-62285-01-00 ...PACKING DRAIN (EU0)...PACKING DRAIN (EU0)
-
309788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
319299R-05200-00 WASHERWASHER
-
329572R-05300-00 NUT, FLANGENUT, FLANGE
