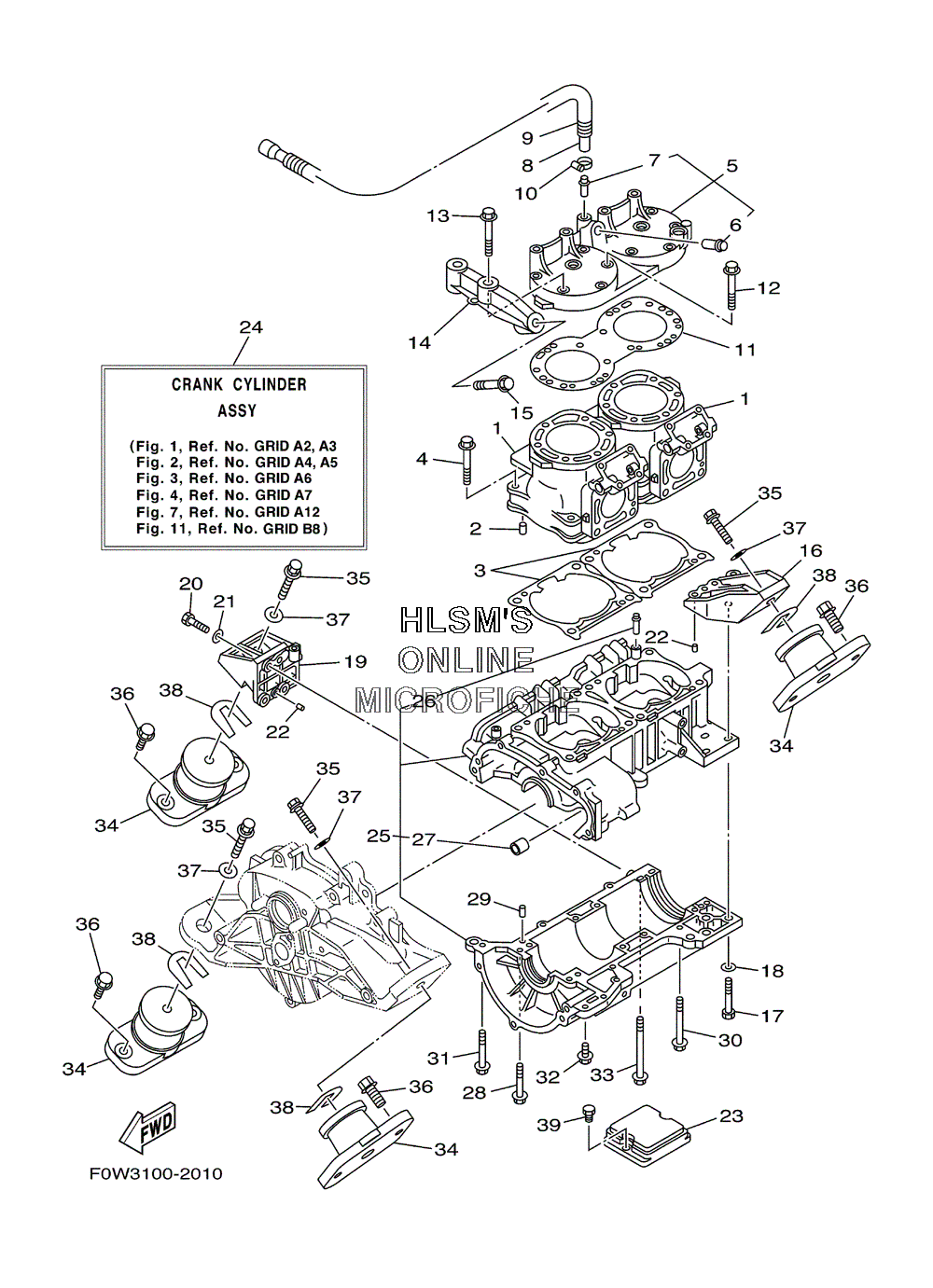

CYLINDER W/ CRANKCASE 1 для Yamaha GP800R WAVERUNNER 2-PERSON - 2003 года выпуска`
-
№АртикулНазвание
-
166E-11311-00-94 CYLINDER 1CYLINDER 1
-
293606-12019-00 PIN, DOWELPIN, DOWEL
-
366E-11351-01-00 GASKET, CYLINDERGASKET, CYLINDER
-
490119-10M07-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
566E-11111-00-94 HEAD, CYLINDER 1HEAD, CYLINDER 1
-
666E-51129-00-00 ...NIPPLE...NIPPLE
-
76K8-51129-00-00 ...NIPPLE...NIPPLE
-
890445-14M33-00 HOSE (L1150)HOSE (L1150)
-
990446-24M94-00 HOSEHOSE
-
1090450-14M05-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1166E-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1290119-08MA1-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390119-08MA2-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1466E-14781-10-94 STAY, MUFFLER 2STAY, MUFFLER 2
-
1590119-10M00-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1666E-21425-10-8P BRACKET, REAR UPPER 1BRACKET, REAR UPPER 1
-
1797013-08045-00 BOLTBOLT
-
1892903-08600-00 WASHER, PLATEWASHER, PLATE
-
1966E-21426-10-8P BRACKET, REAR UPPER 2BRACKET, REAR UPPER 2
-
2097013-08030-00 BOLTBOLT
-
2192903-08600-00 WASHER, PLATEWASHER, PLATE
-
2293606-12019-00 PIN, DOWELPIN, DOWEL
-
2367A-44532-00-00 STOPPER, UPPER MOUNTSTOPPER, UPPER MOUNT
-
2466E-W0090-12-8P CRANK CYLINDER ASSYCRANK CYLINDER ASSY
-
2566E-15100-10-8P CRANKCASE ASSYCRANKCASE ASSY
-
2662T-14251-10-00 ...NIPPLE...NIPPLE
-
2790380-12M29-00 ...BUSH, SOLID...BUSH, SOLID
-
2890119-08M55-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2993606-12019-00 PIN, DOWELPIN, DOWEL
-
3090119-06M78-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3190119-08M61-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3290119-06M13-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3390119-08M56-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3468A-44517-00-9M MOUNT RUBBERMOUNT RUBBER
-
3590119-089UR-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3690119-089U6-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3790201-099U3-00 WASHER, PLATEWASHER, PLATE
-
38EU0-U7354-00-01 SHIM (T=0.1) (OPT)SHIM (T=0.1) (OPT)
-
38EU0-U7354-00-03 SHIM (T=0.3) (OPT)SHIM (T=0.3) (OPT)
-
38EU0-U7354-00-05 SHIM (T=0.5) (OPT)SHIM (T=0.5) (OPT)
-
38EU0-U7354-00-10 SHIM (T=1.0) (OPT)SHIM (T=1.0) (OPT)
-
38EU0-U7354-00-20 SHIM (T=2.0) (OPT)SHIM (T=2.0) (OPT)
-
3990101-06917-00 BOLTBOLT
