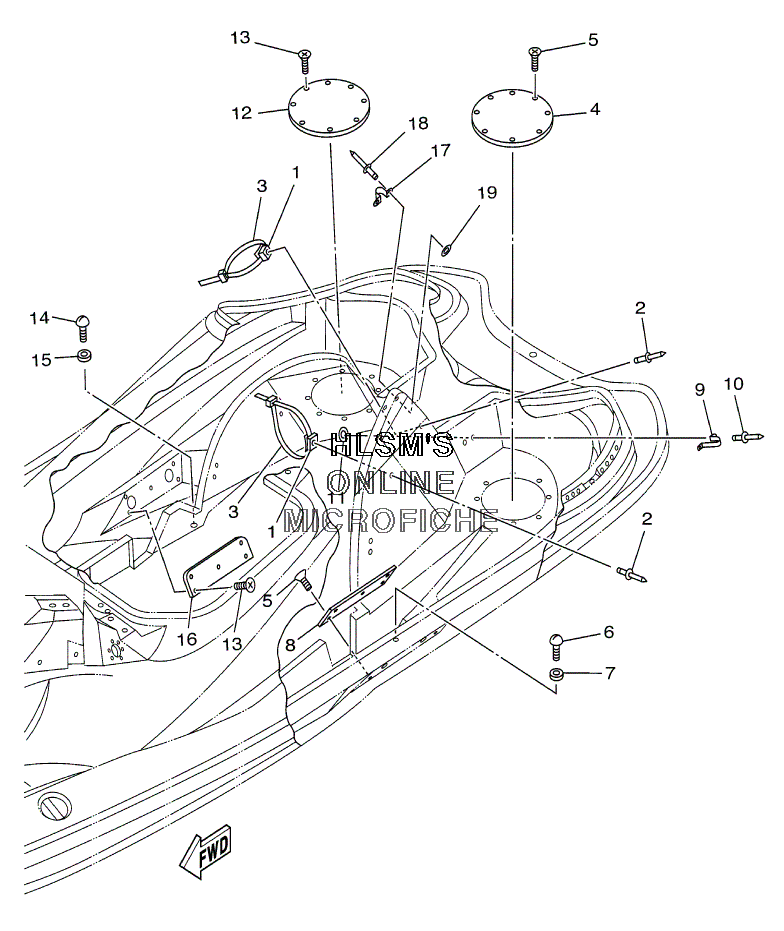

STERN LOCKER для Yamaha SV 1200A - 2002 года выпуска
-
№АртикулНазвание
-
190600-917U4-00 CLAMP COMPCLAMP COMP
-
290267-48802-00 RIVET, BLINDRIVET, BLIND
-
390464-32801-00 CLAMPCLAMP
-
4GU5-U7861-00-00 COVER INSPECTIONCOVER INSPECTION
-
597780-40712-00 SCREW, TAPPINGSCREW, TAPPING
-
690149-10900-00 SCREWSCREW
-
7F0D-6515E-00-00 DAMPER 2DAMPER 2
-
8GU5-65784-00-00 COVER INSPECTIONCOVER INSPECTION
-
9GU5-U6319-00-00 EYE STRAPEYE STRAP
-
1090267-40803-00 RIVET, BLINDRIVET, BLIND
-
1192990-04200-00 WASHER, PLAINWASHER, PLAIN
-
12GU5-U7861-00-00 COVER INSPECTIONCOVER INSPECTION
-
1397780-40712-00 SCREW, TAPPINGSCREW, TAPPING
-
1490149-10900-00 SCREWSCREW
-
15F0D-6515E-00-00 DAMPER 2DAMPER 2
-
16GU5-65784-00-00 COVER INSPECTIONCOVER INSPECTION
-
17GU5-U6319-00-00 EYE STRAPEYE STRAP
-
1890267-40803-00 RIVET, BLINDRIVET, BLIND
-
1992990-04200-00 WASHER, PLAINWASHER, PLAIN
