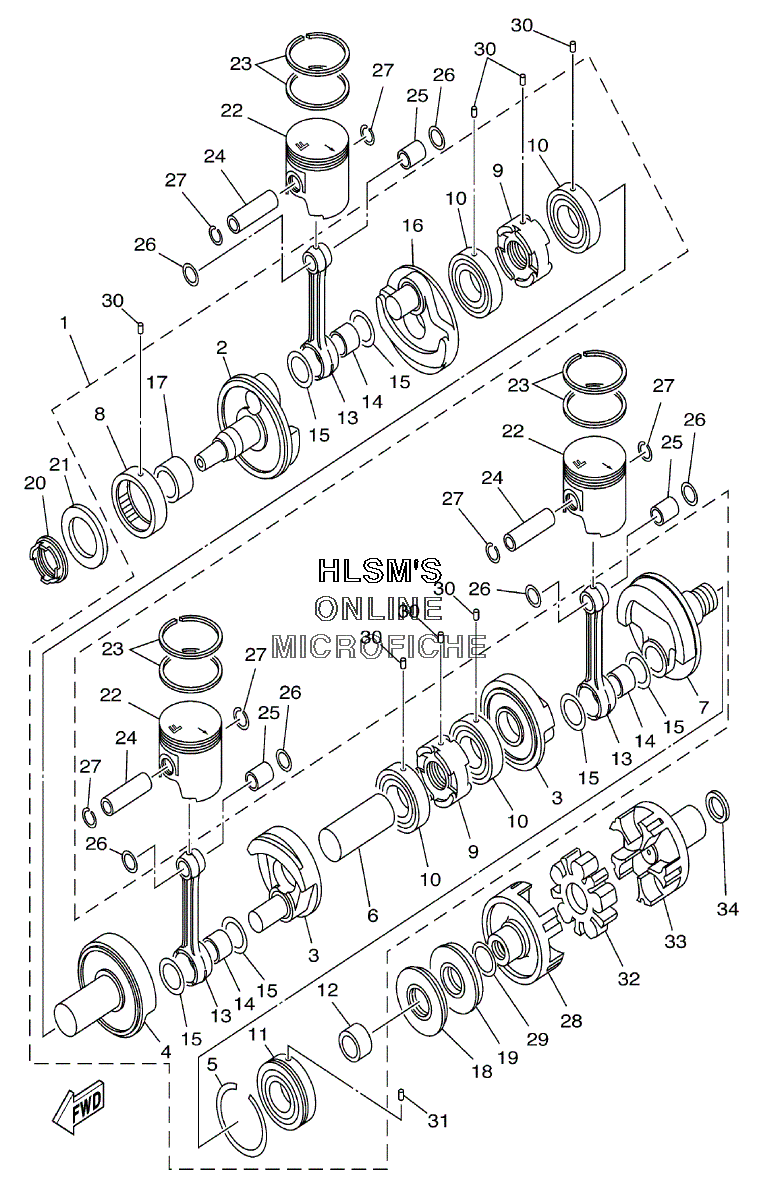

CRANKSHAFT W/ PISTON для Yamaha SV 1200A - 2002 года выпуска`
-
№АртикулНазвание
-
165U-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
26M6-11412-00-00 ...CRANK 1...CRANK 1
-
36M6-11422-00-00 ...CRANK 2...CRANK 2
-
463M-11452-00-00 ...CRANK 5...CRANK 5
-
593440-80023-00 ...CIRCLIP...CIRCLIP
-
66M6-11431-10-00 ...CRANK 3...CRANK 3
-
76M6-11442-01-00 ...CRANK 4...CRANK 4
-
893390-000U4-00 ...BEARING...BEARING
-
965U-11515-00-00 ...SEAL, LABYRINTH 1...SEAL, LABYRINTH 1
-
1093306-207U2-00 ...BEARING...BEARING
-
1193306-307U3-00 ...BEARING...BEARING
-
1262T-45526-00-00 ...COLLAR, DRIVE SHAFT...COLLAR, DRIVE SHAFT
-
1364X-11651-01-00 ...ROD, CONNECTING...ROD, CONNECTING
-
1493310-525U4-00 ...BEARING...BEARING
-
1582M-11685-00-00 ...WASHER, CRANK PIN...WASHER, CRANK PIN
-
1665U-11422-00-00 ...CRANK 2...CRANK 2
-
1790387-32M02-00 ...COLLAR...COLLAR
-
1893102-36M33-00 ...OIL SEAL...OIL SEAL
-
1993101-36M46-00 ...OIL SEAL...OIL SEAL
-
2093103-32M01-00 ...OIL SEAL...OIL SEAL
-
2165U-11445-00-00 SPACERSPACER
-
2265U-11631-02-90 PISTON (STANDARD)PISTON (STANDARD)
-
2265U-11635-02-00 PISTON (0.25MM O/S)(OPT)PISTON (0.25MM O/S)(OPT)
-
2265U-11636-02-00 PISTON (0.50MM O/S)(OPT)PISTON (0.50MM O/S)(OPT)
-
2365U-11603-01-00 PISTON RING SET (STANDARD)PISTON RING SET (STANDARD)
-
2365U-11604-01-00 PISTON RING SET (0.25MM O/S)(OPT)PISTON RING SET (0.25MM O/S)(OPT)
-
2365U-11605-01-00 PISTON RING SET (0.50MM O/S)(OPT)PISTON RING SET (0.50MM O/S)(OPT)
-
2462T-11633-00-00 PIN, PISTONPIN, PISTON
-
2593310-320U2-00 BEARINGBEARING
-
2690201-20M04-00 WASHER, PLATEWASHER, PLATE
-
2793450-21053-00 CIRCLIPCIRCLIP
-
2863M-45813-01-8P FLANGE, COUPLINGFLANGE, COUPLING
-
2962T-45127-00-00 ...SEAL...SEAL
-
3093603-10049-00 ...PIN, DOWEL...PIN, DOWEL
-
3193604-07141-00 PIN, DOWELPIN, DOWEL
-
3263M-4581J-00-00 RUBBER SHAFT COUPLINGRUBBER SHAFT COUPLING
-
3364X-45813-00-8P FLANGE, COUPLINGFLANGE, COUPLING
-
3490201-248M5-00 WASHER, PLATEWASHER, PLATE
