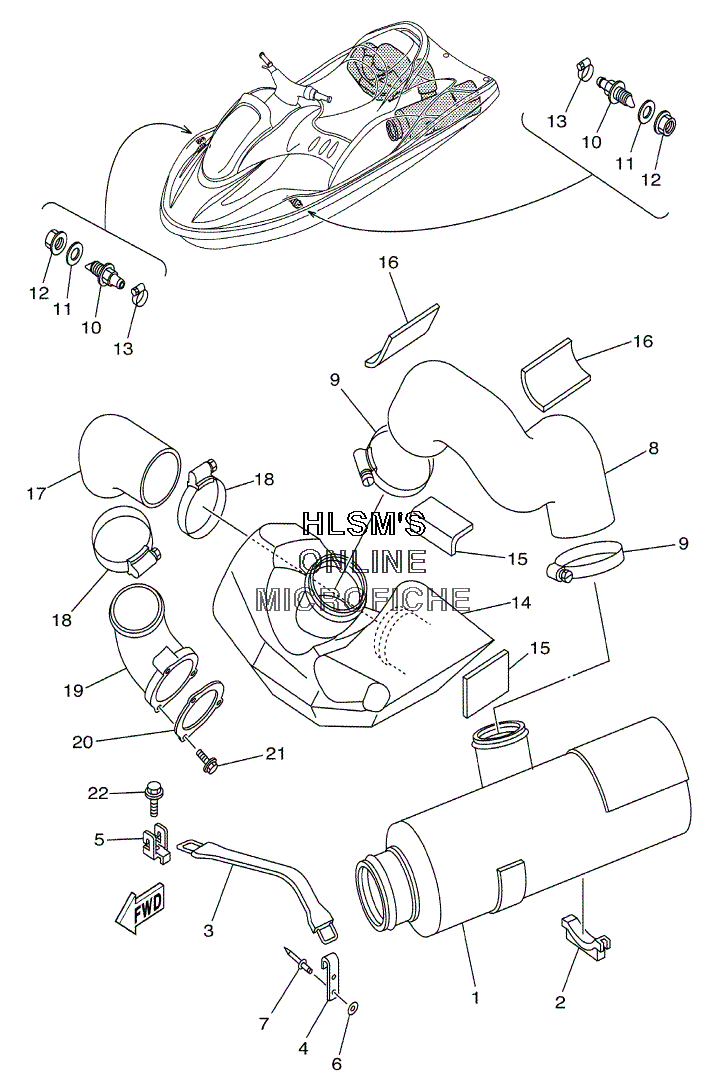

EXHAUST - WATER BOX для Yamaha GP 1200 A - 2002 года выпуска
-
№АртикулНазвание
-
1F0X-67550-02-00 WATER LOCK COMPWATER LOCK COMP
-
2F0X-6755J-00-00 MAT, WATER LOCKMAT, WATER LOCK
-
3EU0-U821D-00-00 BAND, BATTERY 2BAND, BATTERY 2
-
4GA7-65772-00-00 HOOK AHOOK A
-
5EW2-U5772-00-00 HOOK AHOOK A
-
69299R-05200-00 WASHERWASHER
-
790267-489U9-00 RIVET, BLINDRIVET, BLIND
-
8F0X-U7555-00-00 HOSE, EXHAUSTHOSE, EXHAUST
-
990450-99801-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
10F0X-6753B-00-00 PILOT, WATERPILOT, WATER
-
1190430-16910-00 GASKETGASKET
-
12F0X-62733-00-00 NUTNUT
-
1390601-118UF-00 BAND, HOSE 8BAND, HOSE 8
-
14F0X-64261-02-00 TANK, WATERTANK, WATER
-
15GP8-6755J-00-00 MAT, WATER LOCKMAT, WATER LOCK
-
16GU0-67593-00-00 MATMAT
-
17F0X-U758C-00-00 HOSE, EXHAUS 2HOSE, EXHAUS 2
-
1890601-195UD-00 BAND, HOSE 5BAND, HOSE 5
-
19F0D-67565-01-00 THRU-HULL, EXHAUSTTHRU-HULL, EXHAUST
-
20F0D-U7525-01-00 PACKINGPACKING
-
2190119-069UK-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2290119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
