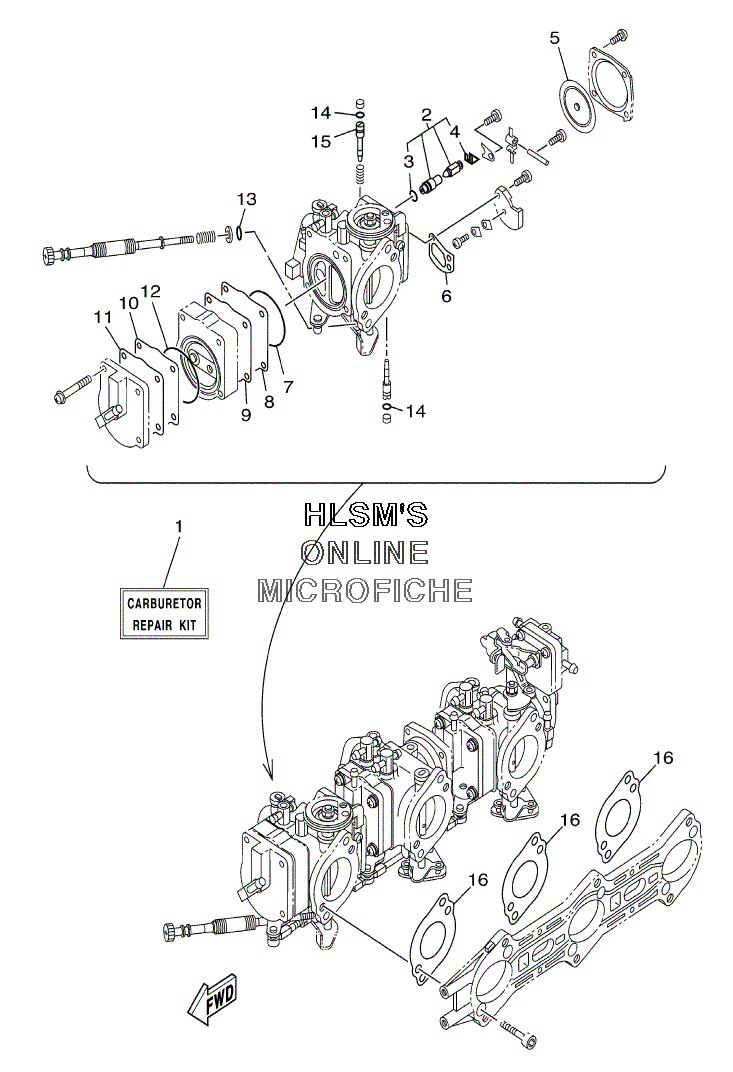

CARBURETOR REPAIR KIT для Yamaha GP 1200 A - 2002 года выпуска`
-
№АртикулНазвание
-
166V-W0093-01-00 CARBURETOR REPAIR KITCARBURETOR REPAIR KIT
-
264T-14916-00-00 ......NEEDLE......NEEDLE
-
38F2-14147-00-00 ......O-RING......O-RING
-
47EG-14159-00-00 ......CLIP......CLIP
-
56R7-14541-00-00 ......DIAPHRAGM, PUMP......DIAPHRAGM, PUMP
-
66K8-14536-11-00 ......GASKET......GASKET
-
766E-14563-01-00 ......O-RING......O-RING
-
866E-24471-00-00 ......DIAPHRAGM......DIAPHRAGM
-
966E-24411-00-00 ......DIAPHRAGM......DIAPHRAGM
-
1066E-24421-00-00 ......VALVE, CHECK......VALVE, CHECK
-
1166E-24431-00-00 ......GASKET, FUEL PUMP 1......GASKET, FUEL PUMP 1
-
1266E-14564-01-00 ......O-RING......O-RING
-
13812-14147-00-00 ......O-RING......O-RING
-
1493210-03119-00 ......O-RING......O-RING
-
1566V-14946-00-00 ......PLATE, NEEDLE FITTING......PLATE, NEEDLE FITTING
-
1666E-14398-00-00 ......GASKET......GASKET
Все узлы модели:
- AIR SILENCER W/ INTAKE
- BUMBER W/ GUNWALE MAT
- CARBURETOR
- • CARBURETOR REPAIR KIT
- CONTROL CABLES
- CRANKSHAFT W/ PISTON
- CYLINDER W/ CRANKCASE 1
- CYLINDER W/ CRANKCASE 2
- ELECTRICAL 1
- ELECTRICAL 2
- ENGINE - PROPULSION GASKET KIT
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL LINES
- FUEL TANK
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL FITTINGS W/ SPONSONS
- MODEL INFO - MANUALS
- OIL PUMP
- OIL TANK
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- SEAT
- SIDE COVERS
- STARTING MOTOR
- VENTILATION
