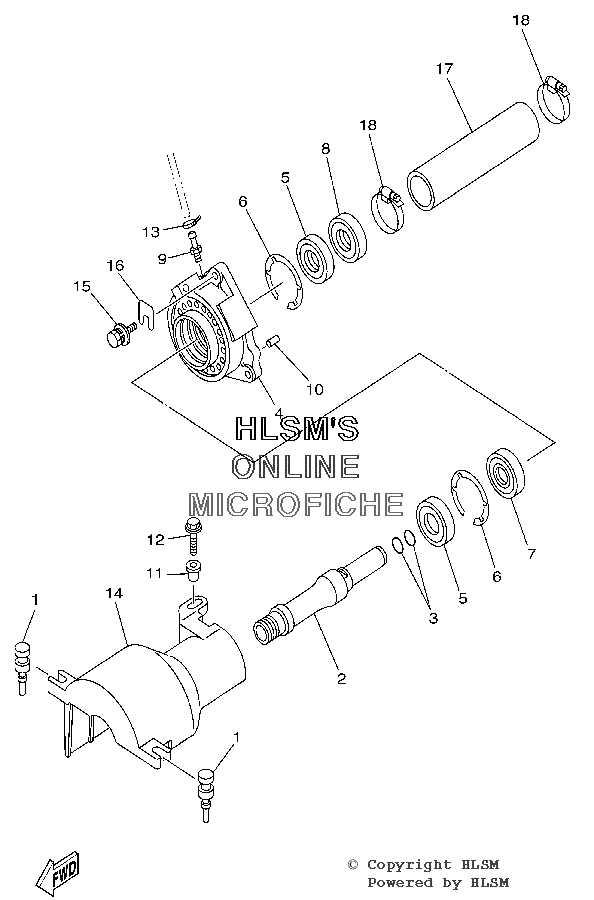

PROPULSION SYSTEM - INTERNAL для Yamaha XL 800 Z - 2001 года выпуска
-
№АртикулНазвание
-
190480-06M46-00 GROMMETGROMMET
-
266V-51323-01-00 SHAFT, COUPLORSHAFT, COUPLOR
-
393210-19MJ4-00 O-RINGO-RING
-
461X-45332-03-94 HOUSING, BEARINGHOUSING, BEARING
-
593101-25M55-00 OIL SEALOIL SEAL
-
693430-47M04-00 CIRCLIPCIRCLIP
-
793306-205U6-00 BEARINGBEARING
-
893101-25M56-00 OIL SEALOIL SEAL
-
961L-45378-00-00 NIPPLE, HOSENIPPLE, HOSE
-
1093606-12019-00 PIN, DOWELPIN, DOWEL
-
1190387-06M60-00 COLLARCOLLAR
-
1290119-069UD-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
1390465-11829-00 CLAMP (YMUS)CLAMP (YMUS)
-
1467A-R1381-00-00 COVER (YMUS)COVER (YMUS)
-
1590119-089UL-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
16GD0-U7249-00-05 SHIM (T=0.5) (UR YMUS)SHIM (T=0.5) (UR YMUS)
-
16GD0-U7249-00-10 SHIM (T=1.0) (UR YMUS)SHIM (T=1.0) (UR YMUS)
-
17F0D-U883B-01-00 PIPE, 1 (YMUS)PIPE, 1 (YMUS)
-
1890601-152U3-00 BAND, HOSE 2 (YMUS)BAND, HOSE 2 (YMUS)
