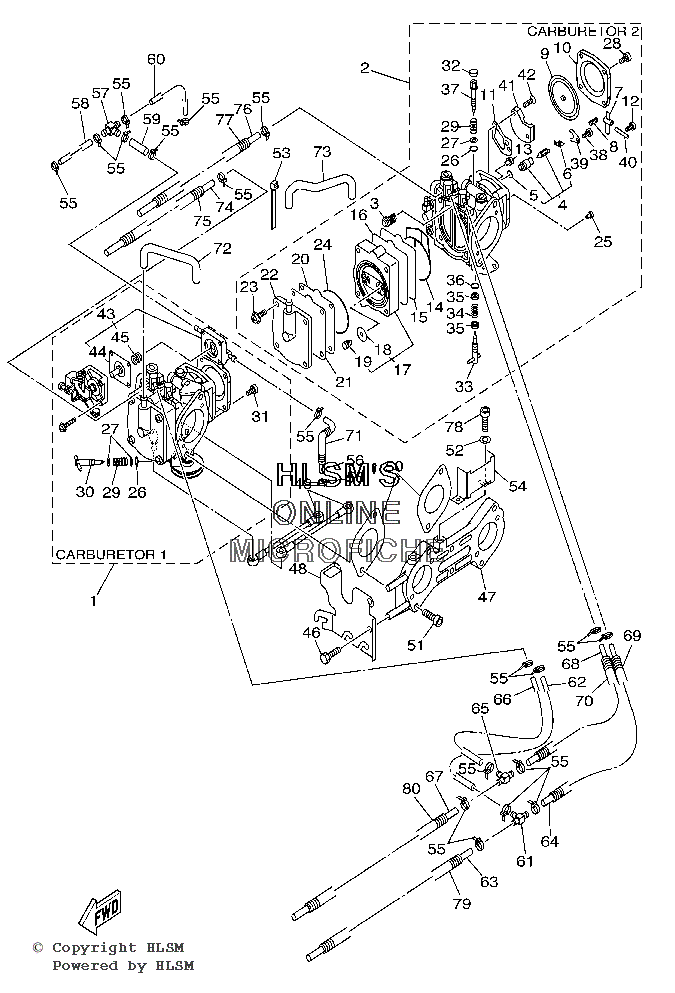

CARBURETOR для Yamaha XL 800 Z - 2001 года выпуска`
-
№АртикулНазвание
-
167A-14301-01-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
267A-14302-01-00 CARBURETOR ASSY 2CARBURETOR ASSY 2
-
36R7-14569-00-00 ...STRAINER...STRAINER
-
464T-14916-00-00 ...NEEDLE...NEEDLE
-
58F2-14147-00-00 ......O-RING......O-RING
-
67EG-14159-00-00 ......CLIP......CLIP
-
76K8-14547-01-00 ...ARM, FLOAT...ARM, FLOAT
-
86R7-14253-00-00 ...SPRING...SPRING
-
96R7-14541-00-00 ...DIAPHRAGM, PUMP...DIAPHRAGM, PUMP
-
106R7-14542-00-00 ...BODY, PUMP 1 (CARBURETOR 1)...BODY, PUMP 1 (CARBURETOR 1)
-
116K8-14536-11-00 ...GASKET...GASKET
-
126K8-14503-02-00 ...SCREW...SCREW
-
133G2-14231-30-00 ...JET, MAIN (150) (CARBURETOR 1)...JET, MAIN (150) (CARBURETOR 1)
-
133G2-14231-30-00 ...JET, MAIN (150) (CARBURETOR 2)...JET, MAIN (150) (CARBURETOR 2)
-
1466E-14563-01-00 ...O-RING...O-RING
-
1566E-24471-00-00 ...DIAPHRAGM...DIAPHRAGM
-
1666E-24411-00-00 ...DIAPHRAGM...DIAPHRAGM
-
1766E-24413-01-00 ...BODY 2...BODY 2
-
1866E-24362-00-00 ......VALVE, CHECK 1......VALVE, CHECK 1
-
1965U-24492-00-00 ......BUSH, FUEL PUMP......BUSH, FUEL PUMP
-
2066E-24421-00-00 ...VALVE, CHECK...VALVE, CHECK
-
2166E-24431-00-00 ...GASKET, FUEL PUMP 1...GASKET, FUEL PUMP 1
-
2266E-24452-00-00 ...COVER...COVER
-
2390157-05M17-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2466E-14564-01-00 ...O-RING...O-RING
-
25830-14231-18-00 ...JET, MAIN ( 90)...JET, MAIN ( 90)
-
26812-14147-00-00 ...O-RING...O-RING
-
27812-14235-00-00 ...WASHER, NEEDLE...WASHER, NEEDLE
-
2897880-05010-00 ...SCREW, PAN HEAD (CARBURETOR 2)....SCREW, PAN HEAD (CARBURETOR 2).
-
293KW-14932-00-00 ...SPRING, THROTTLE 2...SPRING, THROTTLE 2
-
3066E-14521-00-00 ...SCREW, ADJUST (CARBURETOR 1)....SCREW, ADJUST (CARBURETOR 1).
-
3197890-05014-00 ...SCREW, PAN HEAD (CARBURETOR 1)...SCREW, PAN HEAD (CARBURETOR 1)
-
326K8-14471-10-00 ...CAP, CARBURETOR...CAP, CARBURETOR
-
3366E-14211-00-00 ...SCREW, PILOT ADJUSTING...SCREW, PILOT ADJUSTING
-
346K8-14589-00-00 ...SPRING...SPRING
-
35822-14235-00-00 ...WASHER, NEEDLE...WASHER, NEEDLE
-
36583-14561-00-00 ...O-RING...O-RING
-
376K8-14946-10-00 ...METERING NEEDLE...METERING NEEDLE
-
386M6-14503-00-00 ...SCREW...SCREW
-
396K8-14527-11-00 ...PLATE...PLATE
-
40439-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
4166E-24412-00-00 ...BODY 1...BODY 1
-
426K8-14523-11-00 ...SCREW, STOP...SCREW, STOP
-
4366E-14280-00-00 ...COVER, CARBURETOR (CARBURETOR 1)...COVER, CARBURETOR (CARBURETOR 1)
-
4466E-14170-00-00 ......DIAPHRAGM ASSY (CARBURETOR 1).......DIAPHRAGM ASSY (CARBURETOR 1).
-
4566E-14286-00-00 ......SPRING (CARBURETOR 1)......SPRING (CARBURETOR 1)
-
4690101-06M25-00 BOLTBOLT
-
4766E-14243-00-00 PLATEPLATE
-
4866E-14291-00-00 BRACKET 1BRACKET 1
-
4966E-41217-00-00 ROD, ACCEL LEVERROD, ACCEL LEVER
-
5066E-14398-00-00 GASKETGASKET
-
5166E-14162-01-00 BOLT, HOLDINGBOLT, HOLDING
-
5290204-06M01-00 WASHER, SPRINGWASHER, SPRING
-
534KM-14137-00-00 CLIPCLIP
-
5466E-14146-00-00 PLATEPLATE
-
5535H-14139-00-00 CLIP, PIPE 2CLIP, PIPE 2
-
563XP-14294-00-00 HOSEHOSE
-
574N0-14251-00-00 NIPPLENIPPLE
-
5890445-07M78-00 HOSEHOSE
-
5990445-07M42-00 HOSEHOSE
-
6090445-07M79-00 HOSEHOSE
-
6166E-14251-00-00 NIPPLENIPPLE
-
6290445-10MH0-00 HOSEHOSE
-
6367A-14294-00-00 HOSEHOSE
-
6490445-10MH2-00 HOSEHOSE
-
6566E-14251-00-00 NIPPLENIPPLE
-
6690445-10MH3-00 HOSEHOSE
-
6767A-14298-00-00 PIPEPIPE
-
6890445-10MH5-00 HOSEHOSE
-
6990446-14M98-00 HOSEHOSE
-
7090446-14M99-00 HOSEHOSE
-
7190446-10MA2-00 HOSEHOSE
-
7266E-24314-00-00 PIPE 4PIPE 4
-
7366E-24315-00-00 PIPE 5PIPE 5
-
7490446-07M96-00 HOSEHOSE
-
7590446-10MA0-00 HOSEHOSE
-
7690446-07M97-00 HOSEHOSE
-
7790446-10MA1-00 HOSEHOSE
-
7866E-14162-00-00 BOLT, HOLDINGBOLT, HOLDING
-
7990446-17ME5-00 HOSEHOSE
-
8090446-17MA7-00 HOSEHOSE
