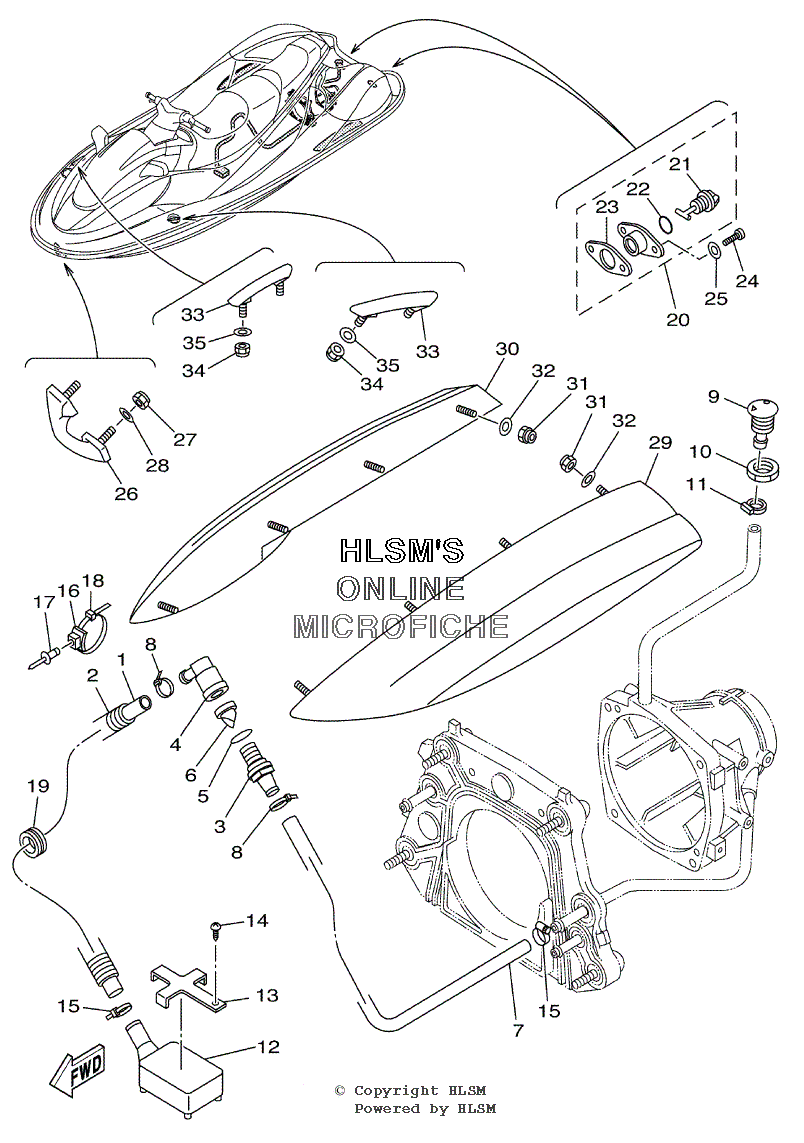

HULL-DECK 1 для Yamaha SUV 1200 Z - 2001 года выпуска
-
№АртикулНазвание
-
190445-19M12-00 HOSE (L720)HOSE (L720)
-
290446-27MA4-00 HOSEHOSE
-
363M-51162-00-00 JOINT, HOSEJOINT, HOSE
-
463M-51165-00-00 JOINT HOSE 2JOINT HOSE 2
-
593210-22ME5-00 O-RINGO-RING
-
663M-5316M-00-00 VALVE 1VALVE 1
-
790445-19M09-00 HOSE (L550)HOSE (L550)
-
890465-13M11-00 CLAMPCLAMP
-
9FN8-6269B-00-00 SPOUTSPOUT
-
10EU0-61652-00-00 NUTNUT
-
1190600-91755-00 CLIPCLIP
-
12GD0-U761D-00-00 STRAINER, BILGESTRAINER, BILGE
-
13FJ0-67618-00-00 BASEBASE
-
149778R-50112-00 SCREW, TAPPINGSCREW, TAPPING
-
1590601-200U1-00 BANDBAND
-
1690600-917U4-00 CLAMP COMP.CLAMP COMP.
-
1790267-489UE-00 RIVET, BLINDRIVET, BLIND
-
1890464-32801-00 CLAMPCLAMP
-
1990480-329U2-00 GROMMETGROMMET
-
20EU0-62280-00-00 DRAIN PLUG ASSYDRAIN PLUG ASSY
-
21EU0-62282-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
22EU0-62283-00-00 ...O-RING...O-RING
-
23EU0-62285-01-00 ...PACKING DRAIN (EU0)...PACKING DRAIN (EU0)
-
2497780-50520-00 SCREW, TAPPINGSCREW, TAPPING
-
259299R-05200-00 WASHERWASHER
-
26GU5-61624-00-00 BOWEYE 1 (S)BOWEYE 1 (S)
-
279572R-08300-00 NUT, FLANGENUT, FLANGE
-
2890201-08800-00 WASHER, PLATEWASHER, PLATE
-
29GU5-6883N-00-00 STABILIZER LHSTABILIZER LH
-
30GU5-6883P-00-00 STABILIZER RHSTABILIZER RH
-
319572R-06300-00 NUT, FLANGENUT, FLANGE
-
3290201-06808-00 WASHER, PLATEWASHER, PLATE
-
33GU5-61685-01-00 DECK EYEDECK EYE
-
349572R-08300-00 NUT, FLANGENUT, FLANGE
-
359299R-08200-00 WASHERWASHER
