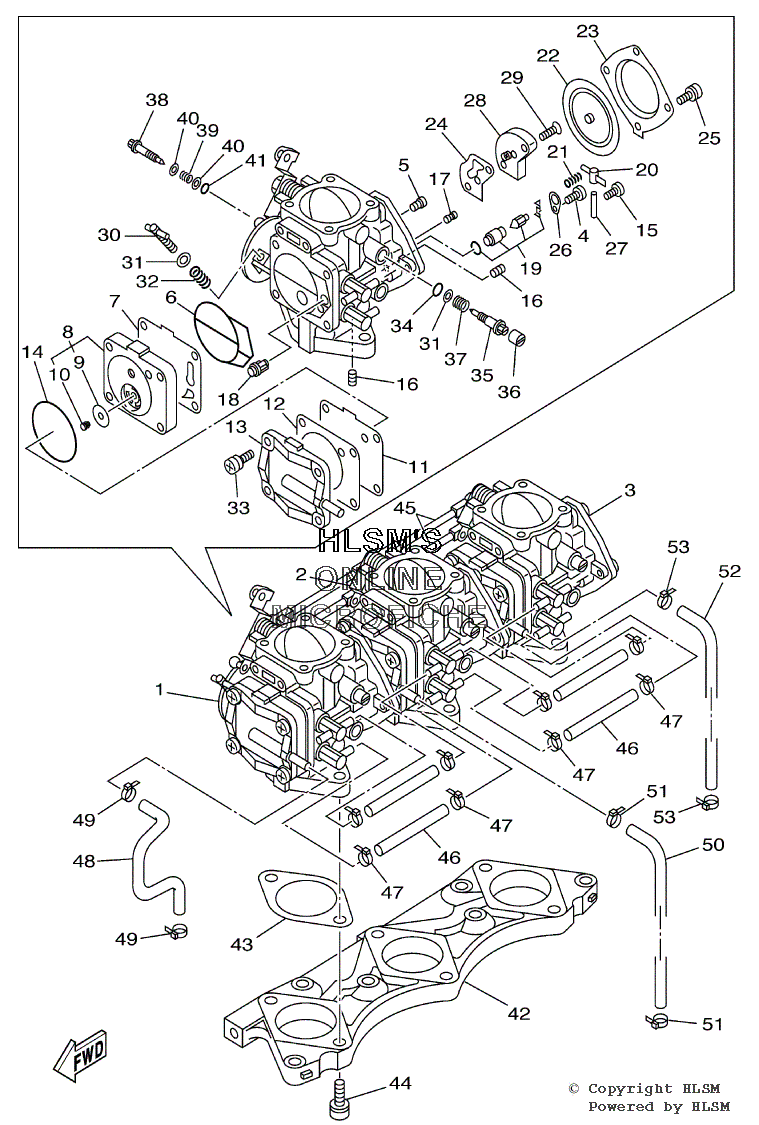

CARBURETOR для Yamaha SUV 1200 Z - 2001 года выпуска`
-
№АртикулНазвание
-
166G-14301-01-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
266G-14302-01-00 CARBURETOR ASSY 2CARBURETOR ASSY 2
-
366G-14303-01-00 CARBURETOR ASSY 3CARBURETOR ASSY 3
-
46M6-14503-00-00 ...SCREW...SCREW
-
53G2-14231-27-00 ...JET, MAIN (135)...JET, MAIN (135)
-
66K8-14564-00-00 ...O-RING...O-RING
-
76K8-24411-20-00 ...DIAPHRAGM...DIAPHRAGM
-
86M6-24413-01-00 ...BODY 2...BODY 2
-
965U-24421-00-00 VALVE, CHECKVALVE, CHECK
-
1065U-24492-00-00 BUSH, FUEL PUMPBUSH, FUEL PUMP
-
116K8-24421-10-00 ...VALVE, CHECK...VALVE, CHECK
-
126K8-24431-20-00 ...GASKET, FUEL PUMP 1...GASKET, FUEL PUMP 1
-
136K8-24452-10-00 ...COVER...COVER
-
146K8-14563-00-00 ...O-RING...O-RING
-
156K8-14503-02-00 ...SCREW...SCREW
-
166K8-14521-10-00 ...SCREW...SCREW
-
17830-14231-19-00 ...JET, MAIN ( 95) (CARBURETOR 2) (UR)...JET, MAIN ( 95) (CARBURETOR 2) (UR)
-
17830-14231-20-00 ...JET, MAIN (100) (CARBURETOR 1) (UR)...JET, MAIN (100) (CARBURETOR 1) (UR)
-
17830-1423A-70-00 ...JET, MAIN (97.5) (CARBURETOR 3) (UR)...JET, MAIN (97.5) (CARBURETOR 3) (UR)
-
186R7-14569-00-00 ...STRAINER...STRAINER
-
1964T-14916-00-00 ...NEEDLE...NEEDLE
-
206K8-14547-01-00 ...ARM, FLOAT...ARM, FLOAT
-
2163M-14253-00-00 ...SPRING...SPRING
-
226R7-14541-00-00 ...DIAPHRAGM, PUMP...DIAPHRAGM, PUMP
-
236R7-14542-00-00 ...BODY, PUMP 1...BODY, PUMP 1
-
246K8-14536-11-00 ...GASKET...GASKET
-
256K8-14591-10-00 ...SCREW...SCREW
-
266K8-14527-11-00 ...PLATE...PLATE
-
27439-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
286R7-24412-01-00 ...BODY 1...BODY 1
-
296K8-14523-11-00 ...SCREW, STOP...SCREW, STOP
-
306M6-14521-01-00 ...SCREW, ADJUST (CARBURETOR 1)...SCREW, ADJUST (CARBURETOR 1)
-
31812-14235-00-00 ...WASHER, NEEDLE...WASHER, NEEDLE
-
3247X-14133-00-00 ...SPRING, THROTTLE STOP (CARBURETOR 1)...SPRING, THROTTLE STOP (CARBURETOR 1)
-
3397980-05330-00 ...SCREW, WITH WASHER...SCREW, WITH WASHER
-
34812-14147-00-00 ...O-RING...O-RING
-
356K8-14946-10-00 ...METERING NEEDLE...METERING NEEDLE
-
366K8-14471-10-00 ...CAP, CARBURETOR...CAP, CARBURETOR
-
373KW-14932-00-00 ...SPRING, THROTTLE 2...SPRING, THROTTLE 2
-
3865U-14923-10-00 ...SCREW, PILOT...SCREW, PILOT
-
396K8-14589-00-00 ...SPRING...SPRING
-
40822-14235-00-00 ...WASHER, NEEDLE...WASHER, NEEDLE
-
41583-14561-00-00 ...O-RING...O-RING
-
4265U-14243-00-00 PLATEPLATE
-
4364X-14398-00-00 GASKETGASKET
-
4464X-14162-00-00 BOLT, HOLDINGBOLT, HOLDING
-
4565U-41217-00-00 ROD, ACCEL LEVERROD, ACCEL LEVER
-
4690445-11M64-00 HOSE (L105)HOSE (L105)
-
4790465-11M10-00 CLAMPCLAMP
-
4865U-24315-01-00 PIPE 5PIPE 5
-
4990465-11M10-00 CLAMPCLAMP
-
5065U-24314-01-00 PIPE 4PIPE 4
-
5190465-11M10-00 CLAMPCLAMP
-
5265U-24314-01-00 PIPE 4PIPE 4
-
5390465-11M10-00 CLAMPCLAMP
