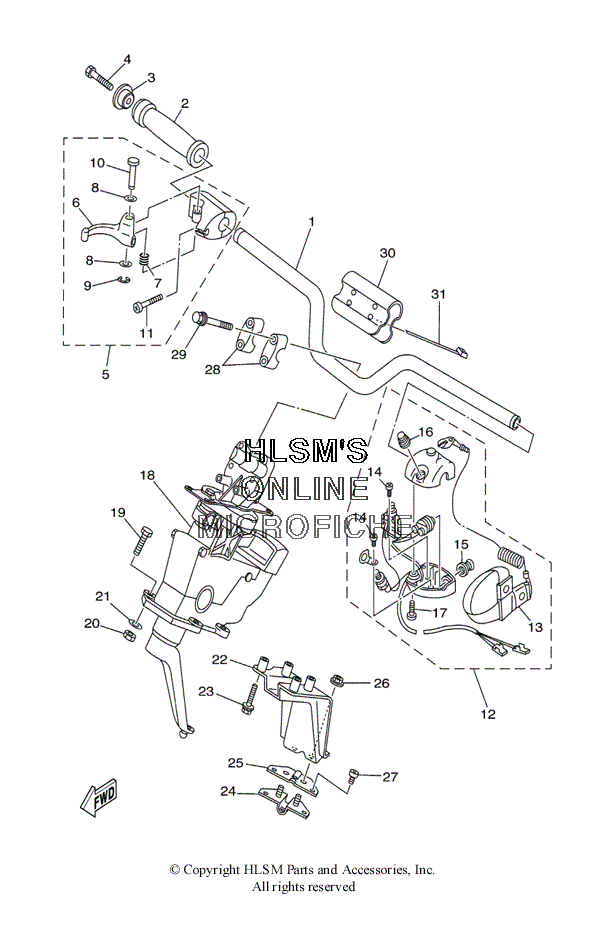

HANDLEBAR W/ CONTROLS - STEERING COLUMN для Yamaha SUV 1200 Y - 2000 года выпуска`
-
№АртикулНазвание
-
1F0D-U1552-00-00 HANDLE (YMUS)HANDLE (YMUS)
-
2GP7-U155D-00-00 GRIP, HANDLE (YMUS)GRIP, HANDLE (YMUS)
-
3GP7-U155F-00-00 GRIP, END (YMUS)GRIP, END (YMUS)
-
490110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5F0D-67250-02-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
6F0D-67255-00-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
7EW2-67256-00-00 ...SPRING...SPRING
-
8EW2-67258-01-00 ...WASHER...WASHER
-
9EW2-67259-01-00 ...E RING...E RING
-
10F0D-67257-00-00 ...SHAFT...SHAFT
-
1198500-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
12GP7-68310-00-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
13EW2-68348-00-00 ...LANYARD, STOP SWITCH...LANYARD, STOP SWITCH
-
1497880-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
15FK7-68312-02-00 ...STOP BUTTON COMP...STOP BUTTON COMP
-
16FK7-68313-01-00 ...START BUTTON COMP...START BUTTON COMP
-
1797880-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
18GU5-61400-01-00 STEERING MASTER ASSYSTEERING MASTER ASSY
-
1997080-08035-00 BOLTBOLT
-
209572R-08300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
219299R-08200-00 WASHER, M8 FLAT (YMUS)WASHER, M8 FLAT (YMUS)
-
22GU5-61467-01-00 BRACKET, STOPPER CABLEBRACKET, STOPPER CABLE
-
2390119-06964-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
24GU5-61468-00-00 STOPPER, CABLESTOPPER, CABLE
-
25GU5-6146K-00-00 HOLDER, STOPPERHOLDER, STOPPER
-
269572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
2798580-04506-00 SCREW, PAN HEADSCREW, PAN HEAD
-
28EU0-23814-30-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
2990119-089UU-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
30GU5-6156E-00-00 PAD 1PAD 1
-
3190601-200U2-00 BAND (YMUS)BAND (YMUS)
