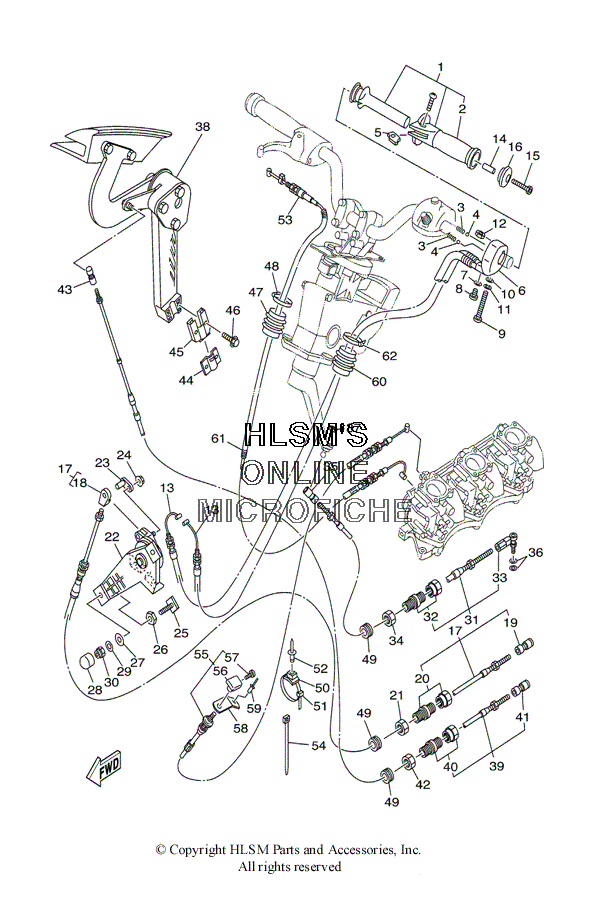

CONTROL CABLES для Yamaha SUV 1200 Y - 2000 года выпуска
-
№АртикулНазвание
-
1GP7-U157A-00-00 GRIP HANDLE ASSY. (YMUS)GRIP HANDLE ASSY. (YMUS)
-
2GP7-U155C-00-00 ...GRIP, HANDLE (YMUS)...GRIP, HANDLE (YMUS)
-
3GP7-U152P-00-00 SPRING (YMUS)SPRING (YMUS)
-
4GP7-U152R-00-00 BALL (YMUS)BALL (YMUS)
-
5GP7-U151M-00-00 LEVER ASSY (YMUS)LEVER ASSY (YMUS)
-
6GP7-U152M-00-00 HOUSING ASSY (YMUS)HOUSING ASSY (YMUS)
-
792990-04600-00 WASHER, PLATEWASHER, PLATE
-
898980-04010-00 SCREW, BINDSCREW, BIND
-
997880-06065-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1092990-06600-00 WASHER, PLATEWASHER, PLATE
-
119299R-06100-00 WASHER (YMUS)WASHER (YMUS)
-
12GH1-U143B-00-00 NUT, SPECIAL (YMUS)NUT, SPECIAL (YMUS)
-
13F0D-U153D-00-00 CABLE, NOZZLE CONTROL 2 (YMUS)CABLE, NOZZLE CONTROL 2 (YMUS)
-
1490387-05800-00 COLLAR (YMUS)COLLAR (YMUS)
-
1590110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
16GP7-U155F-00-00 GRIP, END (YMUS)GRIP, END (YMUS)
-
17GU5-U153E-00-00 CABLE, NOZZLE CONTROL 3 (YMUS)CABLE, NOZZLE CONTROL 3 (YMUS)
-
18GH1-U046C-00-00 ...END, CABLE (YMUS)...END, CABLE (YMUS)
-
19EU0-U1461-30-00 ...JOINT, BALL (YMUS)...JOINT, BALL (YMUS)
-
20EU0-67267-10-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
21EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
22F0D-U153J-00-00 REMOCON, NOZZLE 2 (YMUS)REMOCON, NOZZLE 2 (YMUS)
-
23F0D-U152C-00-00 PIN (YMUS)PIN (YMUS)
-
249578R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
2590109-06907-00 BOLTBOLT
-
2690179-06977-00 NUTNUT
-
2790201-06906-00 WASHER, PLATEWASHER, PLATE
-
2890190-06010-00 CLINGCLING
-
299299R-06200-00 WASHER (YMUS)WASHER (YMUS)
-
309578R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
31GU5-U1481-00-00 CABLE, STEERING (YMUS)CABLE, STEERING (YMUS)
-
32GK5-67267-10-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
33GP8-U1461-T0-00 ...STUD, JOINT BALL (YMUS)...STUD, JOINT BALL (YMUS)
-
34EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
35GK5-U146F-00-00 SHAFT, JOINT BALL (YMUS)SHAFT, JOINT BALL (YMUS)
-
3690201-06906-00 WASHER, PLATEWASHER, PLATE
-
3795380-06700-00 NUTNUT
-
38F0D-6134A-02-00 REMOCON. LEVER ASSY.REMOCON. LEVER ASSY.
-
39GU5-U149C-00-00 CABLE, REVERSE (YMUS)CABLE, REVERSE (YMUS)
-
40EU0-67267-10-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
41EU0-U1461-30-00 ...JOINT, BALL (YMUS)...JOINT, BALL (YMUS)
-
42EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
43EU0-U1461-30-00 JOINT, BALL (YMUS)JOINT, BALL (YMUS)
-
44GH1-61468-01-00 STOPPER, CABLESTOPPER, CABLE
-
45GU5-6146K-10-00 HOLDER, STOPPERHOLDER, STOPPER
-
4690119-069UJ-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
47GU5-6822E-00-00 GROMMETGROMMET
-
4890601-200U1-00 CLAMP, CABLE (TIEWRAP 6") (YMUS)CLAMP, CABLE (TIEWRAP 6") (YMUS)
-
4990480-279U1-00 GROMMET (YMUS)GROMMET (YMUS)
-
5090600-917U4-00 CLAMP COMP. (YMUS)CLAMP COMP. (YMUS)
-
5190464-32801-00 CLAMP (YMUS)CLAMP (YMUS)
-
5290267-48802-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
53GU5-U7252-00-00 CABLE, THROTTLE (YMUS)CABLE, THROTTLE (YMUS)
-
5490464-32801-00 CLAMP (YMUS)CLAMP (YMUS)
-
55GU5-67242-01-00 CABLE, CHOKECABLE, CHOKE
-
56EW2-67243-00-00 ...KNOB...KNOB
-
5790149-03930-00 ...SCREW...SCREW
-
58GU5-U824D-00-00 PLATE, CHOKE (YMUS)PLATE, CHOKE (YMUS)
-
5990267-48802-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
60GU5-6822E-00-00 GROMMETGROMMET
-
61F0D-6773E-00-00 TUBE, 2TUBE, 2
-
6290601-200U1-00 CLAMP, CABLE (TIEWRAP 6") (YMUS)CLAMP, CABLE (TIEWRAP 6") (YMUS)
